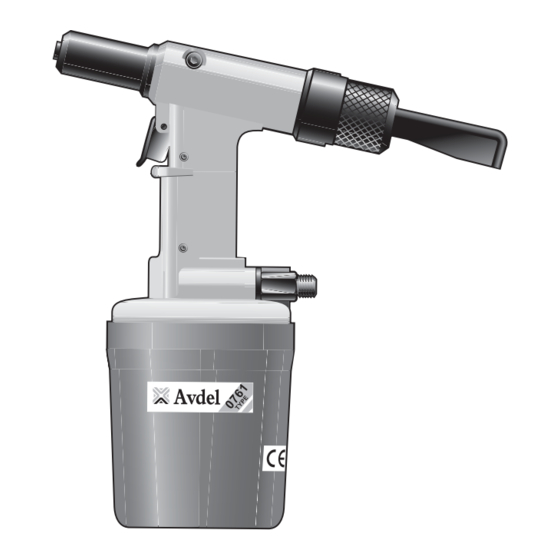

- Page 1 I n s t r u c t i o n M a n u a l Pass onto user to read and keep for reference P n e u m a t i c P o w e r T o o l 0761 type 07611 - 07613 - 07614...
- Page 2 AVDEL policy is one of continuous development. Specifications shown in this document may be subject to changes which may be introduced after publication. For the latest information always consult Avdel. S P E C I F I C A T I O N S F O R 0 7 6 1 T Y P E T O O L ■...
- Page 3 S E R V I C I N G Daily, Weekly Service Kit Total Maintenance 11-13 07611 General Assembly & Parts List 14-15 07613 & 07614 General Assembly & Parts List 16-17 P R I M I N G Oil Details & Priming Procedure F A U L T D I A G N O S I S Symptom, Cause &...
- Page 4 RECOMMENDED AND SUPPLIED BY AVDEL. ANY MODIFICATION UNDERTAKEN BY THE CUSTOMER TO THE TOOL/MACHINE, NOSE ASSEMBLIES, ACCESSORIES OR ANY EQUIPMENT SUPPLIED BY AVDEL OR THEIR REPRESENTATIVES, SHALL BE THE CUSTOMER'S ENTIRE RESPONSIBILITY. AVDEL WILL BE PLEASED TO ADVISE UPON ANY PROPOSED MODIFICATION.
-
Page 5: General
In addition to the general safety rules opposite, the following specific safety points must also be observed: THE OPERATING PRESSURE SHALL NOT EXCEED 7 BAR - 100 LBF/IN DO NOT OPERATE THE TOOL WITHOUT FULL NOSE EQUIPMENT IN PLACE. CARE SHALL BE TAKEN TO ENSURE THAT SPENT STEMS ARE NOT ALLOWED TO CREATE A HAZARD. - Page 6 Throughout this manual we refer to the different models without adding ‘Mk II’ after the model number. It is important to remember that all models describes in this manual are Mk II models and supersede original models. The MK II model for the 07611 start at serial number 400 and at serial number 3001 for the 07613 and 07614 models.
- Page 7 07611 - for AVTAINER fasteners Dimensions shown in bold are millimetres. Other dimensions are in inches. 07613 - for MAXLOK fasteners Dimensions shown in bold are millimetres. Other dimensions are in inches. 07614 - for HEMLOK fasteners Dimensions shown in bold are millimetres.
-
Page 8: Air Supply
DRAIN POINT AND FILTER (DRAIN DAILY) O P E R A T I N G P R O C E D U R E 07611 model for AVTAINER 07613 model for MAXLOK ■ ■ Ensure that the correct nose assembly is fitted. -
Page 9: Accessories
Push the assembly onto the cylinder end plug (item 11 of page 14 to 17). ■ Secure by finger tightening the previously removed adaptor on the 07611 model or the locking ring supplied for the 07613 and 07614 models over the clamp washer. - Page 10 O S E A S S E M B L I E S If you have purchased a complete tool, it will already be fitted with the correct nose assembly for your fastener. It is essent ial that the correct nose assembly is fitted prior to operating the tool.
- Page 11 FITTING INSTRUCTIONS I M P O R T A N T The air supply must be disconnected when fitting or removing nose assemblies unless specifically instructed otherwise. These instructions apply toall three models. Simply ignore instructions relating to items that do not exist in your particular nose assembly. ■...
-
Page 12: Service Kit
E R V I C I N G T H E T O O L Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is sooner. I M P O R T A N T The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel. - Page 13 For all servicing we recommend the use of the service kit below, part number 07900-04990. SERVICE KIT PART Nº DESCRIPTION PART Nº DESCRIPTION 07001-00092 SCREW 07900-00163 " ALLEN KEY 07900-00001 SPRING COMPRESSION TOOL 07900-00004 RIGHT ANGLE CIRCLIP PLIERS 07900-00006 'O' RING ASSEMBLING TOOL 07900-00249 PRIMING PUMP ASSEMBLY 07900-00008...
- Page 14 Unscrew jaw spreader housing assembly 24 or 24b with spanner* and special spanner assembly*, then withdraw hydraulic piston 5. ■ On 07611 model, remove piston stop 21 and using circlip pliers* remove head piston stop 3 and lip seal 2 . ■...
- Page 15 I M P O R T A N T Check the tool against daily and weekly servicing. Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. * refers to items included in the Avdel service kit. For complete list see page 11.
- Page 16 GENERAL ASSEMBLY OF BASE TOOL 07611-00200...
- Page 17 07611-00200 PARTS LIST- Spares are minimum recommended levels ITEM PART Nº DESCRIPTION SPARES 0 7 6 1 1 - 0 0 5 0 0 H E A D & H A N D L E A S S E M B L Y...
- Page 18 GENERAL ASSEMBLY OF BASE TOOL 07613-00200 & 07614-00200 07613-00200 ONLY 24 b...
- Page 19 07613-00200 AND 07614-00200 PARTS LIST- Spares are minimum recommended levels ITEM PART Nº DESCRIPTION SPARES 0 7 6 1 3 - 0 0 7 0 0 H E A D & H A N D L E A S S E M B L Y 0 7 0 0 3 - 0 0 2 4 5 L I P S E A L ●...
-
Page 20: General Assembly & Parts List
R I M I N G Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. It may also be necessary to restore the full stroke after considerable use, when the stroke may be reduced and fasteners are not fully placed by one operation of the trigger. O I L D E T A I L S The recommended oil for priming is Hyspin VG32 available in 0.5l (part number 07992-00002) or one gallon containers (part numbe r 07992-00006). -
Page 21: General Assembly & Parts List
A U L T D I A G N O S I S Item numbers in bold refer to the general assembly and parts list pages 14 to 17. SYMPTOM POSSIBLE CAUSE REMEDY ➝ Air leak ➝ Tighten joints or replace components More than one operation ➝... - Page 23 Declaration of Conformity We, Avdel UK Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ declare under our sole responsibility that the product type 0761 Serial Nº ..........to which this declaration relates is in conformity with the following standards or other formative documents...
- Page 24 Fax: +82 31 798 6342 Email: info@acument.com.au Email: info@acumentkorea.com ITALY CANADA Avdel Italia S.r.l. SPAIN Avdel Canada, a Division of Acument Viale Lombardia 51/53 Avdel Spain S.A. Canada Limited 20047 Brugherio (MI) C/ Puerto de la Morcuera, 14 87 Disco Road...
