I n s t r u c t i o n M a n u a l
O r i g i n a l I n s t r u c t i o n
0 7 2 8 7
H y d ro - P n e u m a t i c P o w e r To o l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 07287 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avdel 07287

Summary of Contents for Avdel 07287

  • Page 1 I n s t r u c t i o n M a n u a l O r i g i n a l I n s t r u c t i o n 0 7 2 8 7 H y d ro - P n e u m a t i c P o w e r To o l...

  • Page 3: Table Of Contents

    AND REMEDIES. ANY IMPLIED WARRANTY AS TO QUALITY, FITNESS FOR PURPOSE, OR MERCHANTABILITY ARE HEREBY SPECIFICALLY DISCLAIMED AND EXCLUDED BY AVDEL. Avdel UK Limited policy is one of continuous product development and improvement and we reserve the right to change the specification of any product without prior notice.

  • Page 4: Safety Rules

    Any modification undertaken by the customer to the tool/machine, nose assemblies, accessories or any equipment supplied by Avdel UK Limited or their representatives, shall be the customer’s entire responsibility. Avdel UK Limited will be pleased to advise upon any proposed modification.

  • Page 5: Specifications

    S p e c i f i c a t i o n s To o l S p e c i f i c a t i o n Air Pressure Minimum - Maximum 5-7 bar (72.5 - 101.5 psi) Free Air Volume Required @ 5.5 bar (80 psi) 3.5 litres...

  • Page 6: Intent Of Use

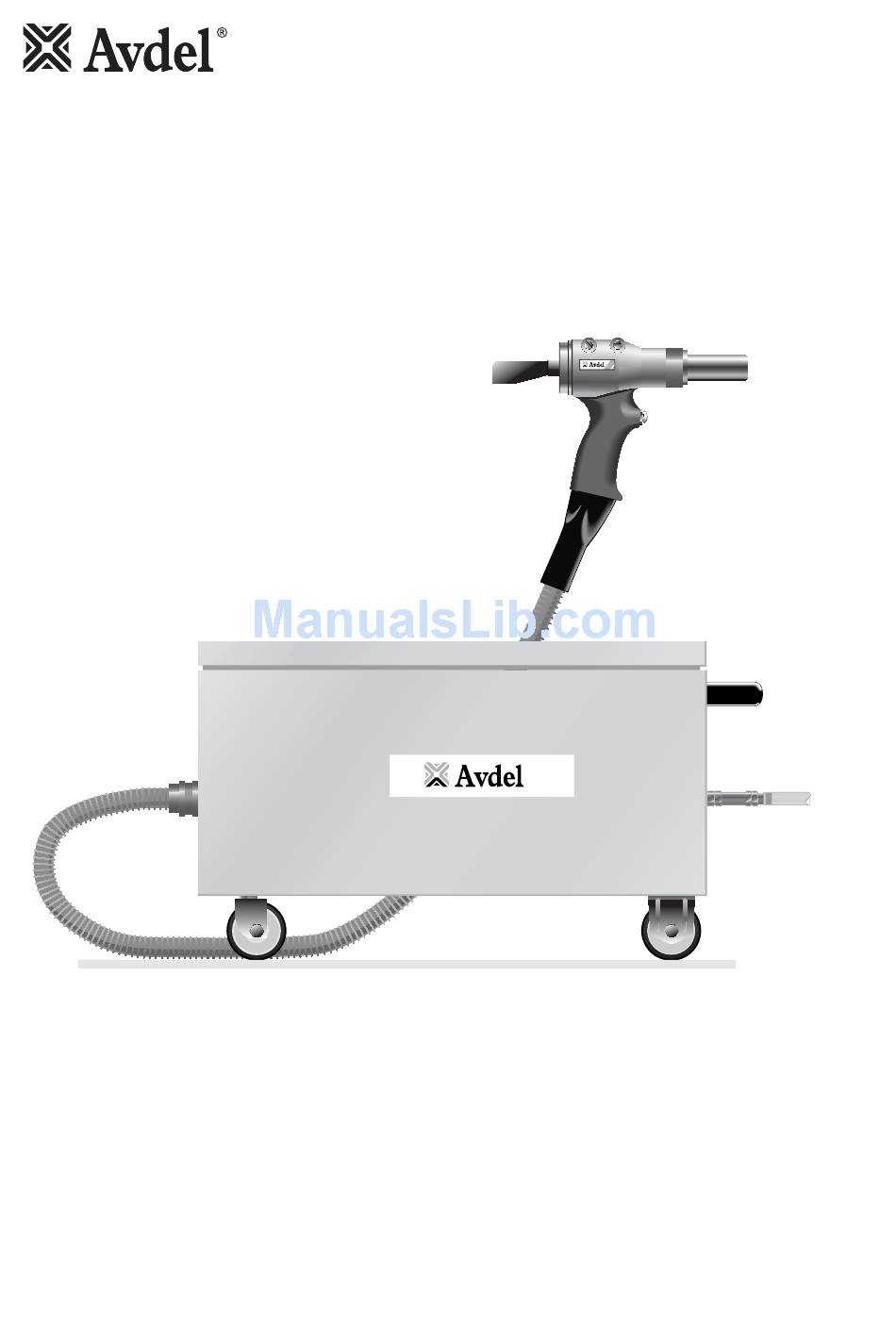

    The 07287 is of the remote intensifier or split tool concept consisting of; Pistol Grip head, Air Oil Intensifiers and Steel Enclosure (see pages 5, 16, 18, 20 and 21).

  • Page 7: Putting Into Service

    P u t t i n g i n t o S e r v i c e A i r S u p p l y All tools are operated with compressed air. The pressure regulator in the cabinet is set to an optimum pressure of 5.25 bar. Regardless of the air inlet pressure, the pressure gauge in the cabinet will show 5.25 bar maximum.

  • Page 8: Nose Assemblies

    N o s e A s s e m b l i e s F i t t i n g I n s t r u c t i o n s It is essential that the correct nose assembly is fitted prior to operating the tool. By knowing your original complete tool part number or the details of the fastener to be placed, you will be able to order a new complete nose assembly using the selection tables on pages 8 and 9.

  • Page 9: Selection Tables For Monobolt®, Avdelok®, Avtainer®, Maxlok® And Hemlok

    Nose Assemblies Selection Tables for Monobolt®, Avdelok®, Avtainer®, Maxlok® and Hemlok® Service Instructions Nose assemblies should be serviced at weekly intervals. • Remove the complete nose assembly using the reverse procedure to the ‘Fitting instructions’. • Any worn or damaged part should be replaced by a new part. •...

  • Page 10: Accessories

    A c c e s s o r i e s H a n d l e a n d H o l s t e r K i t This kit enables an easier handling of the cabinet around the workplace and allows the tool pistol to be stored in a convenient position.

  • Page 11: Quick Connect Kit And Parts List

    A c c e s s o r i e s Q u i c k C o n n e c t K i t This kit enables rapid connection of the handle and hose to the cabinet. P a r t s L i s t o f Q u i c k C o n n e c t K i t 0 7 2 6 7 - 0 1 2 5 0 07267-01250 PARTS LIST ITEM PART Nº...

  • Page 12: Servicing The Tool

    S e r v i c i n g t h e To o l Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is sooner. I M P O R T A N T Read Safety Instructions on page 4.

  • Page 13: Maintenance

    S e r v i c i n g t h e To o l M a i n t e n a n c e Every 500000 cycles the tool should be completely dismantled and new components should be used where worn, damaged or recommended.

  • Page 14: Trigger Assembly

    S e r v i c i n g t h e To o l Tr i g g e r A s s e m b l y Item numbers in bold refer to the General Assembly drawing and Parts List on pages 16-17. •...

  • Page 15: Pressure Regulator And Filter Assembly

    S e r v i c i n g t h e To o l P r e s s u r e R e g u l a t o r a n d F i l t e r A s s e m b l y •...

  • Page 16: General Assembly Of Umbilical And Parts List

    G e n e r a l A s s e m b l y o f H a n d l e 0 7 2 8 7 - 0 1 0 0 0 a n d U m b i l i c a l 0 7 2 8 7 - 0 1 3 0 0...
  • Page 17 Parts List for 07287-01000 and 07287-01300...

  • Page 18: General Assembly Of Cabinet And Parts List

    G e n e r a l A s s e m b l y o f C a b i n e t 0 7 2 8 7 - 0 3 2 0 0...
  • Page 19 P a r t s L i s t o f C a b i n e t 0 7 2 8 7 - 0 3 2 0 0 07287-03200 CABINET PARTS LIST ITEM PART Nº DESCRIPTION QTY SPARES ITEM PART Nº...

  • Page 20: General Assembly Of Push Intensifier And Parts List

    DESCRIPTION QTY SPARES 07267-08119 SEAL 07267-08015 LOCKNUT 07267-08104 SEAL 07267-08116 REAR FLANGE 07267-08107 FRONT FLANGE 07267-08130 ROD EXTENSION 07267-08125 WASHER 07287-08114 TENSION ROD 07267-08106 SCREW 07267-08126 SPRING WASHER 07267-08122 FILTER 07287-08109 07267-08134 SPRING 07267-08103 SEAL 07267-08133 SPRING GUIDE 07287-08102 STEEL HEAD...

  • Page 21: General Assembly Of Pull Intensifier And Parts List

    07005-10112 PULL INTENSIFIER PARTS LIST ITEM PART Nº DESCRIPTION QTY SPARES ITEM PART Nº DESCRIPTION QTY SPARES 07267-08035 SHOCK ABSORBER 07267-08019 SEAL 07267-08032 ROD EXTENSION 07287-08004 SEAL 07287-08014 TENSION ROD 07267-08022 WASHER 07267-08026 SPRING WASHER 07267-08006 SCREW 07267-08013 BLIND NUT 07287-08007 FRONT FLANGE 07267-08033...

  • Page 22: Oil Details

    P r i m i n g Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. It may also be necessary to restore the full stroke after considerable use, when the stroke may be reduced and fasteners are not fully placed by one operation of the trigger. O i l D e t a i l s ®...

  • Page 23: Priming Procedure

    P r i m i n g P r i m i n g P ro c e d u r e I M P O R T A N T CONNECT AIR SUPPLY (this causes the piston to bottom, allowing more priming oil into the tool). DO NOT OPERATE THE TRIGGER WHILE THE BLEED SCREW IS REMOVED.

  • Page 24: Alternative Priming Procedure

    P r i m i n g A l t e r n a t i v e P r i m i n g P ro c e d u r e I M P O R T A N T CONNECT AIR SUPPLY (this causes the piston to bottom, allowing more priming oil into the tool).

  • Page 25: Fault Diagnosis

    Warn anvils Replace Tool requires priming Reprime tool 22-24 Swaging anvil cracked Replace Incorrect length of bolt Change to correct length of bolt ® Other symptoms or failures should be reported to your local Avdel authorised distributor or repair centre.
  • Page 26 N o t e s...
  • Page 27 D e c l a r a t i o n o f C o n f o r m i t y We, Avdel UK Limited, Watchmead Industrial Estate, Welwyn Garden City, Herts, AL7 1LY declare under our sole responsibility that the product: Model 07287 Serial No.
  • Page 28 The names and logos of other companies mentioned herein may be trademarks of their respective owners. Data shown is subject to change without prior notice as a result of continuous product development and improvement policy. Your local Avdel representative is at your disposal should you need to confirm latest information.
