Packing List


Propane Conversion Kit

Log Set

Additional Items Required


Direct Vent

Gas Line Equipment (shutoff valve, pipe, etc.)

Electrical Equipment (min. 14 gauge, grounded line)

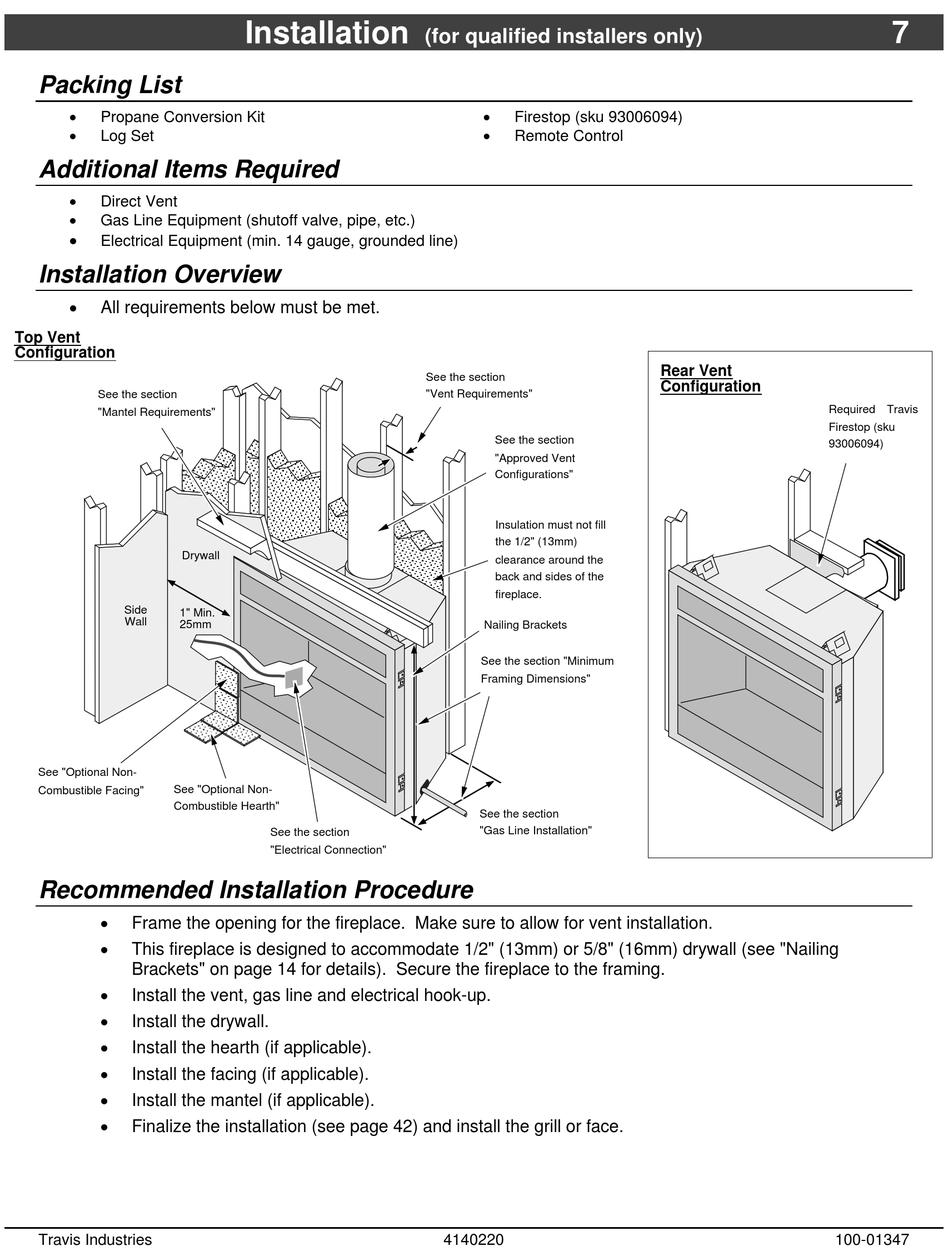

Installation Overview


All requirements below must be met.
Top Vent
Configuration
See the section
"Mantel Requirements"
Drywall
Drywall
Side
1" Min.
Wall
25mm
See "Optional Non-
See "Optional Non-
Combustible Facing"
Combustible Hearth"

Recommended Installation Procedure


Frame the opening for the fireplace. Make sure to allow for vent installation.

This fireplace is designed to accommodate 1/2" (13mm) or 5/8" (16mm) drywall (see "Nailing
Brackets" on page 14 for details). Secure the fireplace to the framing.

Install the vent, gas line and electrical hook-up.

Install the drywall.

Install the hearth (if applicable).

Install the facing (if applicable).

Install the mantel (if applicable).

Finalize the installation (see page 42) and install the grill or face.
