Installation Options; Heating Specifications; Dimensions - Intertek 864 TRV GSR2 Installation Manual

6

Installation Options


Residential or Mobile Home

Straight or Corner Placement

Flush or Recessed Face

Raised or Floor Placement

Heating Specifications

Approximate Heating Capacity (in square feet)*
Maximum BTU Input Per Hour
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.

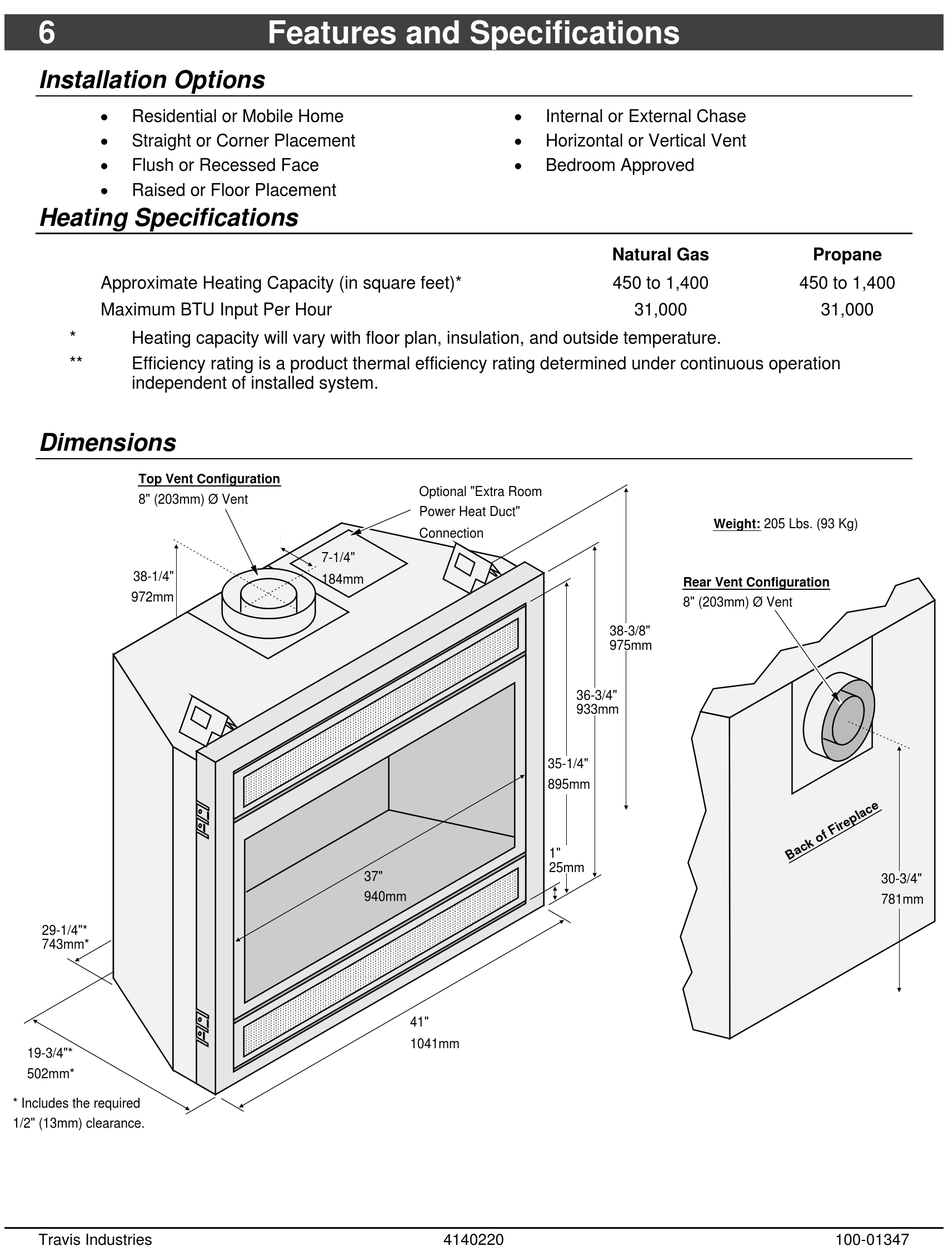

Dimensions

Top Vent Configuration
8" (203mm) Ø Vent
38-1/4"
972mm
29-1/4"*
743mm*
19-3/4"*
502mm*
* Includes the required
1/2" (13mm) clearance.
Travis Industries
Features and Specifications
Optional "Extra Room
Power Heat Duct"
Connection
7-1/4"
184mm
37"
940mm
41"
1041mm
4140220

Internal or External Chase

Horizontal or Vertical Vent

Bedroom Approved
Natural Gas
450 to 1,400
31,000
Rear Vent Configuration
8" (203mm) Ø Vent
38-3/8"
975mm
36-3/4"
933mm
35-1/4"
895mm
1"
25mm
Propane
450 to 1,400
31,000
Weight: 205 Lbs. (93 Kg)
30-3/4"
781mm
100-01347
