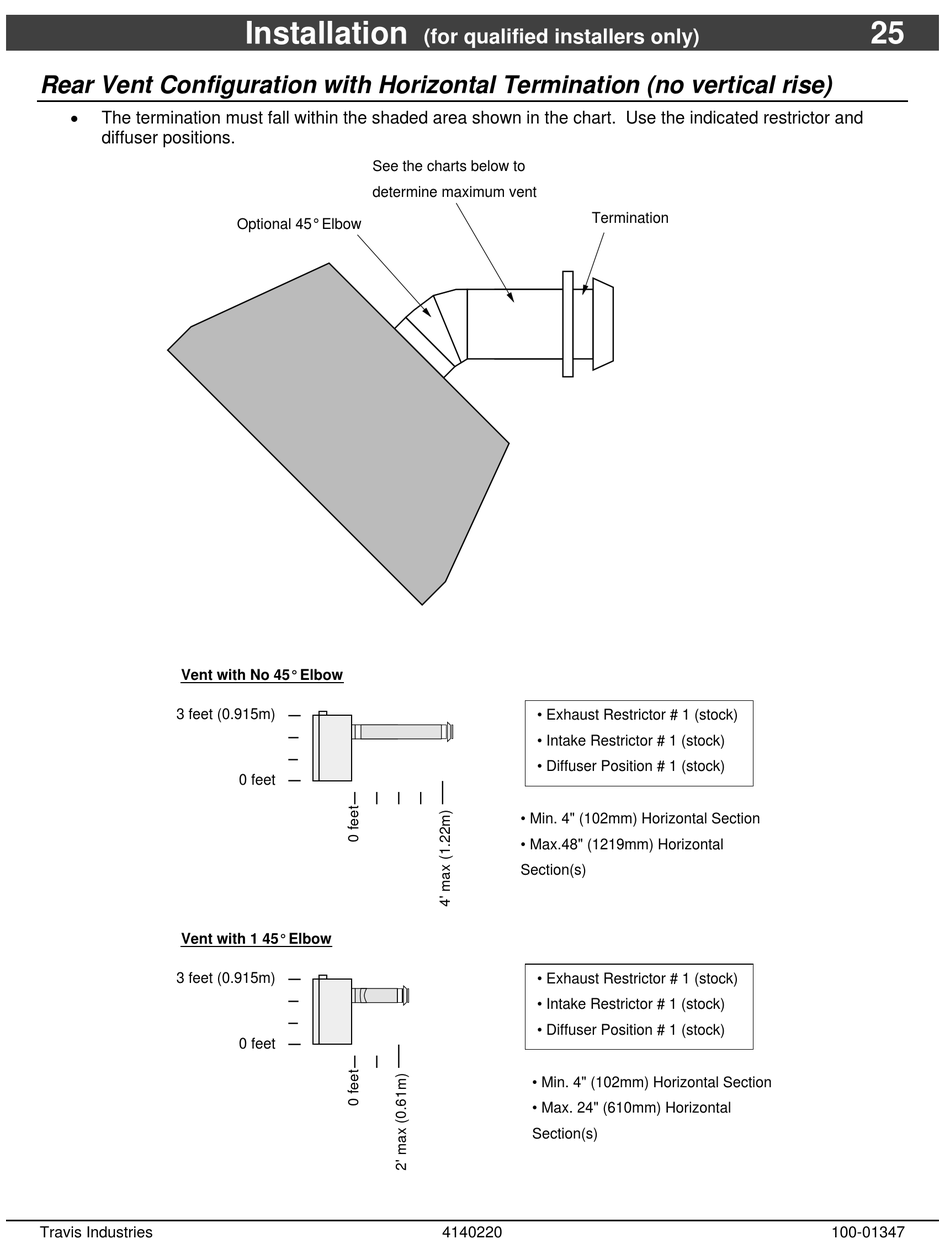

Rear Vent Configuration with Horizontal Termination (no vertical rise)


The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and
diffuser positions.
Vent with No 45° Elbow
3 feet (0.915m)
Vent with 1 45° Elbow
3 feet (0.915m)
Travis Industries
Installation
See the charts below to
determine maximum vent
Optional 45° Elbow
0 feet
0 feet
(for qualified installers only)
Termination
• Exhaust Restrictor # 1 (stock)
• Intake Restrictor # 1 (stock)
• Diffuser Position # 1 (stock)
• Min. 4" (102mm) Horizontal Section
• Max.48" (1219mm) Horizontal
Section(s)
• Exhaust Restrictor # 1 (stock)
• Intake Restrictor # 1 (stock)
• Diffuser Position # 1 (stock)
• Min. 4" (102mm) Horizontal Section
• Max. 24" (610mm) Horizontal
Section(s)
4140220
25
100-01347
