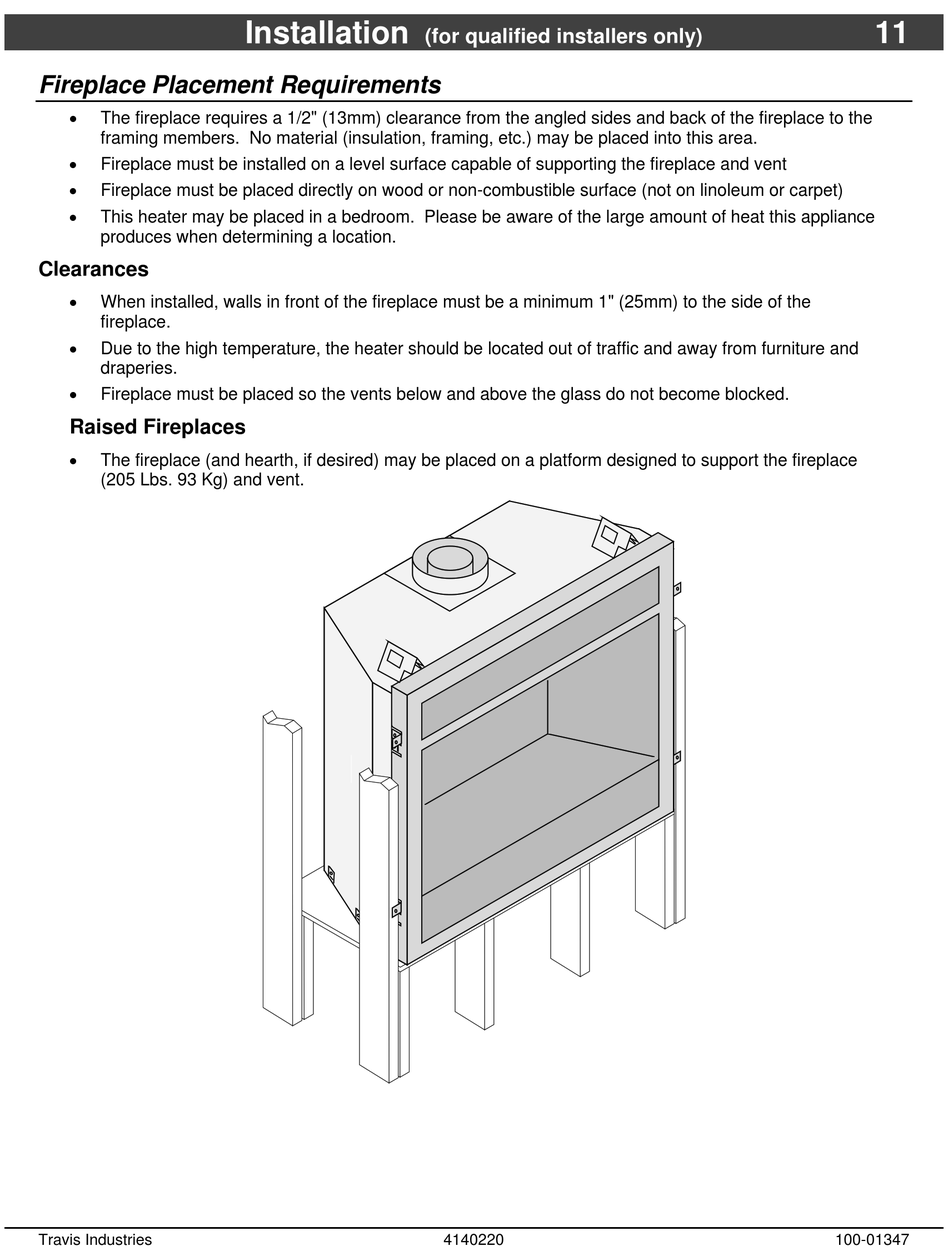

Fireplace Placement Requirements


The fireplace requires a 1/2" (13mm) clearance from the angled sides and back of the fireplace to the
framing members. No material (insulation, framing, etc.) may be placed into this area.

Fireplace must be installed on a level surface capable of supporting the fireplace and vent

Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)

This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.

Clearances


When installed, walls in front of the fireplace must be a minimum 1" (25mm) to the side of the
fireplace.

Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.

Fireplace must be placed so the vents below and above the glass do not become blocked.

Raised Fireplaces


The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(205 Lbs. 93 Kg) and vent.
