Facing Overview

Upgrade faces are available for this fireplace and may influence facing installation. Consult with your
Travis Dealer if you are using an upgrade face.

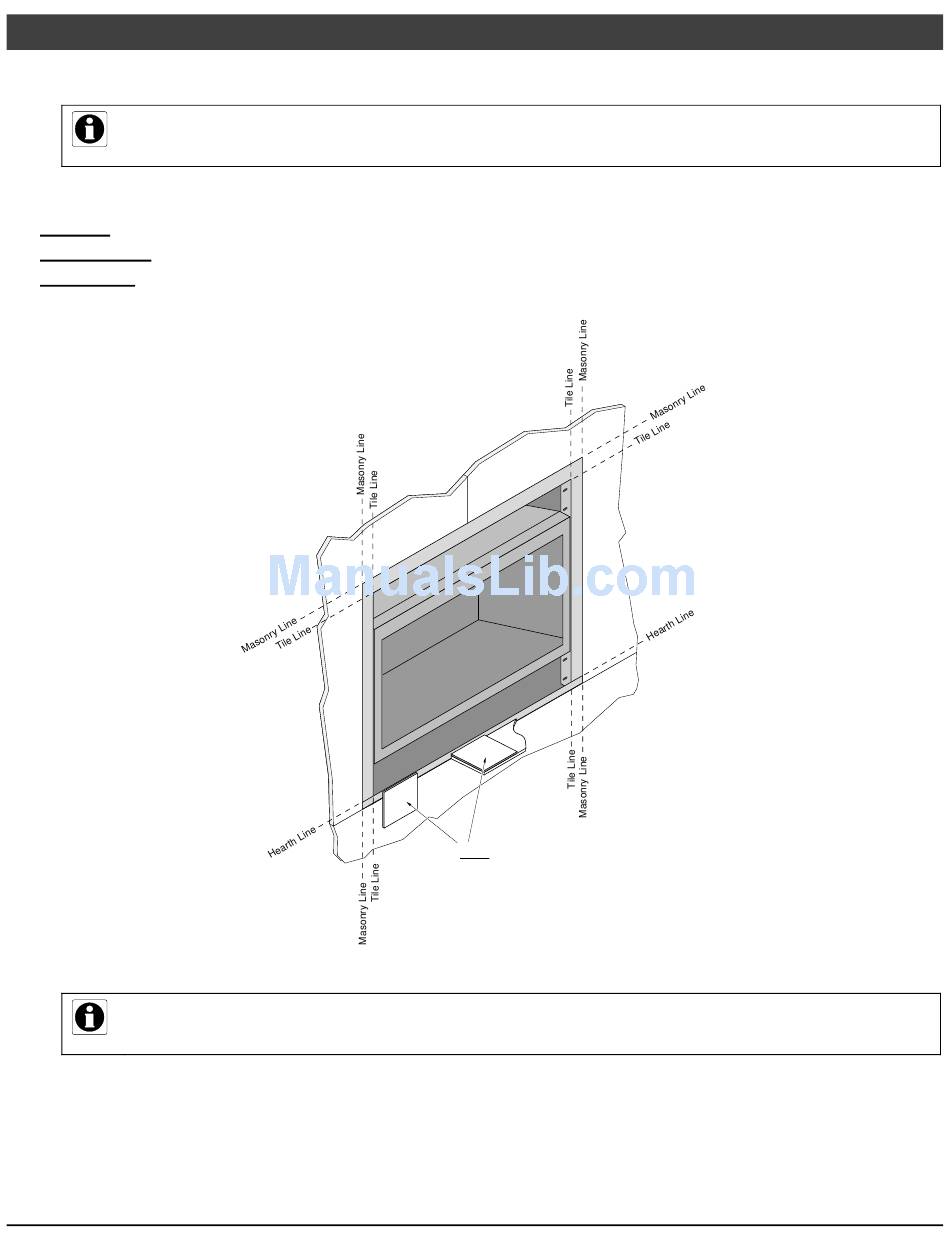

Optional non-combustible facing may be installed on the fireplace. Use the guidelines below to determine
the location (also see the following pages for detailed diagrams.
Tile Line Any non-combustible facing under 1" (25mm) thick (see "Thin Facing" on page 34).
Masonry Line Any non-combustible over 1" (25mm) thick (see "Thick Facing" on page 36).
Hearth Line Non-combustible hearth/facing should be installed up to this location (1" (25mm) above the base
of the fireplace). The fireplace may be raised to accommodate thicker hearth materials.
Optional Faceplates
Upgrade faces are available for this fireplace that may influence facing installation. Refer to the face
installation instructions for face sizing and installation considerations.
Travis Industries
Installation
(for qualified installers only)
NOTE: The hearth or facing can extend no
greater than 1'' (25mm) above the base of the
fireplace. The fireplace may be raised to
accommodate thicker hearth materials.
