Thick Facing with Fireplace Xtrordinair (FPX) Arched Faces

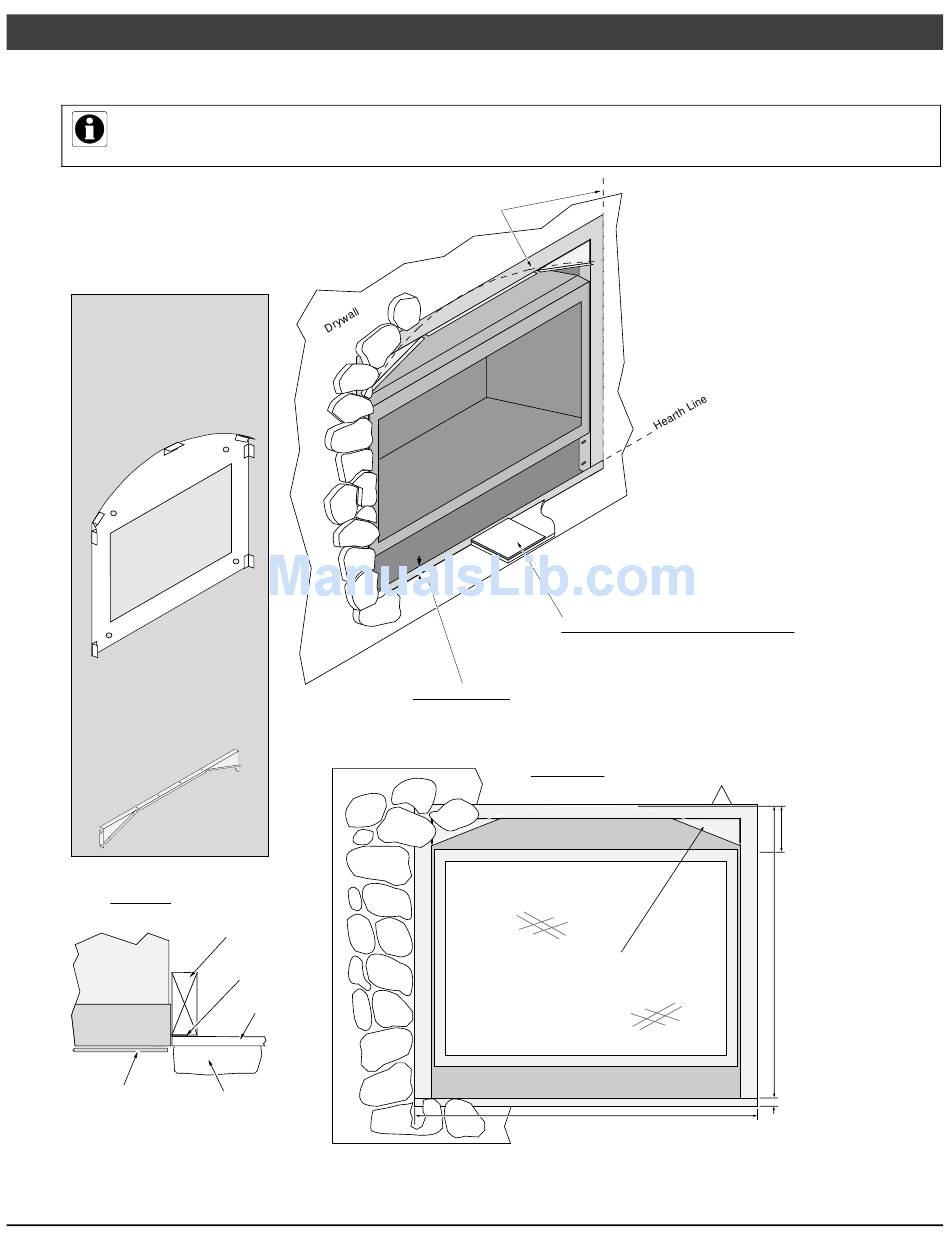

The following illustration shows facing considerations for those fireplaces utilizing FPX arched faces.
The facing must be non-combustible and over 1" (25mm) in depth.
The Fireplace Xtrordinair 864
Masonry Template is
recommended for masonry
installation (sku 98500688). The
template helps locate and
support the masonry as it being
installed.
Before installing masonry, install
the FPX Face Upgrade Kit
(98500686). This covers the
upper corners.
TOP VIEW
Fireplace
Face
Masonry
Travis Industries
Installation
Framing
Nailing Bracket
Drywall
(for qualified installers only)
Masonry Line
Floor-Mounted Fireplaces or Raised Hearths:
Build the hearth 1" (25mm) maximum above the
base of the fireplace. The fireplace may be
raised to accommodate thicker hearth materials.
Raised Fireplaces:
Masonry is installed 1" (25mm) maximum
above the base of the fireplace.
FRONT VIEW
45-1/2" (1156mm) Radius
41"
1041mm
4140220
37
5"
127mm
35-3/4"
908mm
1"
