Corner Installations - Rear Vent Configuration

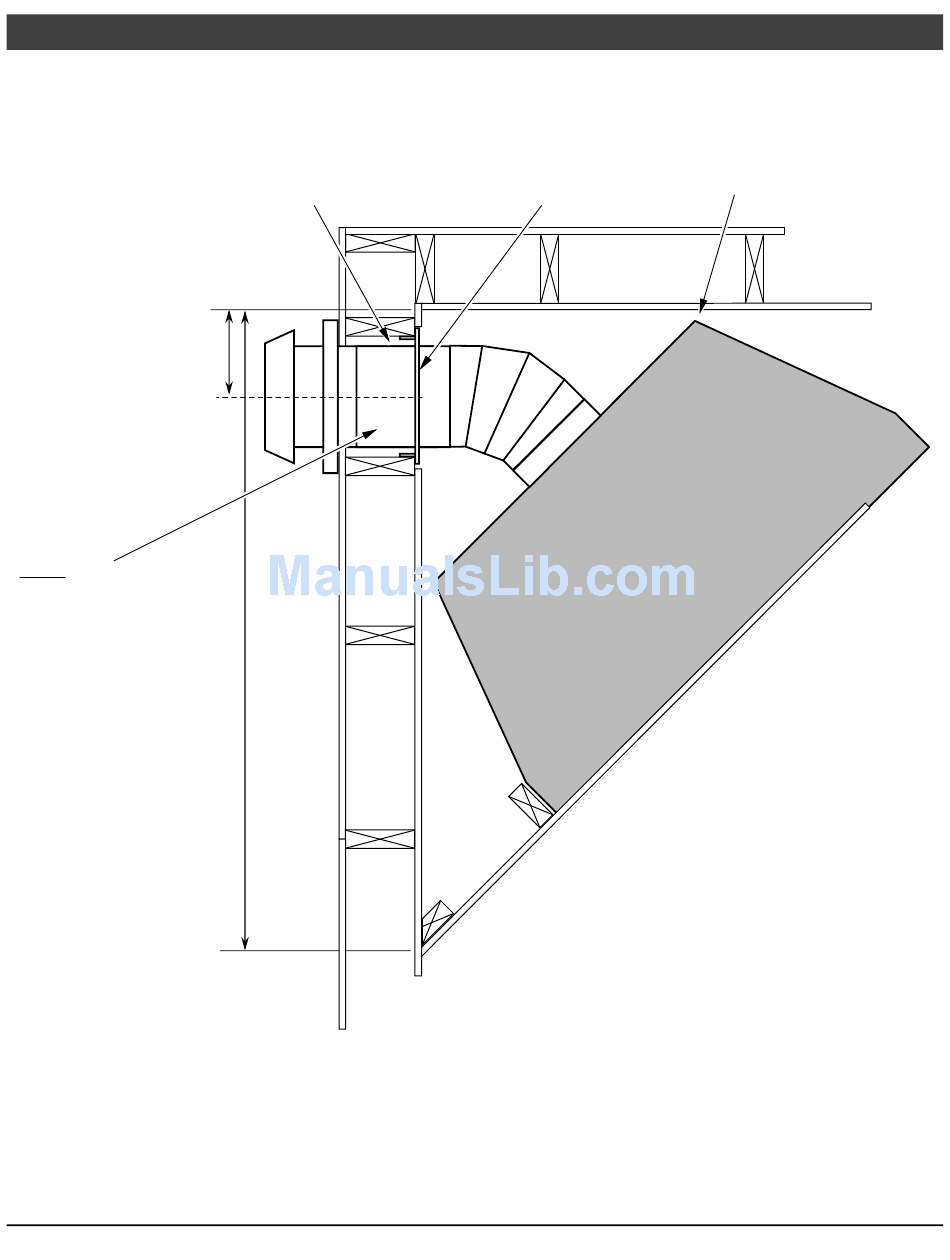

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).
7-1/2" (91mm)
Approximate
(varies due to vent
installation)
NOTE:
Most installations use:
6" (152mm) Section for
2 X 6 Walls (51mm X 152mm)
4" (102mm) Section for
2x4 Walls (21mm X 102mm)
(Travis # 98900166)
48" Min.
1219mm
Travis Industries
Installation
Minimum 1" (25mm) Clearance
(for qualified installers only)
Travis Firestop
(sku 93006094)
4140220
Minimum 1/2" (13mm) Clearance
