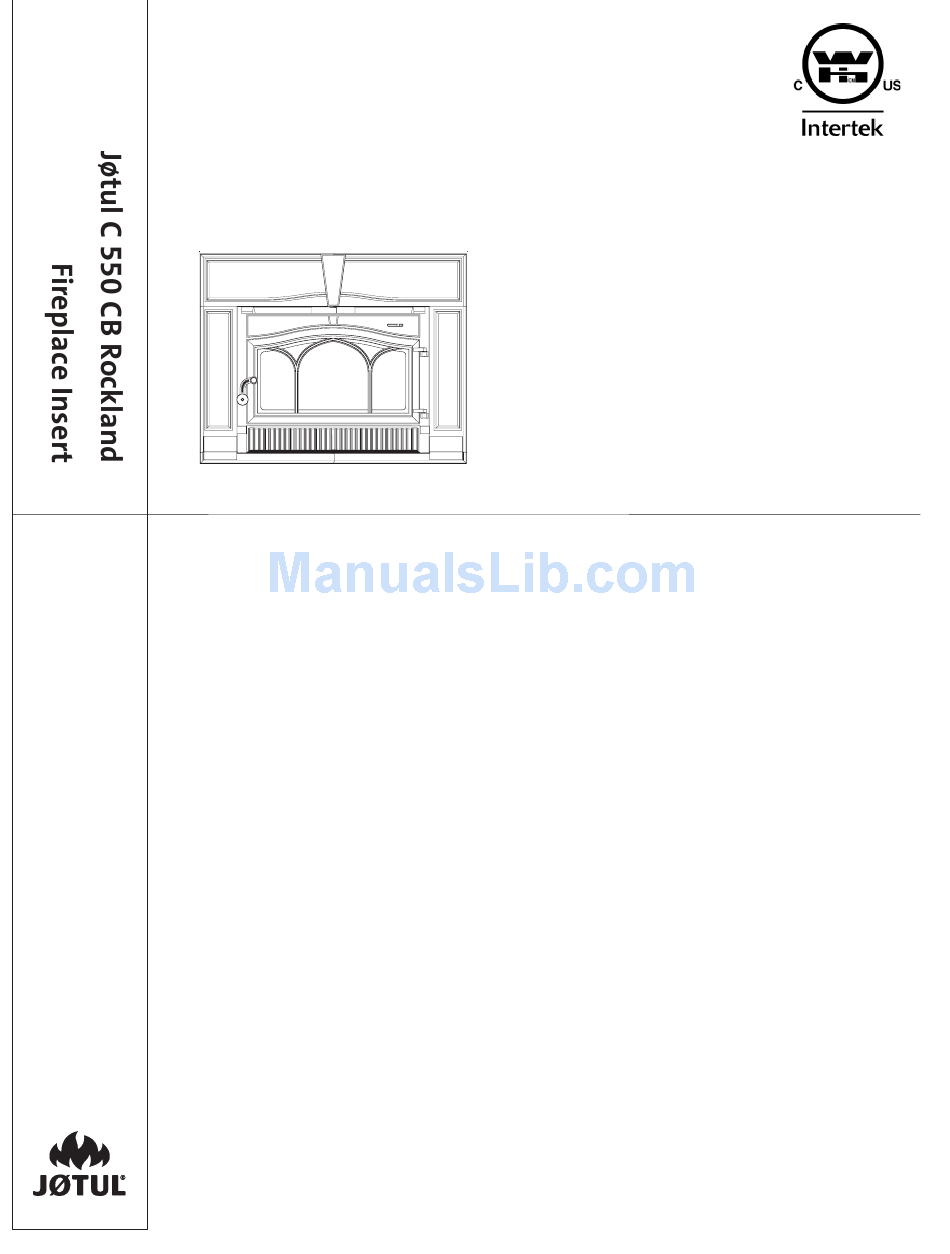

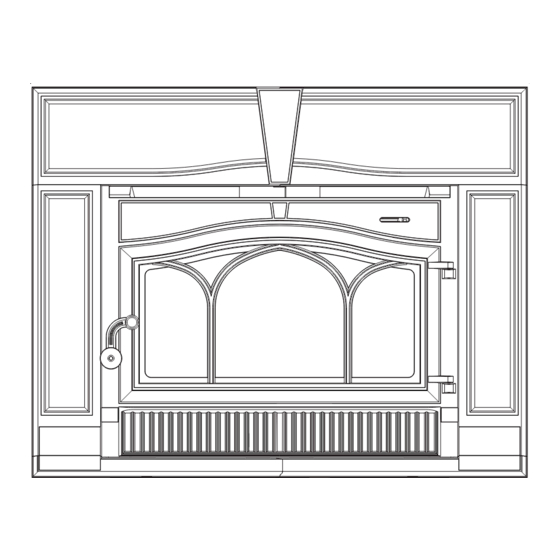

- Page 1 Jøtul C 550 CB Rockland 139656_02 10/2/14 40” 1016 mm Jøtul C 550 CB 31 5/8” 803 mm Rockland Fireplace Insert Installation and Operating Instructions for the United States & Canada Keep these instructions for future reference.
- Page 2 Jøtul C 550 CB Rockland 139656_02 10/2/14 NOTICE: YOU SHOULD CONSULT THE AUTHORITY HAVING JURISDICTION IN YOUR LOCALE (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTIOIN BUREAU, ETC.) BEFORE INSTALLATION TO DETERMINE THE NEED TO OBTAIN A PERMIT.
-
Page 3: Table Of Contents
Jøtul C 550 CB Rockland 139656_02 10/2/14 Table of Contents For Your Records... Standards and Safety Notices Standards / Codes ............4 Record the following information to help your Safety Notices ............... 5 dealer determine what you will need should Preparation ..............5 your fireplace ever require parts or service. -
Page 4: Standards / Codes
Check Building Codes Standards When installing, operating and maintaining your Tested and listed by Intertek Testing Services, Jøtul C 550 CB Fireplace Insert, follow the guide- Middleton, Wisconsin. lines presented in these instructions, and make Tested to U.S. Standard ANSI/UL 1482-2011 Solid-... -
Page 5: Safety Notices
Jøtul C 550 CB Rockland 139656_02 10/2/14 Installation Safety Notices Preparation • BURN SOLID WOOD FUEL ONLY We strongly urge you to have your authorized Jøtul • DO NOT USE CHEMICALS OR FLUIDS TO dealer install your new Jøtul C 550 Fireplace Insert. START THE FIRE. -
Page 6: Specifications
Jøtul C 550 CB Rockland 139656_02 10/2/14 Jøtul C 550 CB Rockland Specifications Performance Maximum Heat Output based on total kilograms of dry wood burned in a one hour period. Under spe- Fuel: up to 24” Logs cific EPA test conditions, this heater has generated Heat Output 65,000 BTU/Hr. -
Page 7: Installation
Jøtul C 550 CB Rockland 139656_02 10/2/14 Installation Factory-Built Fireplace Requirements Masonry Fireplace Requirements The Jøtul C 550 CB Rockland may be installed into a • The entire fireplace and chimney must be cleaned factory-built fireplace with the following conditions: and inspected to NFPA 211 Level II standards •... -
Page 8: Hearth Protection
Jøtul C 550 CB Rockland 139656_02 10/2/14 Hearth Protection Requirements Factory-Built Fireplace Requirements, cont’d. The floor area in front of fireplace insert must be The use of the cast iron surround panels may not protected from live sparks and radiant heat. be possible in these instances. -
Page 9: Mantel Clearances
Jøtul C 550 CB Rockland 139656_02 10/2/14 Clearance to Combustible Materials • There may be no combustible materials located • Specific clearance (open space) must be anywhere within 36” (914 mm) of the front of maintained between the fireplace insert and the fireplace insert. - Page 10 Jøtul C 550 CB Rockland 139656_02 10/2/14 Minimum Clearances for units with serial numbers before 11903 Serialized labels are located on the shipping crate, firebox floor, and firebox shroud. These older units may be updated for installation at the reduced clearances on the preceding page with installation of Jøtul C 550 CB Clearance Reduction Kit 157705.
-
Page 11: Chimney Connection
Jøtul C 550 CB Rockland 139656_02 10/2/14 Chimney Connection Requirements 5. For external chimneys, (one or more sides are exposed to the outside below the roof line, including garages), a positive connection to the The insert must be connected to a code-approved first flue tile is acceptable provided the tile is no masonry chimney or listed factory-built fireplace larger than 8”... - Page 12 Jøtul C 550 CB Rockland 139656_02 10/2/14 Fireplace Chimney Preparation 1. Remove the existing damper and linkage components from the fireplace. Alternatively, you can wire the damper plate to lock it in the open position. Thoroughly clean the firebox and smokeshelf area with a wire brush.
-
Page 13: Firebox Installation
Jøtul C 550 CB Rockland 139656_02 10/2/14 Installing the Fireplace Insert Quik-connectors Inner Shroud Power Cord Orientation 1. Determine to which side the blower power cord will be routed. DO NOT ROUTE THE POWER CORD ACROSS THE FRONT OF THE FIREPLACE. Phillips screw 2. -
Page 14: Surround Assembly
Jøtul C 550 CB Rockland 139656_02 10/2/14 Figure 13. Left Breastplate Right Breastplate Surround Panel assembly viewed from backside. Tools Required: • 10 mm socket or wrench Alignment Set Screw All fasteners are M6 x 10 mm hex Right Leg head bolts, pre-installed. -
Page 15: Operation
Jøtul C 550 CB Rockland 139656_02 10/2/14 Operation Air Control Settings A single lever regulates the Primary Air flow that Read the following section carefully before building controls the intensity of the fire and consequent heat a fire in your fireplace insert.. output and burn time. -
Page 16: Formation Of Creosote
Jøtul C 550 CB Rockland 139656_02 10/2/14 Starting and Maintaining a Fire Burn only solid wood directly on the bottom plate of the stove. Do not elevate the fire in any way. Andirons 1. Set the Air Control Lever in the full open position. 2. Crumple several sheets of newspaper directly on the bottom plate.. -
Page 17: Blower
Jøtul C 550 CB Rockland 139656_02 10/2/14 It is also important to remember that chimney size, temperature and height all affect draft which in turn WARNING ! affects the formation of creosote. An exterior chimney, THIS BLOWER MUST BE ELECTRI- whether masonry or prefabricated steel, will be ex- CALLY GROUNDED IN ACCOR- posed to cold outside temperatures, and consequently,... -
Page 18: Maintenance
Jøtul C 550 CB Rockland 139656_02 10/2/14 Maintenance Glass Replacement Always operate the doors slowly and cautiously to avoid cracking or breaking the glass. Never use the Ash Removal door to push wood into the firebox. If the glass becomes cracked or broken follow the replacement Always wear stove gloves when handling ashes. -
Page 19: General Maintenance
Jøtul C 550 CB Rockland 139656_02 10/2/14 General Maintenance Regular maintenance will assure proper perfor- Canada Installations (Full Reline): mance and prolong the life of your fireplace insert.. The chimney liner can be swept directly into a bucket The following procedures do not take long and are placed under the flue outlet, with removal of the two generally inexpensive. -
Page 20: Blower Maintenance
Jøtul C 550 CB Rockland 139656_02 10/2/14 Replacement Gaskets Glass LD .250 Fiberglass Rope 66” 200024 Door LD2 .350 Fiberglass Rope 70” 100038 Front LD2 .360 Fiberglass Rope 90.5” 117587 Air Manifold, Outer LD2 .250 SA Fiberglass Rope 30” 129644 Air Manifold, Inner .125 x 8 mm Flat SA 24”... - Page 21 Jøtul C 550 CB Rockland 139656_02 10/2/14 This page is intentionally blank.
-
Page 22: Exploded View
Jøtul C 550 CB Rockland 139656_02 10/2/14 Jøtul C 550 CB Rockland Illustrated Parts Diagram Use only genuine Jøtul replacement parts. Do not substitute parts from any other manufacturer. See your local Authorized Jøtul Dealer or contact us directly: Jøtul North America 55 Hutcherson Dr. -
Page 23: Parts Listing
Jøtul C 550 CB Rockland 139656_02 10/2/14 Jøtul C 550 CB Rockland Parts List Description Part Number Description Part Number Rear Shroud 222027 Roll Pin, 5 mm x 24 mm 117733 Screw, #8 x 1/2” Hex Slt 117917 Washer, Insulating 124385 Nut, M6 Flange 117968... -
Page 24: Alternate Hearth Protection
Jøtul C 550 CB Rockland 139656_02 10/2/14 Appendix A Alternate Hearth Protection Leg Leveler Installation Two leg leveler bolts are contained within the All hearth protection materials must be noncombustible; i.e: Miscellaneous Kit included inside the firebox. The bolts metal, brick, stone, or mineral fiber boards. Any combustible are intended to help level and plumb the firebox if material may not be used. -
Page 25: Warranty Statement
Jøtul C 550 CB Rockland 139656_02 10/2/14 Jøtul C 550 CB Rockland can also be identified by warped plates, rust-colored cast iron, paint pig- Limited LifetimeWarranty ment that has turned dusty white, or bubbling, cracking and discolor- ation of the enamel finish. Misuse includes, without limitation, use that is not in conformance with the operating instructions contained in this Effective January 1, 2013. - Page 26 Jøtul C 550 CB Rockland 139656_02 10/2/14 This page is intentionally blank.
- Page 27 Jøtul C 550 CB Rockland 139656_02 10/2/14 This page is intentionally blank.
- Page 28 Jøtul C 550 CB Rockland 139656_02 10/2/14 This appliance must be installed in conformance with local and national building regulations. It is important that the these instructions be carefully read and understood before beginning the instal- lation. Jøtul pursues a policy of continual product development. Consequently, products may differ in specification, color or type of accessories from those illustrated or described in various publications.
