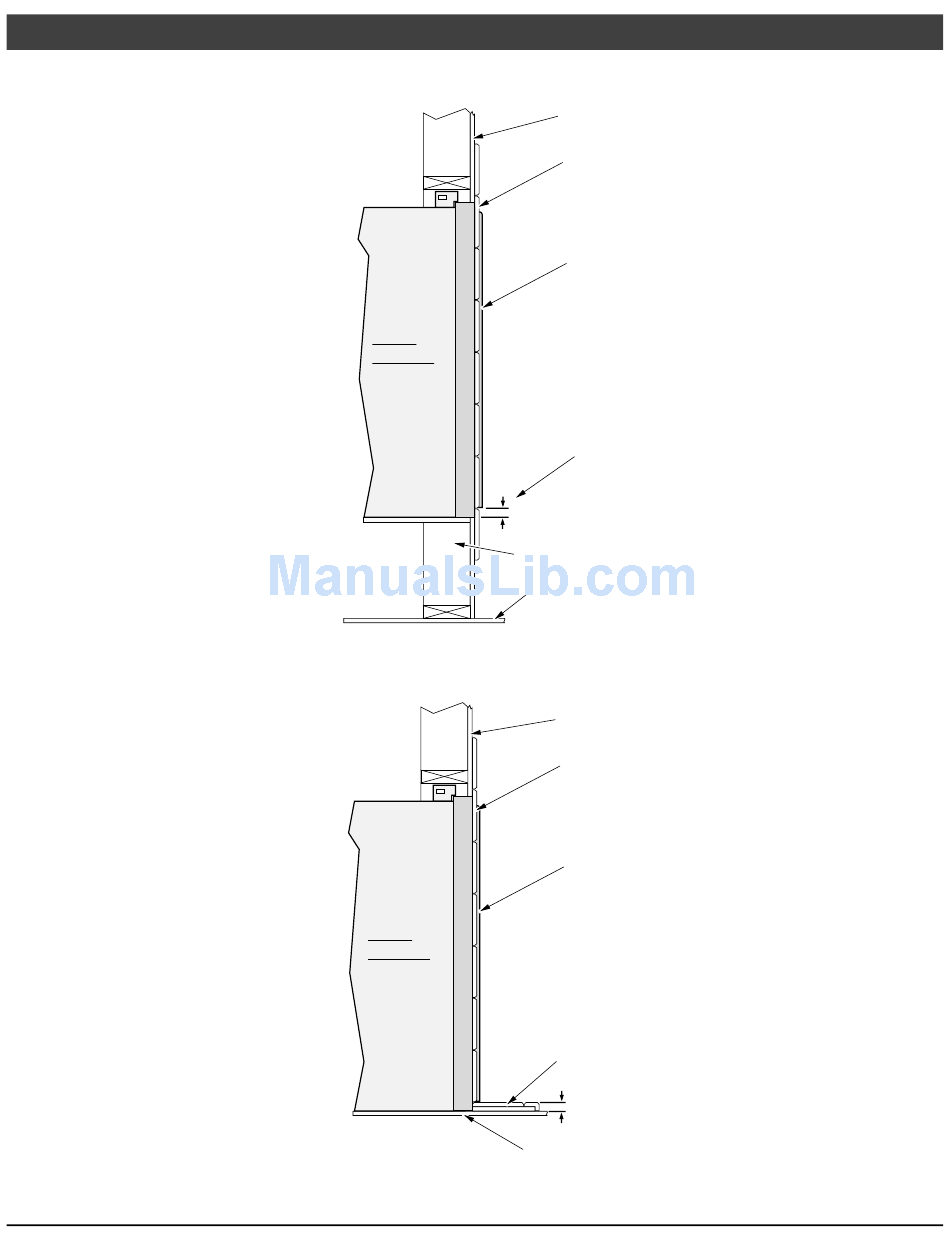

Thin Facing Installation (tile, marble, under 1" (25mm) thick) - Side View

Raised Fireplace
(with no Hearth)
Floor-Mounted Fireplace
(with Hearth)
Travis Industries
Installation
(for qualified installers only)
SIDE OF
FIREPLACE
SIDE OF
FIREPLACE
Drywall
Tile or other facing under 1'' (25mm)
thick.
Face
Note how the facing extends 1'' (25mm)
above the base of the fireplace.
1'' (25mm)
Fireplace Support
Floor
Drywall
Tile or other facing under 1''
(25mm) thick.
Face
Hearth: note how it extends under the face -
max. 1'' (25mm) thick. The fireplace may be
raised to accommodate thicker hearth
materials.
Max. 1'' (25mm)
Floor
4140220
