PureLink by Dtrovision

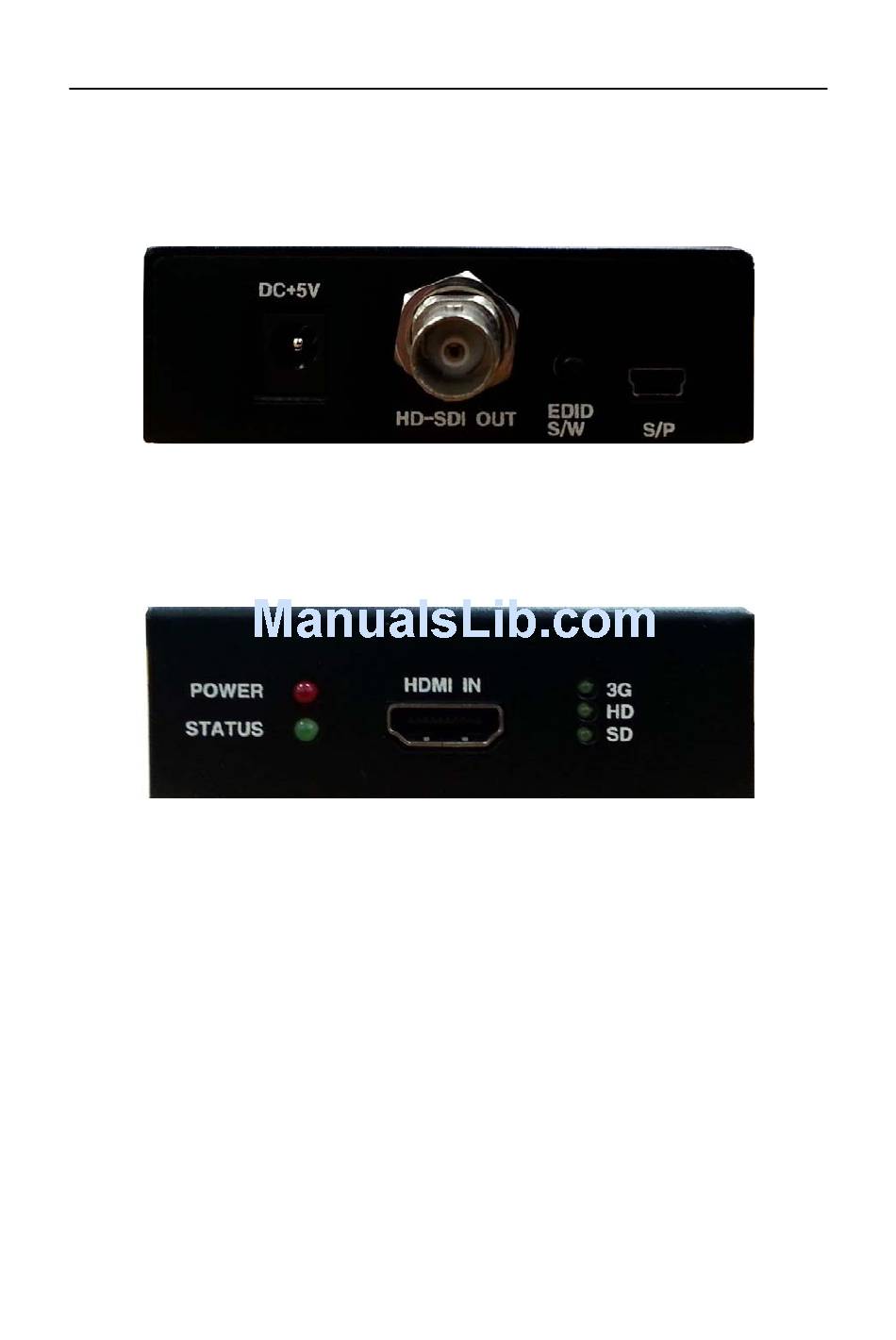

Mechanical Specification
Dimension: 4.0 x 3.07 x 1.18 in. | 102 x 78 x 30 mm
Front part
DC 5V: DC 5V power input port
HD-SDI Out: HD-SDI Output port(Loop Back)
EDID S/W : Switch for loading EDID
S/P : Service port for firmware upgrade.
Rear part
POWER LED: display the status of power
STATUS LED: display the status of signal input
HDMII In: HDMI(DVI) input port
SD/HD/3G LED: display the status of Input Signal operation
6
