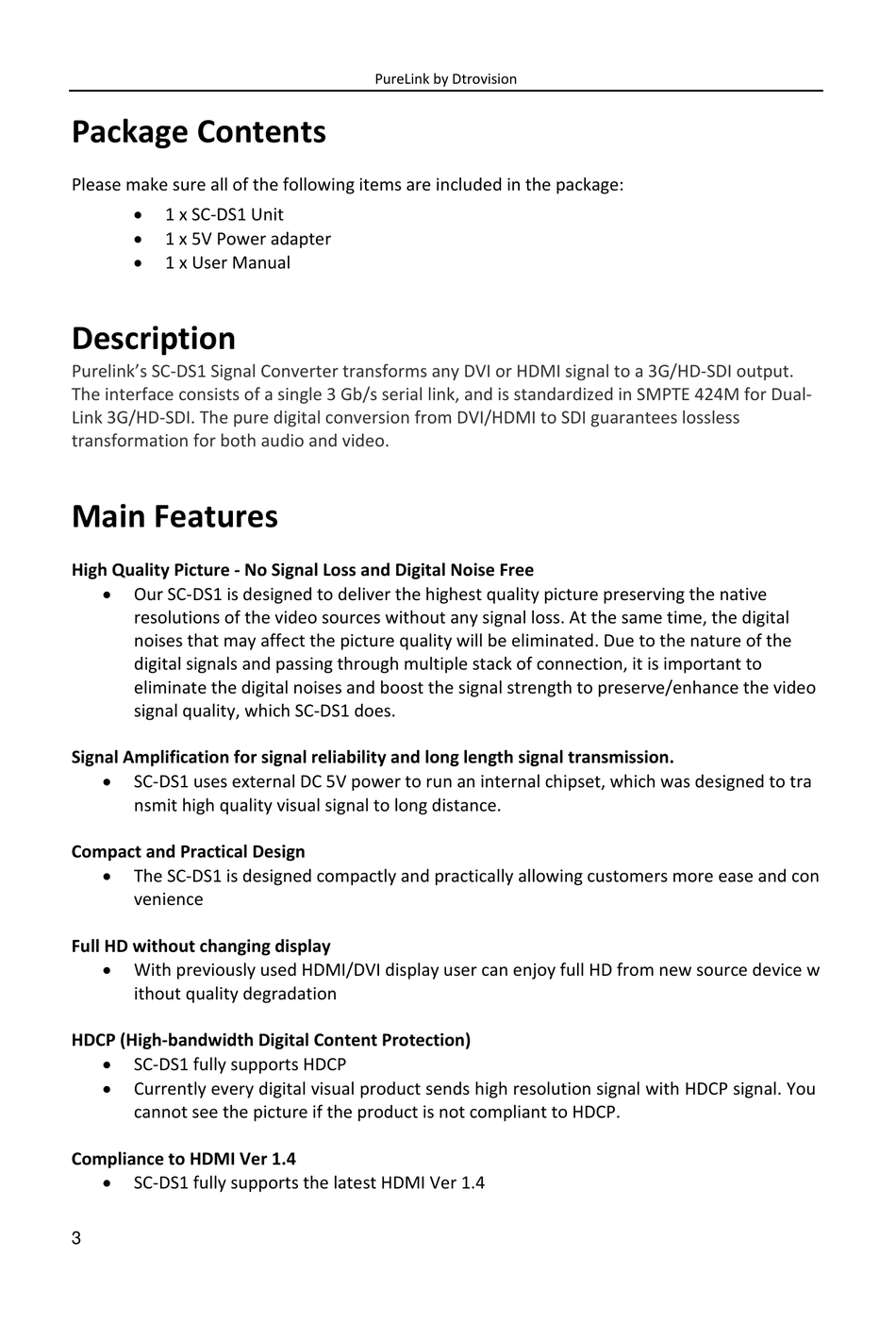

Package Contents

Please make sure all of the following items are included in the package:

1 x SC-DS1 Unit

1 x 5V Power adapter

1 x User Manual
Description
Purelink's SC-DS1 Signal Converter transforms any DVI or HDMI signal to a 3G/HD-SDI output.
The interface consists of a single 3 Gb/s serial link, and is standardized in SMPTE 424M for Dual-
Link 3G/HD-SDI. The pure digital conversion from DVI/HDMI to SDI guarantees lossless
transformation for both audio and video.

Main Features

High Quality Picture - No Signal Loss and Digital Noise Free

Our SC-DS1 is designed to deliver the highest quality picture preserving the native
resolutions of the video sources without any signal loss. At the same time, the digital
noises that may affect the picture quality will be eliminated. Due to the nature of the
digital signals and passing through multiple stack of connection, it is important to
eliminate the digital noises and boost the signal strength to preserve/enhance the video
signal quality, which SC-DS1 does.
Signal Amplification for signal reliability and long length signal transmission.

SC-DS1 uses external DC 5V power to run an internal chipset, which was designed to tra
nsmit high quality visual signal to long distance.
Compact and Practical Design

The SC-DS1 is designed compactly and practically allowing customers more ease and con
venience
Full HD without changing display

With previously used HDMI/DVI display user can enjoy full HD from new source device w
ithout quality degradation
HDCP (High-bandwidth Digital Content Protection)

SC-DS1 fully supports HDCP

Currently every digital visual product sends high resolution signal with HDCP signal. You
cannot see the picture if the product is not compliant to HDCP.
Compliance to HDMI Ver 1.4

SC-DS1 fully supports the latest HDMI Ver 1.4
