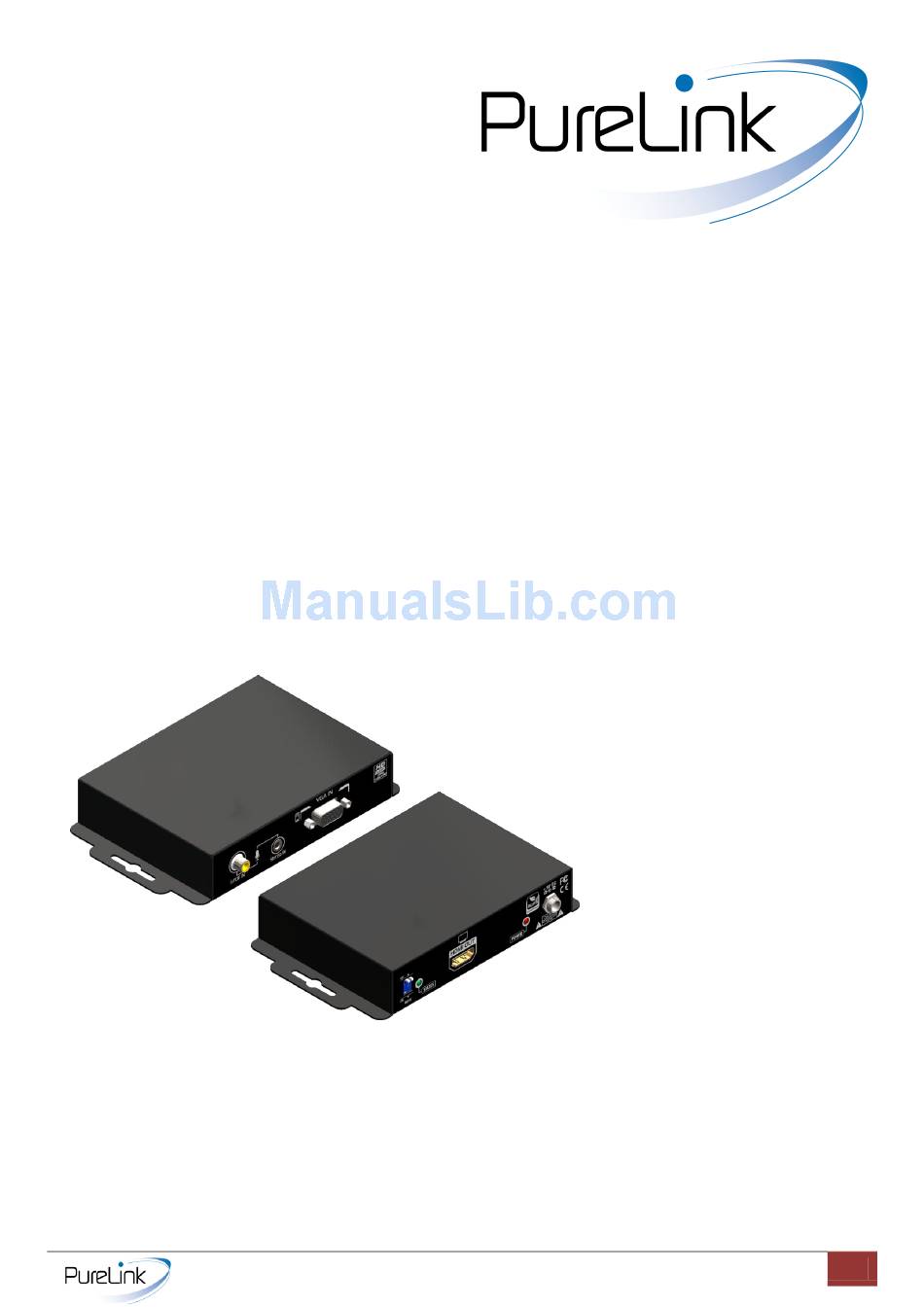

- Page 1 VGA and Audio to HDMI™ Converter User’s Guide Model no. PT-C-VGAHD Designed in Germany Made in Taiwan © 2010 PureLink GmbH. All rights reserved. www.purelink.de...
-
Page 2: Table Of Contents
Before Installation ......................... 4 Panel Descriptions ......................... 4 Installation ..........................5 Section 2: Specifications ........................6 Resolution Support ........................ 7 2.2 Dip Switch ..........................7 2.3 Edid Learning ..........................7 Section 3: Notice ............................ 8 Section 4: Performance Guide ....................... 8 www.purelink.de... -
Page 3: Section 1: Getting Started
Introduction The PT-C-VGAHD VGA and Audio to HDMI™ Converter offers an easy and instant approach for converting analog PC video (VGA) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI. With this module, VGA based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV. -
Page 4: Package Contents
Do not twist or pull by force ends of the cable. It can cause malfunction. Panel Descriptions FRONT PANEL — PT-C-VGAHD 1. SPDIF In: Digital S/PDIF input 2. STEREO IN: Connect to an analog audio source 3. -
Page 5: Installation
1. Connect VGA source to the video input with a VGA cable. 2. Connect S/PDIF or stereo audio source to RCA jack or 3.5mm earphone jack respectively. 3. Connect HDMI display to the HDMI output connector with a HDMI cable 4. Power up the PT-C-VGAHD. www.purelink.de... -
Page 6: Section 2: Specifications
Section 2: Specifications Item Description Units PT-C-VGAHD HDMI compliance HDMI DVI compliance Video bandwidth Single-link 165MHz [4.95Gbps] Video support Up to single link: 1080p@60, WUXGA [1920x1200@60Hz], UXGA Audio support Stereo audio Input TMDS signal 1.2 Volts [peak-to-peak] Input DDC signal... -
Page 7: Resolution Support
S/PDIF audio input 2.3 Edid Learning 1. Power up the PT-C-VGAHD. Connect display to HDMI Output. 2. To learn EDID from HDMI display, and bright to indicate the EDID learning process is complete. You DON’T NEED to pull up the DIP switch again unless you want to learn another EDID by pulling DIP switch 1 up and down. -
Page 8: Section 3: Notice
Type of CAT5/6 cable Shielding Wiring CAT5 CAT5e CAT6 Unshielded (UTP) Solid Shielded (STP) Unshielded (UTP) Stranded Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time www.purelink.de...
