Summary of Contents for PureLink PT-C-HDSDI

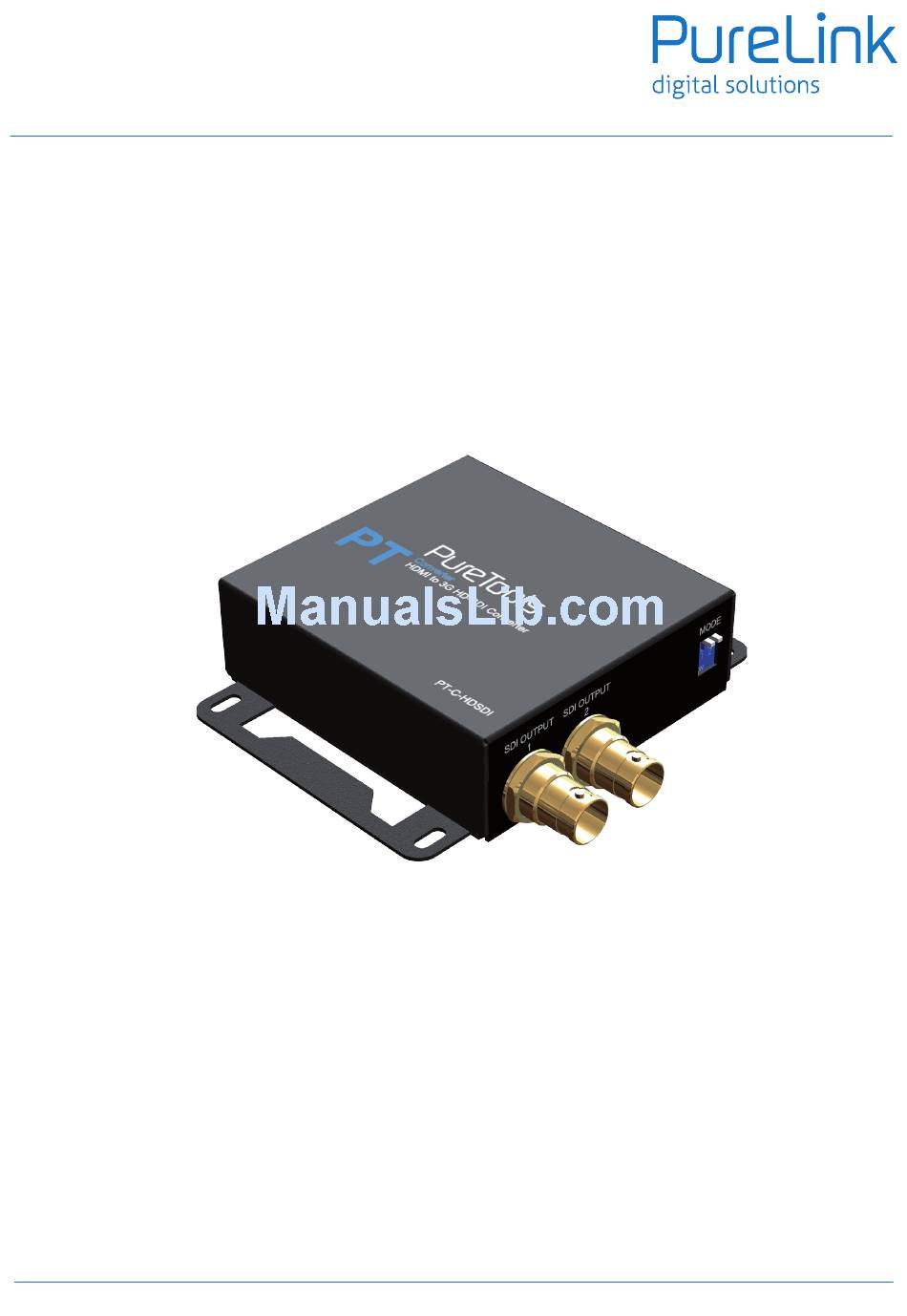

- Page 1 User Manual PT-C-HDSDI User Manual HDMI to 3G/HD/SD-SDI Converter Model PT-C-HDSDI Designed in Germany © 2016 PureLink GmbH All rights reserved.
-
Page 2: Table Of Contents
Please read all of these instructions carefully before you use the device. Save this manual for future reference. The PT-C-HDSDI HDMI to 3G/HD/SD-SDI Converter has been tested for conformance to safety regulations and re- quirements, and has been certified for international use. However, like all electronic equipments, the PT-C-HDSDI should be used with care. -
Page 3: Introduction
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The PT-C-HDSDI HDMI also provides 2 low jitter SDI outputs for daisy chain or multiple monitors. With the use of PT-C-HDSDI HDMI, the most popular uncompressed video interface in the consumer world is readily available for professional SDI equipments! 3. -
Page 4: Specification
User Manual PT-C-HDSDI 5. Specifications Item Description SDI standards 3G-SDI & HD-SDI & SD-SDI Auto HD/SD-SDI detection Video bandwidth [2.97Gpbs & 2.975/1.001Gbps] [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, Video support 1080p @23.98/24/25/29.97/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz Input signal... -
Page 5: Connection Diagram
User Manual PT-C-HDSDI 6. Connection Diagram... -
Page 6: Panel Description
User Manual PT-C-HDSDI 7. Panel Description Front Panel 1. HDMI IN: Connects to a HDMI source with a HDMI male-male cable 2. Power LED: Lights on when device is ready 3. Signal LED:Signal LED indicator 4. DC 5V: Interlocked +5V power jack Rear Panel 5. -
Page 7: Edid Learning
User Manual PT-C-HDSDI 8. EDID Learning Please make sure the Pin#1-Pin#2 of DIP switch is at On-On [ Connect the HDMI display to the HDMI port of TX. Power on TX. After LED turns to light, the EDID Learning procedure is completed. -
Page 8: 10. Warranty
10. Limited Warranty The SELLER warrants the PT-C-HDSDI HDMI to 3G/HD/SD-SDI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product...
