- Page 1 User Manual PT-C-HDADE User Manual HDMI Audio De-Embedder 4K (60Hz 4:4:4) Model PT-C-HDADE Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-C-HDADE Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation. - Page 3 PT-C-HDADE REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDADE complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-HDADE complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-C-HDADE SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 5: Package Content

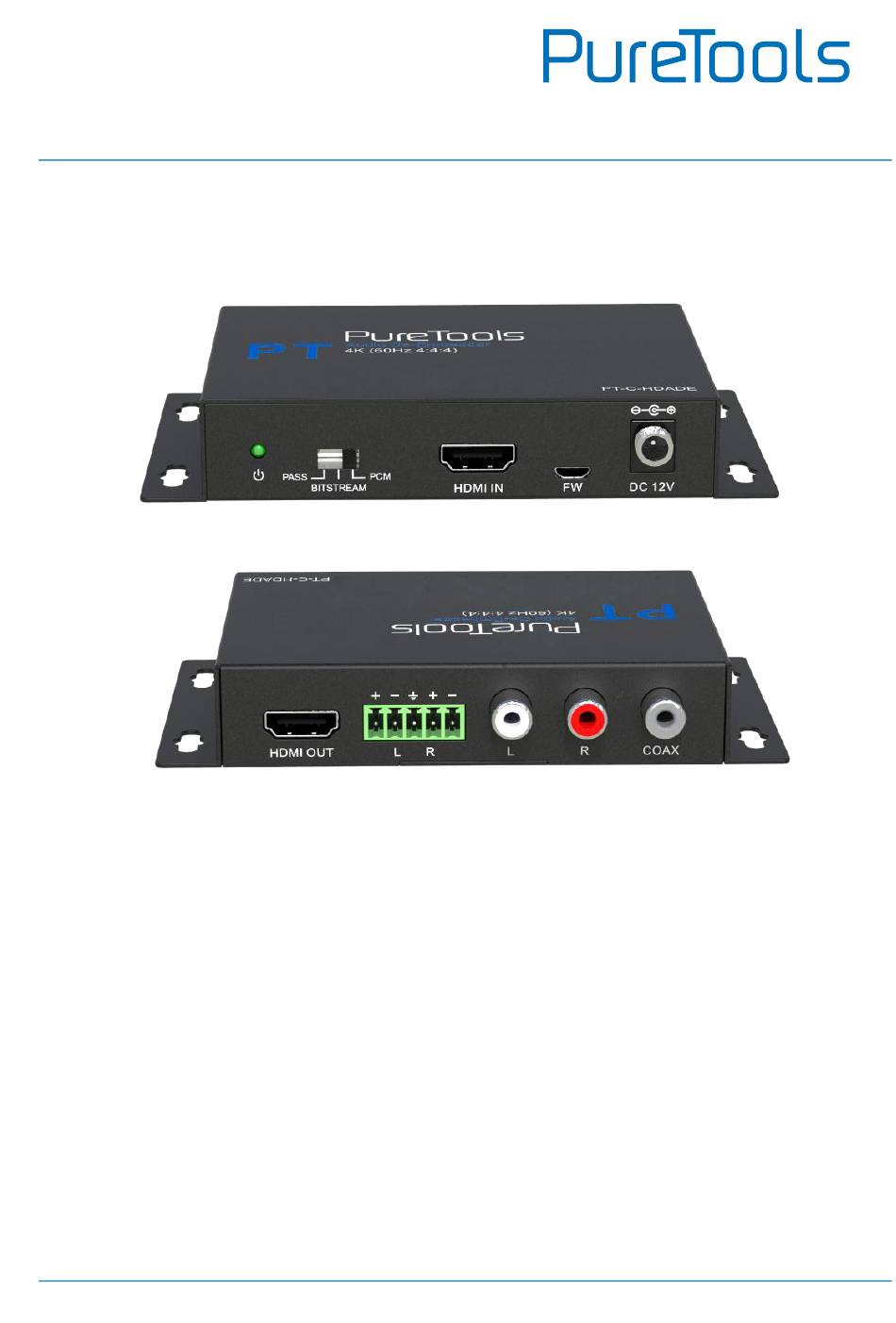

User Manual PT-C-HDADE Introduction to PT-C-HDADE The PT-C-HDADE is a small-size HDMI2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports. -
Page 6: Panel Description
User Manual PT-C-HDADE Panel Description PASS HDMI OUT COAX BITSTREAM HDMI IN DC 12V ① Bicolor LED: GREEN when powered on, Green when HDMI signal input. ② Audio Modes Switcher: PASS (default): The source device obtains its EDID from display. ... -
Page 7: Specification
User Manual PT-C-HDADE Specification Video (1) HDMI Input Input Connector (1) 19-pin type-A female HDMI 2.0, HDCP2.2 Output (1) HDMI Output Connector (1) 19-pin type-A female HDMI 2.0, HDCP1.4 Audio (1) Stereo balanced audio L/R; (1) Analog audio L+R ; Output (1) COAX (1) 5-Pin phoenix connector;... -
Page 8: System Diagram
User Manual PT-C-HDADE System Diagram Blu-Ray DVD HDMI OUT COAX HDMI: Audio: Speaker Amplifier... - Page 9 User Manual PT-C-HDADE After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
- Page 10 User Manual PT-C-HDADE...
- Page 11 User Manual PT-C-HDADE...
-
Page 12: Asking For Assistance
Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
