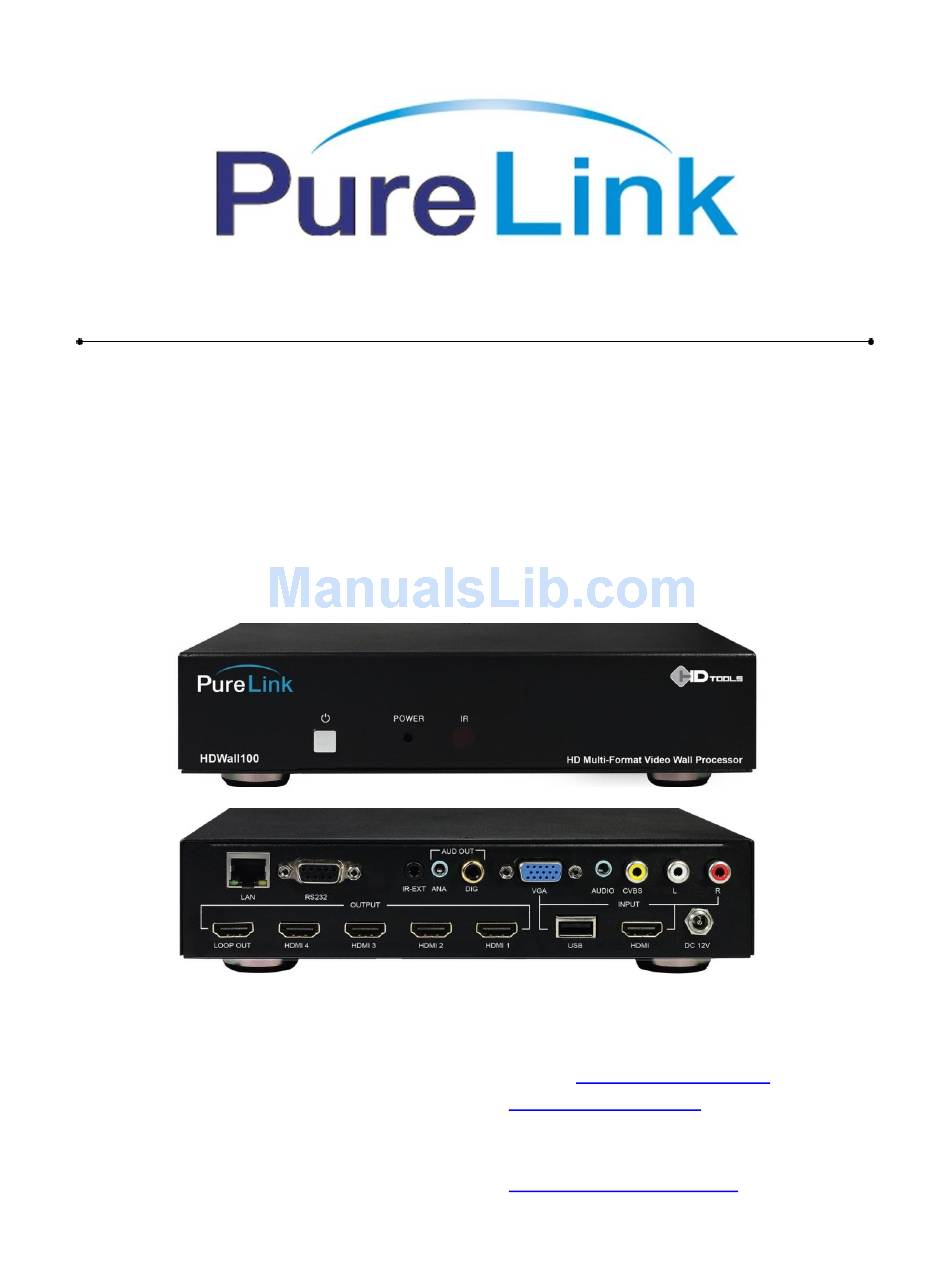

- Page 1 HDWall-100 Owner’s Manual 2x2 Multi-input Video Wall Processor PureLink E-mail: info@purelinkav.com 535 East Crescent Avenue www.purelinkav.com Ramsey, NJ 07446, USA Tel: 201.488.3232 For technical support, contact: Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Table Of Contents
Table of Contents 1-1 Package Contents 1-2 General Specification 1-3 Operation and Reliability Specifications 1-4 Main Features 1-5 Operation & Installation guide 1-8 Warranty Information p.22... -
Page 3: Package Contents
PureLink by Dtrovision 1-1 Package Contents Please make sure all of the following items are included in the package: 1) HDWall-100 2) 12V/2.5A DC Power Adapter 3) Owner’s Manual 4) Remote controller 5) 38KHz IR Receiver Cable 6) RS232 Cable... -
Page 4: General Specification
PureLink by Dtrovision 1-2 General Specification Welcome! Congratulations on your purchase of the PureLink HDWall-100 2x2 video wall processor. This manual contains information that will assist you in installing and operating the product. PureLink HDWall-100 support CVBS/VGA/HDMI/USB play input sources to be freely arranged on 4 displays. - Page 5 PureLink by Dtrovision HDCP Compliant Audio format PCM2, 5.1, 7.1 CH, Dolby 5.1, DTS 5.1 Power 12V/2.5A DC 7.5W Dimension (WxDxH) 9.84” x 4.64” x 1.25” (250 x 118 x 32 mm) Weight 2.31 lbs (1.05 kg) Connector Pin Assignment Part No.
-
Page 6: Operation And Reliability Specifications
PureLink by Dtrovision 1-3 Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 104F (0℃~ 40℃) Humidity : 20% ~ 90% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 7: Main Features
- RS232C - IR - Remote 8. Compact and Practical Design HDWall-100 has all of the ports, power supply jack and RS232 port in the back of the unit allowing it be mounted on any racks or with any other components. -
Page 8: Operation & Installation Guide
PureLink by Dtrovision 1-5 Operation & Installation Guide <Front View> 1. Power Button : Turn on/off power of the device 2. Power LED : The LED will illuminante green when the power is on, red when it is in 'Stand by' mode. - Page 9 PureLink by Dtrovision 4. DC 12V - Plug the 12V/2.5A DC power supply into the DC12V power in. Connections 2 x 2 TV wall 3 x 3 TV wall...
- Page 10 PureLink by Dtrovision TV wall connection sequence diagram 1x2(H) 1x3(H) 1x4(H) 1x2(V) 1x3(V) 1x4(V)
- Page 11 PureLink by Dtrovision Cascade 2...
- Page 12 PureLink by Dtrovision...
- Page 13 PureLink by Dtrovision Remote Control operation guide 1. Power : power on the device or to set it to standby mode 2. Rotate : rotate to 90 degree more, only for 1x2, 1x3, 1x4 TV wall mode 3. Input select : select the input source 4.
- Page 14 PureLink by Dtrovision TV wall controller guide Installation : Down load the software TVwallcontroller.exe to a PC. The software can be controlled with TCP/IP or RS-232. General page 1. Select RS232 COM or TCP/IP mode. 2. Select RS 232 COM port.
- Page 15 PureLink by Dtrovision Mode page 1. TV Wall mode selection 2. TV Wall picture bezel correction adjustment. See below PIC1 and PIC2 for the different between original image and image adjusted using bezel correction <PIC1. Original image>...
- Page 16 PureLink by Dtrovision <PIC2. Image adjusted with bezel correction> Setup page 1. Input source selection 2. Output resolution selection 3. Output mode selection 4. Audio out volume adjustment...
- Page 17 PureLink by Dtrovision Upgrade page Unit has two MCU(main and sub) which can be upgraded. 1. Main MCU upgrade - Press Open to select the FW file.(file extension is ".bin") - Press Upgrade to upload the file. - It will display a message once completed. (see image above) 2.
- Page 18 PureLink by Dtrovision Command operation 1.RS-232 Command: Baudrate：115200 Data width ： 8bit Parity: none Stop: 1bit Mode configure command package length is 18byte: [0x50+0x56+0x54+0x13+0x01+Modeindex(1~16)+0x00+0x00+0x00+0x00+0x00+0x00+0 x00+0x00+0x00+0x00+0x00+checksum] All you need to change is just”mode index”, ”checksum” Checksum=0x50+0x56+0x54+0x13+0x01+Modeindex(1~16)+0x00+0x00+0x00+0x00+0x 00+0x00+0x00+0x00+0x00+0x00+0x00 For example: Set mode 1 command:...
- Page 19 PureLink by Dtrovision Video wall X configure command package length is 18byte: 0x50+0x56+0x54+0x15+0x04+0x01+0x00+0x00+0x00+0x00+0x00+0x00+0x00+0x00+0x0 0+0x00+0x00+0x14 The red mean the X value increases,if mean decrease. Video wall Y configure command package length is 18byte: 0x50+0x56+0x54+0x15+0x05+0x01+0x00+0x00+0x00+0x00+0x00+0x00+0x00+0x00+0x0 0+0x00+0x00+0x15 The red mean the Y value increases,if mean decrease.
- Page 20 PureLink by Dtrovision Resolution index list 1080P 720P 1360X768 1024X768 Output Mode configure command package length is 18byte: 0x50+0x56+0x54+0x02+0x05+DVI/HDMI+0x00+0x00+0x00+0x00+0x00+0x00+0x00+0x0 0+0x00+0x00+0x00+ checksum For example: Set output mode DVI command: 50 56 54 02 05 00 00 00 00 00 00 00 00 00 00 00 F1...
- Page 21 PureLink by Dtrovision Input AUTO configure command package length is 18byte: 50 56 54 0A 0E 00 00 01 00 00 00 00 00 00 00 00 00 13 Input ZOOM configure command package length is 18byte: 50 56 54 0A 0F 00 00 01 00 00 00 00 00 00 00 00 00 14...
- Page 22 1-8 Warranty 2 (Two) Year Warranty Dtrovision warrants this PureLink HDWall-100 to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers.
- Page 23 PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
