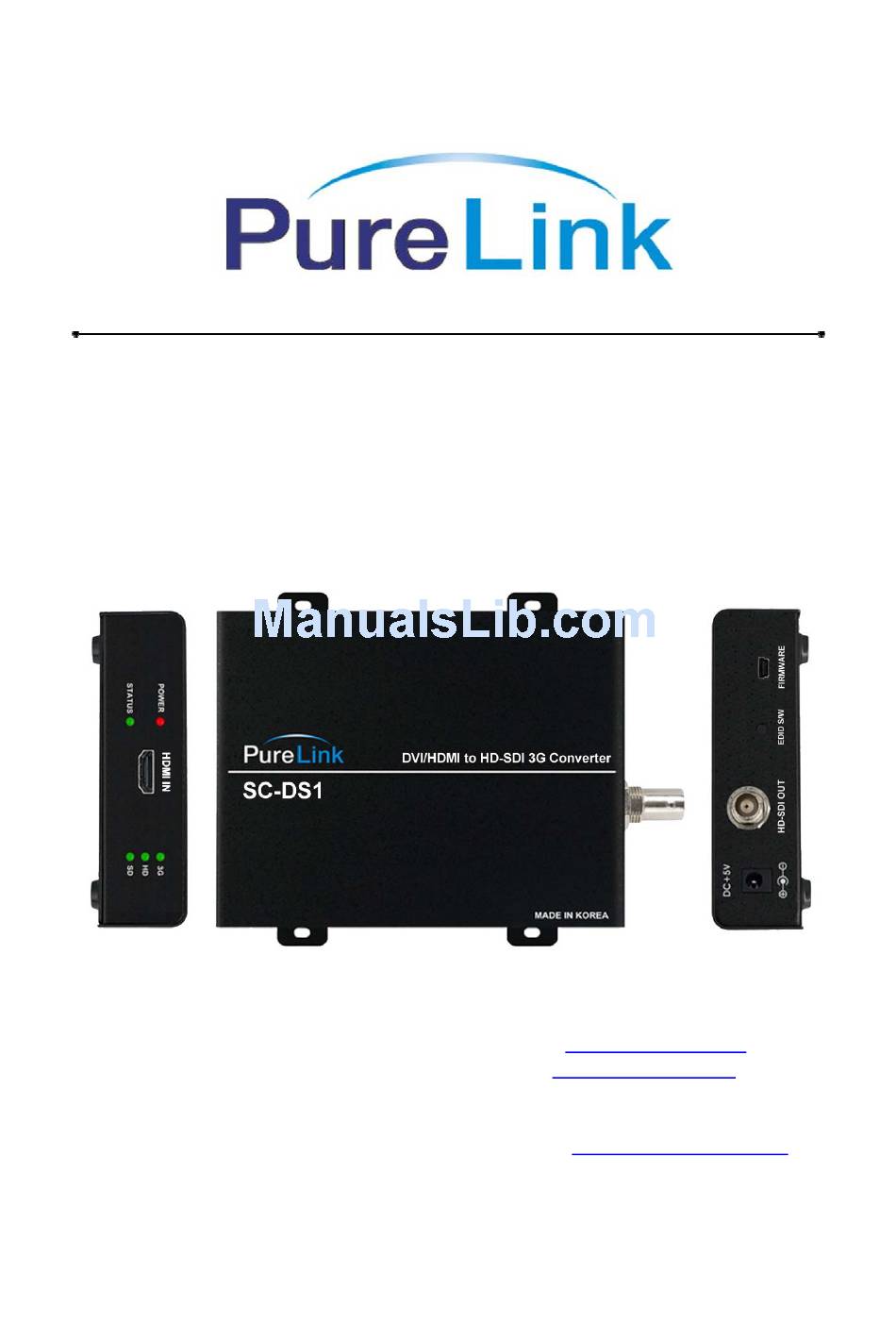

- Page 1 SC-DS1 Owner’s Manual DVI or HDMI 3G/HD-SDI Format Converter PureLink Website : www.purelinkav.com 535 East Crescent Ave E-mail : info@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Table Of Contents
Contents Contents p. 2 Description, Features p. 3 Product Specification p. 4 Environmental and Reliability Specifications p. 5 Video Connection p. 5 Mechanical Specification p. 6 Technical Specification p. 7 Warranty Information p. 8 Troubleshooting p. 9... -
Page 3: Description, Features
SC-DS1 does. Signal Amplification for signal reliability and long length signal transmission. SC-DS1 uses external DC 5V power to run an internal chipset, which was designed to tra nsmit high quality visual signal to long distance. Compact and Practical Design ... -
Page 4: Product Specification
PureLink by Dtrovision Product Specification ITEM DESCRIPTION Model Name SC-DS1 Input Signal HDMI/DVI Output Signal HD-SDI/SDI Resolution 480p~1080i/p DC Power Jack Receptacle BNC Female HDMI 19 Pin Female SMPTE Interface HDMI Ver 1.4 DDWG DVI 1.0 DC 5V Power Adapter(Included) -
Page 5: Environmental And Reliability Specifications
5%~95%, and altitude ceiling of 3,000 meters (9,840 feet) The SC-DS1 Converters expected to function for more than 50,000 hours of use at a 90% confidence level. The device is tested according to the identical standards for testing LCD monitors. -
Page 6: Mechanical Specification
PureLink by Dtrovision Mechanical Specification Dimension: 4.0 x 3.07 x 1.18 in. | 102 x 78 x 30 mm Front part DC 5V: DC 5V power input port HD-SDI Out: HD-SDI Output port(Loop Back) EDID S/W : Switch for loading EDID S/P : Service port for firmware upgrade. -
Page 7: Technical Specification
PureLink by Dtrovision Technical Specification Input - Data Format HDMI( YCbCr(4:2:2)) Input Resolution SC-DS1 Up to Full HD(1920*1080p) 1080p @ (60/59.94) 1080i @ (60/59.94/50) Input Signal 1080p @ (25/24/23.976) 720p @ (60/59.94/50) 480i @ (59.94) Input signal standard HDMI Input connector type... -
Page 8: Warranty Information
PureLink by Dtrovision Manufacturer’s Warranty (2-Year) PureLink warrants this SC-DS1 DVI or HDMI to 3G/HD-SDI Format Converter to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from PureLink or its authorized resellers. -
Page 9: Troubleshooting
PureLink by Dtrovision Troubleshooting The SC-DS1 Converter is designed for years of trouble free, please refer to the troubleshooting chart below if experiencing trouble with the device. Problem Solution 1. If you are using copper based HDMI cable, overall length of...
