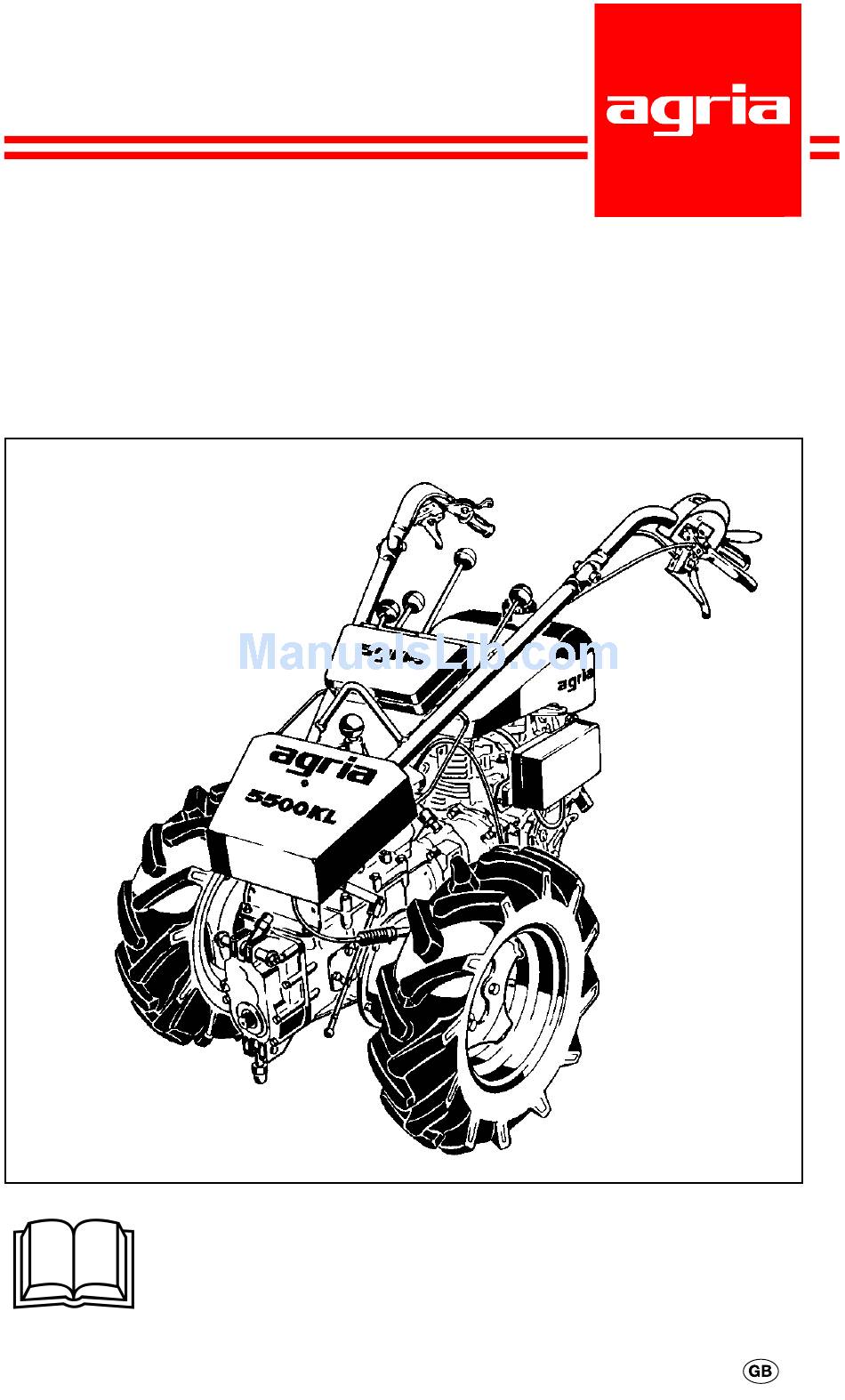

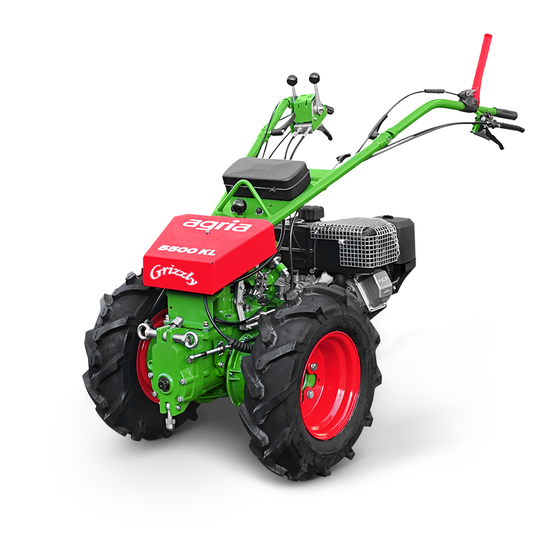

Power Machines for Soil Cultivation,
Grass and Property Maintenance
Operating Instructions
for AGRIA
5500 KL
with engine EH 34
3368
Before commissioning the engine, read operating instructions
and observe warnings and safety instructions.
Operating instructions No. 998 719
®
Municipal Tool Carrier
03.95
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Agria 5500 KL
Summary of Contents for Agria 5500 KL
- Page 1 Power Machines for Soil Cultivation, Grass and Property Maintenance Operating Instructions ® for AGRIA Municipal Tool Carrier 5500 KL with engine EH 34 3368 Before commissioning the engine, read operating instructions and observe warnings and safety instructions. Operating instructions No. 998 719...
-
Page 2: Table Of Contents
Fig. C + D ........ 40 4. Commissioning and Operation Commissioning the Machine ..23 Starting the Engine ......25 Switching off the Engine ....26 Operation ........27 Note for Mowing ......27 Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 3: Symbols, Name Plate
We reserve the right for improvements without changing these instructions. Forward Reverse Brake This delivery comprises: Open (unlocked) Operating instructions Municipal tool carrier Closed (locked) Tool kit Edition Edition 03.95 03.95 Municipal Tool Carrier 5500 KL Municipal Tool Carrier 5500 KL... -
Page 4: Maintenance And Repair
Only Do not add oil to petrol. use suitable tools for pulling the fly- wheel. Municipal Tool Carrier 5500 KL Edition Municipal Tool Carrier 5500 KL Edition 03.95 03.95... -
Page 5: Designation Of Parts
Designation of Parts Edition Edition 03.95 03.95 Municipal Tool Carrier 5500 KL Municipal Tool Carrier 5500 KL... - Page 6 9 Shifter for forward-reverse change 10 Eccentric lever for central brake 11 Shifter for PTO drive 12 Speed control lever 13 Hand lever for steering brake clutch, right Municipal Tool Carrier 5500 KL Edition Municipal Tool Carrier 5500 KL Edition 03.95 03.95...
-
Page 7: Safety Instructions
Com- pliance is for your own safety. When transporting the machine on ve- hicles or trailers outside the area to be mowed, ensure that the engine is turned off. Edition 03.95 Municipal Tool Carrier 5500 KL... - Page 8 For operation in enclosed areas, ensure Never adjust the operating handles dur- that a safety distance is kept to enclo- ing work – danger! sures to prevent damage to tools. Municipal Tool Carrier 5500 KL Edition 03.95...
- Page 9 If machine is equipped Do not transport the dismounted cutter with ignition key, remove the key. For all bar without protective strips. other versions, remove spark plug con- nector. Edition 03.95 Municipal Tool Carrier 5500 KL...
- Page 10 Snow Clearing Only use original AGRIA spare parts. All Ensure snow dozer is mounted correctly! other commercial spare parts must cor- Wear slip-proof shoes.
- Page 11 Empty them in ventilated places safe from spark forma- tion or flames. If necessary, dispose of tins in hazardous waste deposits. Edition 03.95 Municipal Tool Carrier 5500 KL...
- Page 12 Do not work without protective covers mounted. Before starting the engine, bring covers in proper position. With engine running, keep at a safe dis- tance from cutting knife. Municipal Tool Carrier 5500 KL Edition 03.95...
-
Page 13: Specifications
Dimensions [mm] ca. 920 1320 see track width plan Track Width Plan [mm] Tyres: A (twin-wheel) A (strake-wheel) 4.00-8 980/1100 1070 5.0-10 995/1155 1120 16x6,50-8 21x11.00-8* * = with intermediate flange 5519 031 Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 14: Gearbox
5400 531); maximum exposition time is 8 hours. Height-adjustable; side-adjustable with- out tools. * Licenser is Frauenhofer Gesellschaft zur Förderung der angewandten Forschung e.V. (German society for the promotion of applied research). Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 15: Engine
Fuel tank capacity: ..approx. 8 l Operability on Slopes: Engine is suited for use on slopes (with oil level at “max” = upper level mark) Continuous operation possible: up to 45° inclination (100%) Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 16: Devices And Operating Elements Engine
High engine speed is harmful full throttle. to any engine and consider- ably affects its durability. This applies especially for no load opera- tion. Any overspeed (have the engine roar) can result in immediate damage. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 17: Engine-Off-Switch
(pawl (engine is off). locked in place). Otherwise Caution – engine continues running due clutch problems may result due to to centrifugal mass. corrosion. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 18: Gearbox
Change gears 1 – 2 – 3 – 4 with shifter ward speed engaged, the municipal tool (B/7). carrier turns left. There is no neutral position between these gears. When turning on banks, al- ways turn the machine to- wards the slope. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 19: Central Brake
(release ball lever back to original position – brake is handle while doing so) until bolt locks released. into place (check). Note: There is only one swivel position on the left and right respectively. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 20: Drive-Wheels
Use a grease gun to lubricate wheel flange nipple (with Bio-grease) after Differential Hubs with every 50 operating hours. Anti-Wind-on Pipes Item No. 5616 511 (without wheels) Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 21: Extra Wide Drive-Wheels
Make sure that wheel carriers point to machine, when looked into travel di- rection (see fig.). Extra Wide Drive-Wheels Item No. 5490 611: 16 x 6.50 - 8 Terra Grip Usage: Mowing on soft (boggy) ground. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 22: Coupling And Decoupling
(N/4) on the attachment to position “AUS/OFF”. Coupling sleeve should slightly be greased with Bio-lubrication grease. Remove PTO cap from basic machine. Slide pegs (N/2) of basic machine into hooks (N/3) of attachment. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 23: Commissioning And
Do not cause fuel tank to overflow, but leave a 5 mm margin for the fuel to ex- pand. Edition 03.95 Municipal Tool Carrier 5500 KL... - Page 24 (A/3) (check with machine parked in horizontal position). Lower notch shows minimum oil quantity, up- per notch maximum quantity; Municipal Tool Carrier 5500 KL Edition 03.95...
-
Page 25: Starting The Engine
After the start, carefully let rope glide back. Do not let snap. Once the engine has started, let it warm up for some time. Slowly push choke back into operating position, if necessary. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 26: Switching Off The Engine
This ensures carburetor to be empty and no resin residue to de- posit. Secure municipal tool carrier against unauthorized use – disconnect spark-plug con- nector. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 27: Operation
Slowly release hand clutch lever while pressing the throttle. For direction change from reverse to Mowing on Mowing on forward, proceed in reverse order. plain surfaces slopes Never leave municipal tool carrier unattended with the engine running. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 28: Maintenance
(do not screw in), take out dip-stick and read oil level. In case oil level is below lower mark, refill engine oil (refer to “Specifications”) until oil level reaches rim of oil filler neck. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 29: Air Filter
Exchange spark plug after approx. 100 tap out dust) and replace it after every operating hours. 50 operating hours or at least once a year. Foamed pre- liminary filter 0.6–0.7 mm Paper filter element Air filter Edition 03.95 Municipal Tool Carrier 5500 KL... - Page 30 Check exhaust system (D/4) on a regu- lar basis for plant trash and clean, if nec- essary. Otherwise danger of fire results. Check each time before you take the municipal tool carrier into operation. Municipal Tool Carrier 5500 KL Edition 03.95...
-
Page 31: Idling Speed
Keep governor spring, speed control le- ver and linkages free from dirt and plant trash at all times. 1 Idling speed mix control screw 2 Idling speed control screw 3 Idling speed air jet Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 32: Machine
(A/16) extremely clean as well as surrounding parts to prevent dirt from penetrating into the gearbox. Open drain screw, collect old oil in proper container and dispose of prop- erly. Check sealing washers and ex- change, if necessary. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 33: Steering Handle
1 Stop buffer Re-tighten hexagonal nut (lock). 2 Lock nut for stop buffer 3 Adjustment nut for steering handle central mounting 4 Lock nut 5 Fastening nut for steering handle Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 34: Hand Lever Adjustment
For this purpose, contact your AGRIA workshop. Hand clutch lever: X = 3–5 mm (clutch play) Hand lever for steering brake: X = 3–5 mm Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 35: General Maintenance, Cleaning
Apply grease gener- ously to leave a grease neck around bearing to prevent water, plant sap and dirt from penetrating. Edition 03.95 Municipal Tool Carrier 5500 KL... -
Page 36: Storage
Do not inhale vapours! In case of sickness and vomiting see a doctor immedi- ately! In case of eye contact with liq- uids, rinse eyes thoroughly. Municipal Tool Carrier 5500 KL Edition 03.95... -
Page 37: Troubleshooting
6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or en- gine repaired by your AGRIA workshop. They have the proper tools. Improper re- pairs can only add to the damage. Problem Possible cause Possible solution Page... - Page 38 Clutch slips - Hand clutch lever misadjusted Adjust clutch free play - Worn out clutch Exchange clutch disc Excessive - Loosened screws Tighten fastening screws vibration = For this purpose contact your AGRIA workshop. Municipal Tool Carrier 5500 KL Edition 03.95...
-
Page 39: Lubricants, Varnishes
604 79 Spring balance Lists of Spare Parts 997 012 Municipal tool carrier 5500 997 083 Attachments for 3400/5500 997 077 Robin Engines 997 062 Cutter Bars Edition Edition 03.95 03.95 Municipal Tool Carrier 5500 KL Municipal Tool Carrier 5500 KL... - Page 40 7 Recoil starter/cooling-air screen 1 Engine no. 2 Engine oil drain screw 3 Engine oil filler screw with oil dip-stick 4 Exhaust with exhaust guard 5 Fuel tap Municipal Tool Carrier 5500 KL Edition Municipal Tool Carrier 5500 KL Edition 03.95 03.95...
-
Page 41: Diagram: Electric Circuit
1 Engine 2 Magnet ignition system 3 Engine-off-switch 4 Switch in clutch lever 5 Switch in safety lever bl = blue br = brown rt = red Edition Edition 03.95 03.95 Municipal Tool Carrier 5500 KL Municipal Tool Carrier 5500 KL... -
Page 42: Lubrication Plan
Inspection and Maintenance Chart Lubrication Plan Municipal Tool Carrier 5500 KL Edition Municipal Tool Carrier 5500 KL Edition 03.95 03.95... -
Page 43: Conformity Declaration
AGRIA-Werke, GmbH D-74215 Möckmühl/Württ. herewith declare in sole responsibility that the product Municipal Tool Carrier, Type 5500 KL to which this declaration refers, corresponds to the standard fundamental safety and health requirements as stipulated in EC-directive 89/392/EEC and EMC-directive 89/336/EEG. - Page 44 Two-wheel tractor Self-propelled ride-on Verticuter Lawn mower lawn mover ® AGRIA -- a tradition of quality Contact your authorised AGRIA dealer for service and prompt delivery of spare parts AGRIA-Werke GmbH, D-74215 Möckmühl, Phone 0049 62 98/39-0, Fax 0049 62 98/39-111...
