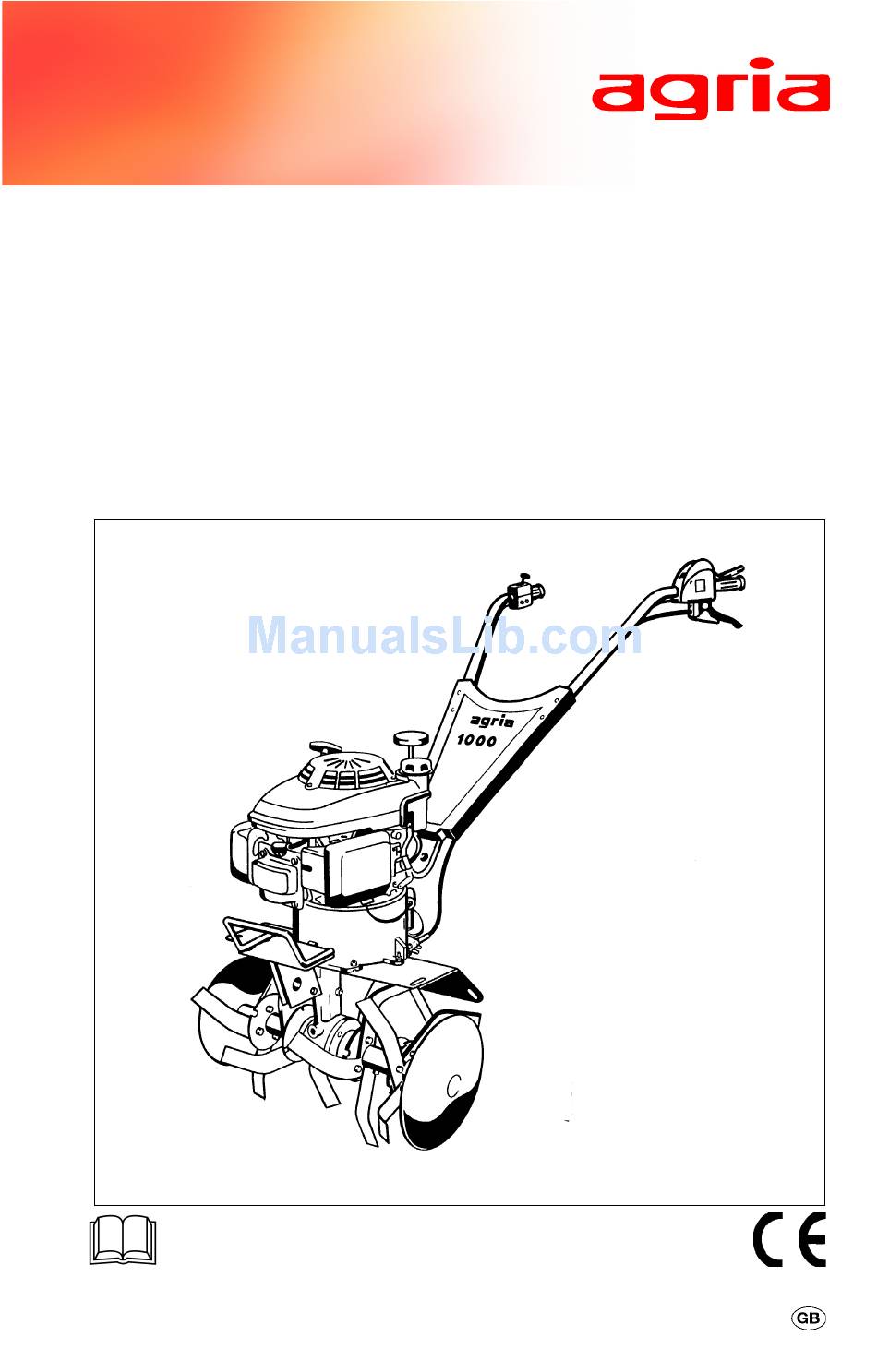

Operating
Operating
Operating
Operating
Operating
Instructions
Instructions
Instructions
Instructions
Instructions
Power Hoe
Power Hoe
Power Hoe
Power Hoe
Power Hoe
1000
1000
1000
1000
1000
1000 531
Honda engine
4189
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 742-A 12.07
Advertisement
Table of Contents
Related Manuals for Agria 1000
Summary of Contents for Agria 1000
- Page 1 Instructions Power Hoe Power Hoe Power Hoe Power Hoe Power Hoe 1000 1000 1000 1000 1000 1000 531 Honda engine 4189 Before commissioning the machine, read operating instructions and observe warnings and safety instructions. Operating Instructions No. 998 742-A 12.07...
-
Page 2: Scope Of Delivery
Please state these data when order- ing spare parts to avoid wrong deliv- Air filter eries. Only use original agria spare parts! Visual check Specifications, figures and dimen- sions stated in these instructions are not binding. No claims can be derived Clutch from them. -
Page 3: Designation Of Parts
Part Designations Power Hoe 1000... - Page 4 4 Oil fill plug, dip-stick 5 Air filter 6 Carburetor / speed control governor 7 Engine type no. / identification no. 8 Spark plug / spark plug connector 9 Exhaust with guard 10 Fuel tank 11 Fuel tap Power Hoe 1000...
-
Page 5: Table Of Contents
Safety circuit lever ......17 Clutch ..........17 Transmission ......... 17 Steering handle ......18 Hoeing tools ........19 Note folding-out page! Depth bar ........20 Front wheel ........20 Fig. A ........3 Ridging attachment ....... 21 Power Hoe 1000... -
Page 6: Recommendations Lubricants And Anticorrosive Agents
(do not apply on painted covers). You Maintenance and Repair can brush or spray the oil. Anti-corrosive agents are environmen- The trained mechanics of your agria tally friendly and degrade fast. workshop expertly carry out any main- tenance and repair work. -
Page 7: Unpacking And Assembly
Remove the machine from the box or cut it open in 4 corners to fold down the sides. Attach all hoeing tools and guards Attach depth bar Attach the rear support wheel Carry out the start-up procedure Power Hoe 1000... -
Page 8: Safety Instructions
When transporting the power hoe on vehicles or trailers outside the area to be cultivated, ensure that the engine is shut off. Careful with rotating tools – keep at a safe distance! Power Hoe 1000... - Page 9 In case of blockages in the attachment, shut off the engine and clean the attach- ment with an appropriate tool. In case of damage to the power hoe or to the attachment, immediately shut off the engine and have it repaired. Power Hoe 1000...
- Page 10 Secure the power hoe and attachments against rolling off (parking brake, wheel chocks). Beware of injuries while coupling attach- ments. Hitch attachments as specified and only couple at specified points. Power Hoe 1000...
- Page 11 Only use original agria spare parts. All Read and observe enclosed instruc- other commercial spare parts must cor- tions. respond to quality and technical require- ments specified by agria.
-
Page 12: Safety Instructions
With engine running, keep at a safe dis- tance from hoeing tools. Do not work without protective guards mounted. Before starting the engine, bring guards in proper position. Danger – foreign objects may get air- borne. Keep clear off machine while engine is running. Power Hoe 1000... - Page 13 Power Hoe 1000...
-
Page 14: Specifications
......... 130 mm d ........500 mm Front support wheel ... Ø 200x50 mm e ........600 mm h ......approx.1000 mm Weight: ......approx. 44 kg l ........1450 mm A ........600 mm Noise level:... -
Page 15: Engine
20° bef ore dead centre, radio remote screened according to Continuous operation possible up to VDE 0879 20° inclination (37 %) Valve lash (engine cold) Intake: ......0.15 ± 0.04 mm Outlet: ......0.20 ± 0.04 mm Power Hoe 1000... -
Page 16: Machine And Operating Elements
3. Machine and Operating Elements The power hoe agria type 1000 is suited Air Filter for all usual applications in horticulture, The air filter purifies the air intake. A in agriculture and forestry as well as in clogged filter reduces engine output. -
Page 17: Safety Circuit Lever
With the control lever pulled, this connection is disengaged and the tools come to a stop. Transmission The power hoe is equipped with a worm transmis- sion with one forward gear. Power Hoe 1000... -
Page 18: Steering Handle
(as shown in the figure); then swing it to the left or right. Release the pressure plate, slightly move the steering handle to the left and right until it locks into the toothing. Power Hoe 1000... -
Page 19: Hoeing Tools
Attach the hoeing tools to the shaft Secure them with the linch pin (2) using the hex head bolts (7) that go in which is inserted in the holes on hub the holes on the hubs and shaft. and shaft. Power Hoe 1000... -
Page 20: Depth Bar
Hoeing position: Press your hand on the wheel’s axle (see arrow in fig.) to unlock the bracket. Pivot the bracket up and lock it. Travelling position: Correspondingly, pivot the bracket down and lock it. Power Hoe 1000... -
Page 21: Ridging Attachment
Insert the ridging body’s bar (1) in its (K/13) and the clamping screw (14). bracket, insert the locking pin (2) as illus- trated and secure it with an R-clip (3). To adjust the working width, adjust the mouldboards (7) and the clamping screw (6). Power Hoe 1000... -
Page 22: Commissioning And Operation
Do not cause fuel tank to overflow, but leave a 5 mm margin for the fuel to expand. Note: For reasons of transport, the engine is not filled with engine oil! Before you operate the engine the first time, fill in engine oil (see page 28)! Power Hoe 1000... -
Page 23: Starting The Engine
Then pull hard and fast to pull the rope all the way out. After the start, let the rope glide back. Do not let it snap back. Set the speed control lever slowly to ”min”. Power Hoe 1000... -
Page 24: Shutting Off The Engine
Have the engine cooled down before parking the power hoe in closed rooms. The speed control lever also serves as engine shut-off le- ver. When necessary, move the speed control lever to STOP to stop the en- gine. Power Hoe 1000... -
Page 25: Hoeing
Shut off the engine and remove the spark plug connector. Remove jammed objects only by means of tools, e.g. a wooden stick. Working on slopes max. 20° During slope operation, always turn the machine (44%) towards the slope. Power Hoe 1000... -
Page 26: Maintenance
Only carry out an oil change with the en- gine warmed up. Transmission oil filler, drain, Check the transmission for oil leakages. and check plug Any damaged or leaking seals and O- O-ring rings must be replaced immediately. Power Hoe 1000... -
Page 27: Clutch Free Play
(3) out of bracket in clutch lever. Adjust the set pin (4) to a play of “X” or idling posi- tion at position “0”. Hook the cable end into the bracket with the set pin and fit retaining spring (2). Power Hoe 1000... -
Page 28: Engine
Alternatively, use a suction pump to pump the oil from the ma- chine. Dispose of the waste oil properly! Fill in fresh engine oil. Oil filling capacity and quality see specifications. Fill in the oil using a funnel or similar device where ever possi- ble. Power Hoe 1000... -
Page 29: Air Filter
Inspect the filter element carefully for holes or other damage and replace it if necessary. Replace the filter element Attach the cover and snap the latches (4) into place. Do not wash the paper element (tap it or blow it out). Power Hoe 1000... -
Page 30: Fuel System
Then crank the engine with the recoil starter a number of times. After- wards screw the spark plug in and move the speed control lever to "VOLLGAS"/ "FULL THROTTLE". Then start the en- gine via the recoil starter. Power Hoe 1000... -
Page 31: Engine
To do this, remove the recoil starter. See the illus- tration below. 2) Clean the internal cooling fins and surfaces at 100-hour intervals as a minimum (earlier in very dusty and trashy conditions). - Service 100 h Power Hoe 1000... -
Page 32: Exhaust System
To compensate for fuel, temperature, height or load variations, a slight carburetor re-adjustment may become necessary. Only let the engine run with the air filter and air filter cover mounted. - Service 1 Idle speed setting screw 2 Throttle stop screw Power Hoe 1000... -
Page 33: General
Engine Clean the engine only with a cloth. Avoid spraying with a pressure washer, as water might leak into ignition and fuel system, causing malfunctions. Power Hoe 1000... -
Page 34: Storage
- in rooms where lack of fuel fertilizer is stored - in stables or adja- add fuel stabilizer (agria No. 799 09). cent rooms. - Observe enclosed instructions. Let engine run for approx. 1 minute. Change the engine oil. -
Page 35: Varnishes, Wear Parts
O-ring for hoeing drive Ø16 x 22 x 2 711 65 Hoe blade, left 711 66 Hoe blade, right Spare parts list: 997 007 Power hoe 1000 711 65 711 66 Electrical Wiring 1 Engine 2 Magnetic ignition system 3 Engine OFF switch... -
Page 36: Troubleshooting
6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by your agria workshop. They have the proper tools. Improper repairs can only add to the damage. Problem Possible cause Possible solution Page Engine - Spark plug connector not connected... - Page 37 - Idling speed not properly adjusted Adjust idling speed idling position Tools slip - Too little clutch play Adjust clutch free play (overload clutch) = For this purpose contact your agria workshop. Power Hoe 1000...
-
Page 38: Inspection And Maintenance Chart
A = Each time before you take up operation B = After each cleaning K = Checks and maintenance to be executed by operator W = Maintenance to be executed by professional workshop * = after 2 years Power Hoe 1000... -
Page 39: Conformity Declaration
Conformity Declaration Power Hoe 1000... - Page 40 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
