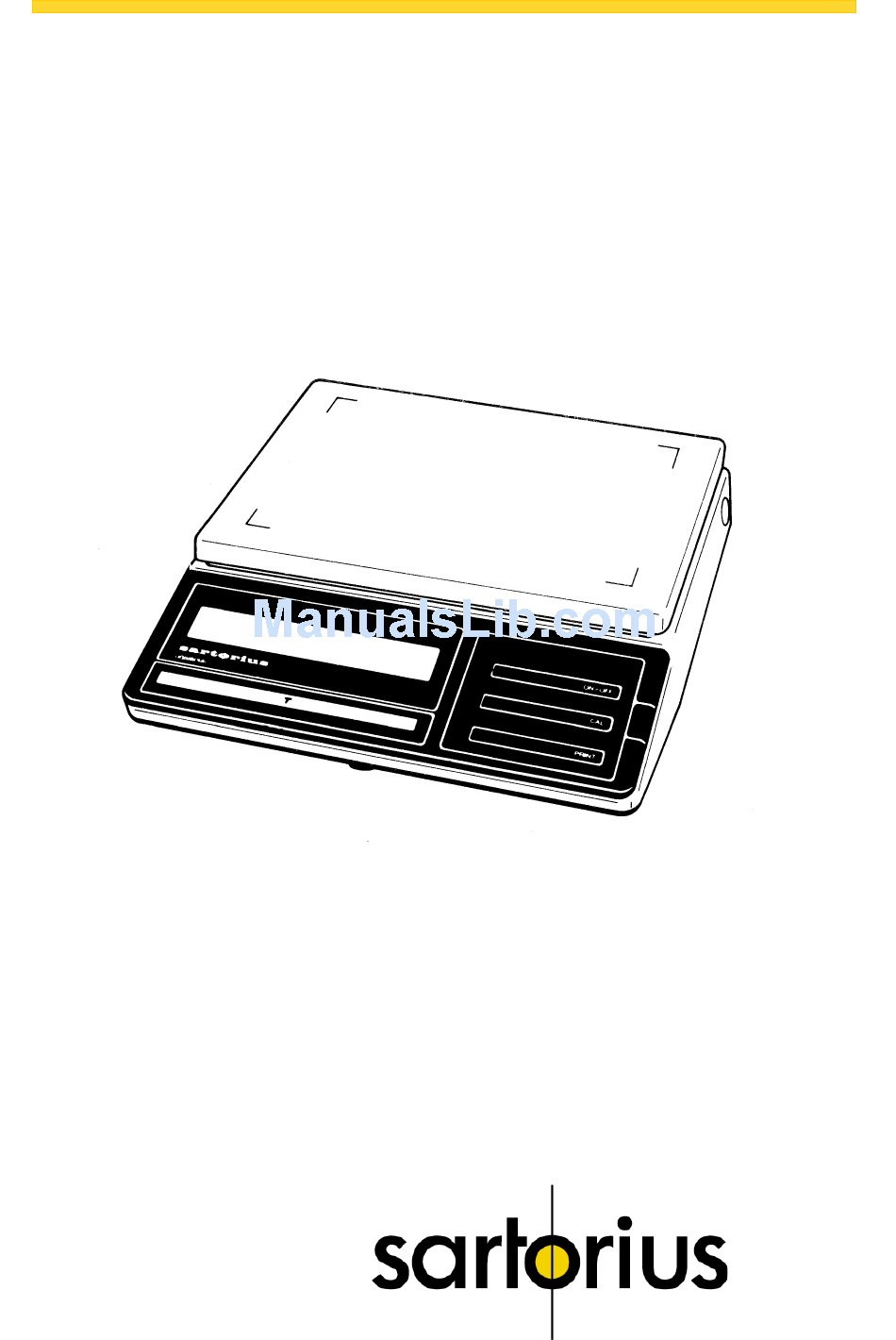

- Page 1 Sartorius Universal. U 3600, U 3600 P. U 3600 S-*F2 Installation and operating instructions...
- Page 2 Power connection, fuse, voltage selector Manufacturer’s label Unlocking switch Tare button CAL button ON/OFF button Weight display...
-
Page 3: Table Of Contents
Contents. Page Complete Consignment Startup Operation Calibration Balance Operating Program Technical data... -
Page 4: Installation Instructions
U 3600, U 3600 P. Before reading these instructions, fold out the first page with the exploded view drawing. With this Sartorius toploader you have acquired a sophisticated, top-of-the line electronic balance, which will help lighten your daily workload. Please read these Installation and operating instructions care- fully before operating your new toploader. -
Page 5: Complete Consignment
Complete Consignment. Please complete the guarantee card, indicating the installation date, and return to your Sartorius dealer. Complete consignment A complete consignment consists of the illustrated components. -
Page 6: Startup
Startup. Install the pan on your toploader. The operating voltage was set to 220 V at the factory. Adaptation to your local line voltage: set the voltage selector (2) to your line voltage. Write the new setting on the manufacturer's label (3). Whenever you change the voltage to 100/120 you must switch fuses: ex- change the T 160 mA fuse (2) for the T 315 mA fuse that is in- cluded in the toploader. -
Page 7: Operation
Operation. The weight display shows the following special Status messages for your Information: BUSY The processor is still busy processing a function and will not ac- cept any other commands to perform functions at this time. STANDBY The balance has been turned off with the ON/OFF key (5) and is now in the STANDBY mode and ready to operate without warmup. - Page 8 Press the ON/OFF key (7) to switch the balance on or off. You can also turn on the balance with the tare control (5). After the adapter has been plugged into a wall outlet, the weight display will go out when ever you turn off the balance. AII other electronic circuits will remain energized (STANDBY state).This means the balance is immediately ready to operate without re- quiring warmup the next time you switch it on.
-
Page 9: Calibration
Calibration. - is only possible with an accurate calibration weight. Please refer to "Accessories." Clear the pan and depress the QAL button for at least three seconds until the calibration weight appears in the display. Place the calibration weight in the center of the pan. Now the weight unit symbol appears, and a beeper Signals the end of the calibration procedure. -
Page 10: Balance Operating Program
Balance Operating Program. The balance operating program lets you adapt your balance to various ambient conditions and to different weighing require- ments and select the weight unit(s) commonly used in your country. At the factory we have set the codes for a Standard program, which is protected by a locking function to prevent ac- cidental changes. - Page 11 After the balance operating program has been called the display will show a continuous numerical sequence from 0 to 5 repre- senting the "page" selection, in addition to the Status code letter ''L" or "C.'' When the code number of your choice for the "page" appears, press the tare control.
- Page 12 C 1 3 1 Page Line Word Menu of the Balance Operating Program (Active Parameters) Code Ambient Conditions Code Program Lock Very stable U 3600 C 1 1 1 C 4 1 1 Stable U 3600 P C 1 1 2 C 4 1 2 Unstable C 1 1 3...
-
Page 13: Technical Data
Technical data. Model U 3600 U 3600 P Capacity 3640 600/1200/3640 Readability 0,01/0,02/0,05 Tare range (by subtraction) -3640 -3640 Standard deviation ≤±0,05 ≤±0,01/0,01/0,025 Max. linearity ≤±0,1 ≤±0,02/0,02/0,05 Stabilization time (typical) Display update 0,1 – 0,8 (selectable) Adaptation to ambient conditions and application requirements by selection of 4 optimized filter levels Stability range... - Page 14 All rights reserved. No part of this publication may be printed or translated in any form or by any means without the prior written permission of Sartorius AG. Sartorius AG reserves the right to make change to the technology, features, specification and design of the equipment without notice.
