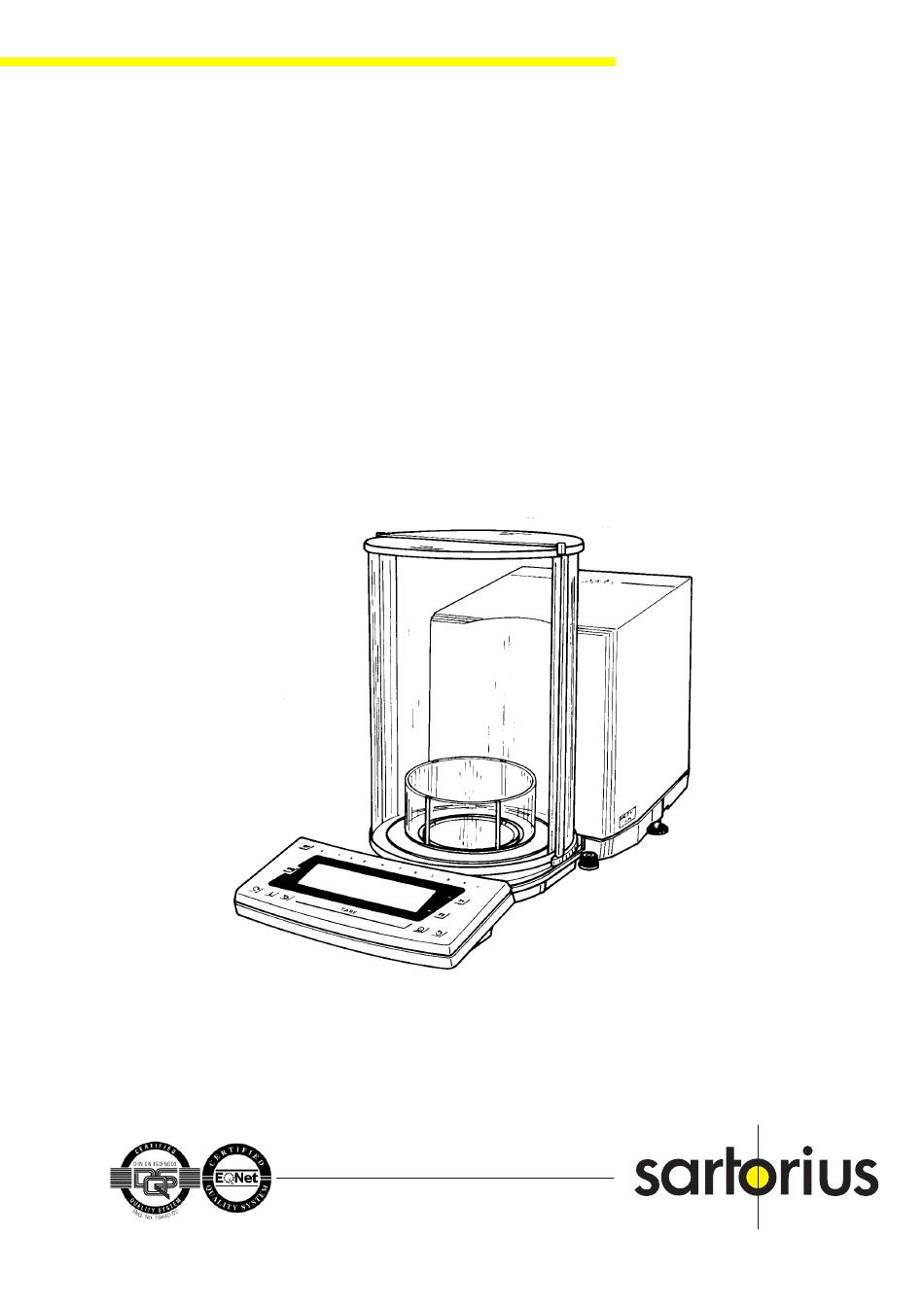

- Page 1 WMC5003–e96071 Sartorius Micro, Research Service Manual MC - * and RC - Balances * not MC 5 Sartorius AG, Weighing Technology...
-
Page 2: Table Of Contents
Contents Page General Information Service Prerequisites General View Service Tools and Equipment Accompanying Literature Key Functions Brief Operation Setting the ID Code / Time / Date ID Code for a GLP/GMP-compliant Record Time Date Displaying the Hardware and Software Versions Accessing the Balance Operating Menu and Setting a Menu Code Checking the Metrological Specifications... -
Page 3: General Information
Never perform any repairs on the weighing system. Defective units must be sent to your local SARTORIUS Repair Center or to the main factory in Goettingen, Germany. If you remove the seals (warranty stickers), you will forfeit all warranty... -
Page 4: General View
In addition to the appropriate tools, it is necessary to set up and operate your balance in a stable, clean work area that is free of vibrations and drafts. You will additionally need the following special tools for working on Sartorius Research Balances: Qty. -
Page 5: Brief Operation
SARTORIUS RC/MC-Balances Brief Operation Setting the ID Code /Time/Date – Turn the balance off – Turn the balance back on – While all segments are displayed, press the key (MC) or the RC-A-02.TIF (RC) briefly – Toggle between ID code “id,” time “tIM,” and date “dAt” by pressing the key (only MC) RC-A-25/PF-01/T-F1.TIF... -
Page 6: Date
Date MC: – Separate day, month and year by pressing the “.” key; e.g., 1 0 . 0 9 . 9 3 RC-A-26/PF-01/T-F2.TIF – Confirm by pressing STO – – Select between day, month and year using – Change setting with –... -
Page 7: Accessing The Balance Operating Menu And Setting A Menu Code
SARTORIUS RC/MC-Balances Accessing the Balance Operating Menu and Setting a Menu Code – Turn the balance off and back on again by pressing the key. RC-A-01.TIF – While all segments are displayed, briefly press the key (MC) or the key (RC). -
Page 8: Checking The Metrological Specifications
Checking the Metrological Specifications Prerequisites to Be Met before Checking the Metrological Specifications Place of Installation – room with a constant ambient temperature (± 0.5K*) – solid, level surface that is free of vibrations – no direct heat exposure (sun, heater etc.) –... -
Page 9: Standard Operating Procedure For Testing
SARTORIUS RC/MC-Balances Standard Operating Procedure for Testing Checking the Reproducibility (Standard Deviation) Test Weights: (E2 - individual weights , nominal mass values) Model Test weight RC210S 100g RC210P RC210D RC250S 100g MC210S 100g MC210P MC410S 200g Test Procedure (Weighing) 1) Unload and zero the balance. -
Page 10: Checking The Standard Deviation
Calculating the Standard Deviation Calculate the standard deviation using a suitable calculator or according to the following formula: = Individual weighed values ∑ − = mean value of the − Individual weighed values n = Number of weighings (6) Evaluation: The value calculated in this way must be within the permissible tolerances for reproducibility (standard deviation) given on the Service Specifications Sheet. -
Page 11: Checking The Internal Span Adjustment
SARTORIUS RC/MC-Balances Checking the Internal Span Adjustment Test Weights: (E2 - individual weights, calibrated) Model Test weight RC210S/P/D 200g RC250S 200g MC210S/P 200g MC410S 2 x 200g Test Procedure Write down the permissible tolerance of the span on the Balance Test Record. -
Page 12: Checking The Linearity
Evaluation The following conditions must be met: 1) At least two of the calculated values X1 to X3 must be less than or equal to the sum SU. 2) X4 must be within the permissible tolerance of the span. If these conditions are not met, you must proceed as follows: Condition 1) is not met: Adjust the internal linearity (hold down the tare key to select the menu item “LI”) and repeat the test as described in the section “Checking the Internal Span... -
Page 13: Adjustment
SARTORIUS RC/MC-Balances 10) Place the test weight P P P P P next to the tare weight T2 T2 in the center of the weighing pan and write down the displayed value G3. 11) Remove test weight P P P P P from the pan, and place the tare weight T1... -
Page 14: Bpi Mode
BPI Mode (RC Models): – Open the balance housing (see page 23). – Connect the balance to AC power, turn on the balance by pressing the key and wait for the balance self-test to finish; 0.0000 g will be dis- played (depending on the type of balance) at the end of the test. -
Page 15: Adjusting The Off-Center Load
SARTORIUS RC/MC-Balances Adjusting the Off-Center Load For this adjustment you will need: – The off-center adjustment key order number 6740–15. – The following weights: 200g for all models (not calibrated!) – Remove the two plastic caps (306) from the rear panel of the balance. - Page 16 – Please adjust only the side with the largest error. In our example it is position 3, consequently you have to adjust the left off-center load screw. – Please adjust the screws in small steps. After each change, check the off- center loading positions 1, 2 and 3 and, if necessary, readjust one of the off-center load screws.
-
Page 17: Linearity
SARTORIUS RC/MC-Balances Linearity Checking the Linearity: Important note: Check the linearity as described in the section “Checking the Linearity” on page 12). External Linearity Adjustment The RC-/MC-balance can be linearized in different ways: 1. the way explained in this service manual;... - Page 18 External Linearity Adjustment (only MC-Balances) Important Note! This adjustment should only be performed in exceptional cases and only on MC-balances (only on MC-balances you have the possibility to enter the exact weight values of the necessary linearity weights using the numeric keys).
-
Page 19: External Span Adjustment
SARTORIUS RC/MC-Balances External Span Adjustment Important: Usually the span adjustment should be performed using the internal adjustment weight. Only in special cases the RC-/MC-balances may be adjusted externally (e.g. if the span accuracy of the internal adjustment weight is out of tolerance). -
Page 20: Overwriting The Internal Linearity Weight
Overwriting the Internal Linearity Weight Important Note! The internal linearity weights only should be overwritten if: • balance was linearized externally • external span adjustment was performed • the linearity was tested externally with known weights (calculate a mean value out of 3 measurements) •... -
Page 21: Overwriting The Internal Calibration/Adjustment Weight
SARTORIUS RC/MC-Balances Overwriting the Internal Adjustment Weight Important Note! Usually the internal ajustment weights should be overwritten using the PSION server or the SARTOCAS program for personal computers and laptops. Only in exceptional cases (e.g. no service software available) the overwriting routine can be performed using the overwriting program of the balance. - Page 22 Internal Adjustment – Make sure that the balance operating menu is set to code “ 1 10 1 “ - internal calibration/adjustment accessible -. RC-A-23.TIF – Press the key (MC) or the key (RC) for at least 3 seconds when a stable readout is displayed.
-
Page 23: Preparatory Steps For Cleaning And Repair
SARTORIUS RC/MC-Balances Preparatory Steps for Cleaning and Repair Opening the Balance Housing – Disconnect the balance from AC power. – Remove the 4 threaded fasteners (212/213) from below the rear panel of the balance by turning them a few times. -
Page 24: Closing The Balance Housing
Installing PCBs and Enclosure Warning! The following steps are necessary only if you have cleaned the weighing system or exchanged the PCBs. – Install the lower part of the enclosure frame (211) along with the analog PCB (206), PCB holders (210) and weighing system on the base plate. –... -
Page 25: Exchanging The Draft Shield
SARTORIUS RC/MC-Balances Exchanging the Draft Shield Removing the Draft Shield – Disconnect the balance from AC power. – Remove the draft shield cover(s) (101/104) from the draft shield (111) and set it (them) aside. – Afterwards, remove the glass cylinder (102), along with the weighing pan (103), the shield ring (105) and the shield disk (106) from the weighing cell. -
Page 26: Installing The Draft Shield
Installing the Draft Shield – Remove the guide bushing (107) for the new draft shield (111) from the centering ring (108). – Install the new draft shield (111) and adjust it. – Fasten the new draft shield (111) in this position through the base plate using the screws (113). -
Page 27: Cleaning
SARTORIUS RC/MC-Balances Cleaning Cleaning the Weighing System Important Note: Cleaning is necessary only if the reproducibility of the weighing results is poor! Opening the Weighing System – Remove the screws (A1) from the side of the shield cover (301) and carefully lift off the cover. -
Page 28: Cleaning The Calibration/Adjustment Weight Operating System
Cleaning the Calibration/Adjustment Weight Operating System Exposing the Calibration Weight Operating System – Disconnect the balance from AC power. – Remove the draft shield cover(s) (101/104) from the draft shield (111) and set it (them) aside. – Afterwards, remove the glass cylinder (102), along with the weighing pan (103), the shield ring (105) and the shield disk (106) from the weighing cell. - Page 29 SARTORIUS RC/MC-Balances Checking the Weights for Dirt – Now check the weights for and remove any dirt. – Unscrew the upper weight stop (315) for the upper weight (314). – Do not touch the weight (314) with your fingers. Remove the weight (314) from the pan adapter (430) using a piece of cloth or leather.
-
Page 30: Repairing The Electronics
Repairing the Electronics When repairing RC-/MC-balances, we recommend that you exchange complete component groups if a defect is located, because the two PCBs form an integral unit. The temperature coefficient of both the analog PCB (206) and the digital PCB (204) has been adjusted at the factory. These PCB- specific data are stored in the analog EEPROM (IC220 / analog PCB) and in the AOC (IC107/ digital PCB). -
Page 31: Exchanging The Digital Pcb
SARTORIUS RC/MC-Balances – Place the complete display module (501 / 502) in front of the display housing (506),re-attach the grounding cable (^) in the housing (506), and plug the connecting cable (505) back into the display PCB (508). – Place the display module (501 / 502) into the display housing (506) and fasten it in place;... -
Page 32: Exchanging The Analog Pcb
Exchanging the Analog PCB – Open the balance (see page 23). – Remove the connectors (B, C, D and E) from the digital PCB (204) and unplug the cables from the mountings of the upper frame (208 / 211). – Remove the fastening screws (F) and digital PCB (204) along with the intermediate cover plate (205) and set them aside. -
Page 33: Exploded-View Diagram 1
SARTORIUS RC/MC-Balances Exploded-View Diagram 1 Index Designation Index Designation 101 Draft shield cover plate, interior 102 Glass cylinder of the draft shield 108 Centering ring 103 Weighing pan 109 Top part of the housing 104 Glass shield cover plate, exterior... - Page 34 Exploded-View Diagram 2 Index Designation Index Designation 201 Flexure (for grounding cable) 208 Enclosure frame (upper part) for PCB 202 Data interface 209 Insulation plate 203 Brace for interface port 210 PCB holder 204 Digital PCB 211 Enclosure frame (lower part) for weighing system 205 Intermediate cover plate 212 Fastener, short (for housing) 206 Analog PCB...
-
Page 35: Troubleshooting Guide
SARTORIUS RC/MC-Balances Troubleshooting Guide Error codes are displayed by a numeric code. All codes for operating sequence errors and operating errors have two digits The codes for hardware errors have three digits. These error codes enable you to identify the type of operating error. - Page 36 Err 53 Temperature sensor circuit Check temperature-compensating sensors; failure exchange PCB or return balance to the factory in Goettingen Err 54 Balance converter value below Check system; the balance is underloaded minimum limit Err 55 Balance converter value Check system; the balance is overloaded above maximum limit Err 62 Pressing...
-
Page 37: Quick-Reference Guide To The Balance Operating Menu
SARTORIUS RC/MC-Balances Quick-Reference Guide to the Balance Operating Menu Menü für Applikationen bis Vers.3.06 Wägebetrieb Aufstellort sehr ruhige Umgebung ruhige Umgebung unruhige Umgebung sehr unruhige Umgebung Normales Wägen / manuelles Dosieren normales Wägen manuelles Dosieren Stillstandsbreite 0,25 Ziffernschritt 0,50 Ziffernschritt... - Page 38 1. Bereich 2. Bereich 3. Bereich Anzeigenanpassung Externes Justieren Internes Justieren Kennwert-Test Externes Linearisieren Internes Linearisieren Mehrfach-Justieren Vollautomatisches Justieren >>isoCAL<< und Lin. Luftdichtebestimmung Wägen in drei Wägebereichen bei Standard-Waagen Anwahl der Bereiche...
- Page 39 SARTORIUS RC/MC-Balances...
- Page 41 SARTORIUS RC/MC-Balances...
- Page 42 SARTORIUS RC/MC-Waagen...
-
Page 43: Balance Test Record
25%, 50%, und 75% der Höchstlast und müssen kleiner oder gleich der zul. Toleranz für die Linearität sein. Datum: Stempel: Abweichungen liegen innerhalb der zul. Toleranzen Abweichungen liegen außerhalb der zul. Toleranzen Unterschrift: Bemerkungen: Sartorius AG, 37070 Göttingen Tel. (0551) 308-0, Fax. (0551) 308-289... - Page 44 37070 Göttingen Weender Landstraße 94–108, 37075 Göttingen (0551) 308-0, (0551) 308-935 Copyright by Sartorius AG, Göttingen, BR Deutschland. Nachdruck oder Übersetzung, auch auszugsweise, ist ohne schriftliche Genehmigung der Sartorius AG nicht gestattet. Alle Rechte nach dem Gesetz über das Urheberrecht bleiben der Sartorius AG vorbehalten.
