2 Installation

Important

Before you complete the installation and setup, do not remove the electrostatic attraction
film on the transparent enclosure. Otherwise it may result in injury.

After remove electrostatic attraction film, do not touch dome enclosure in case it may
leave stain.

Before the installation, please make sure the installation surface can sustain at least 3X
weight of the bracket and the camera.

2.1 Device Installation Introduction

Device of following product models: HDB/HDBW3202, HDB/HDBW3101, HDB/HDBW5202,
HDB/HDBW5302, HDB/HDBW5502, HDB/HDBW8301, HDB/HDBW8306.

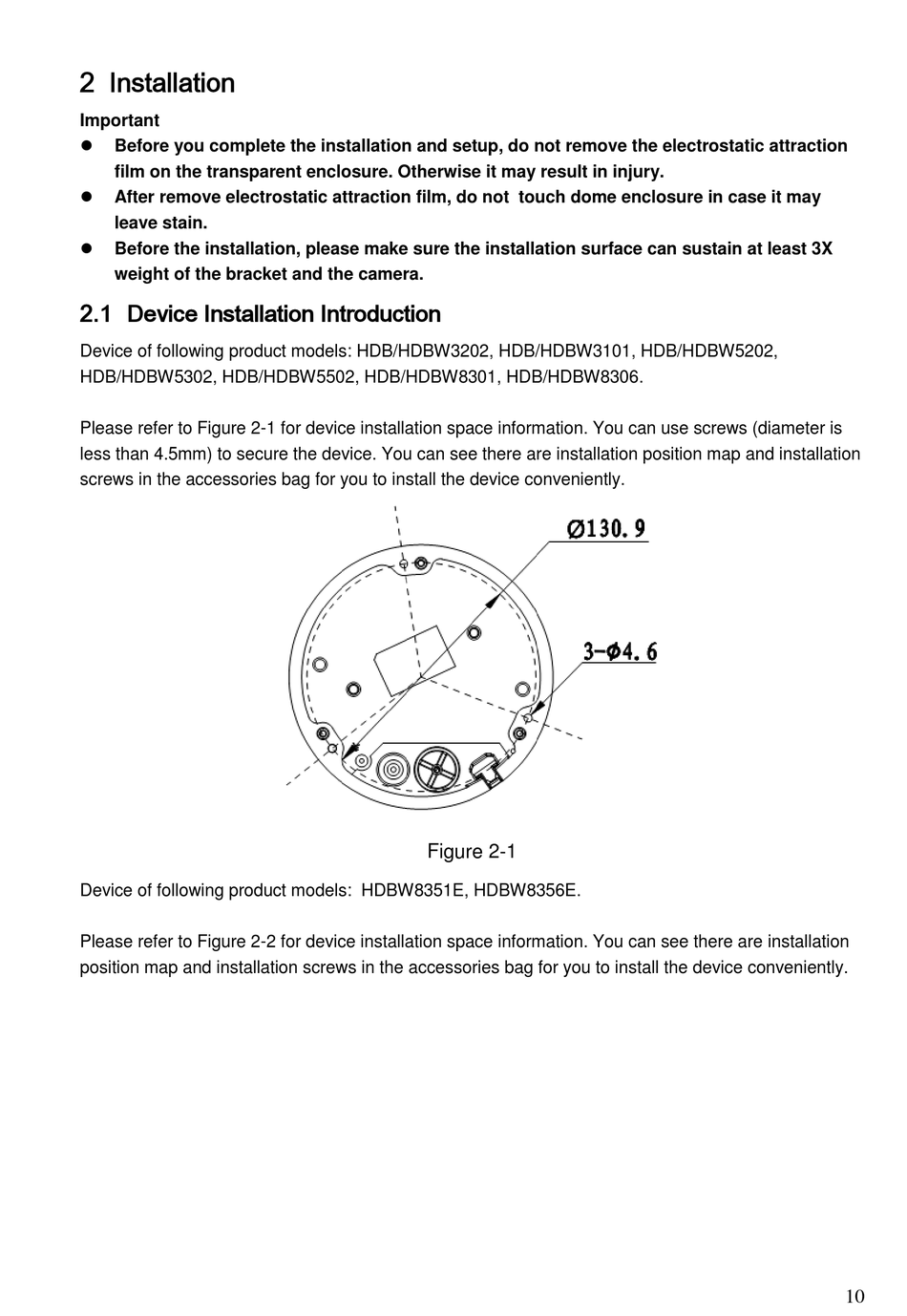

Please refer to Figure 2-1 for device installation space information. You can use screws (diameter is
less than 4.5mm) to secure the device. You can see there are installation position map and installation
screws in the accessories bag for you to install the device conveniently.
Device of following product models: HDBW8351E, HDBW8356E.
Please refer to Figure 2-2 for device installation space information. You can see there are installation
position map and installation screws in the accessories bag for you to install the device conveniently.
Figure 2-1
