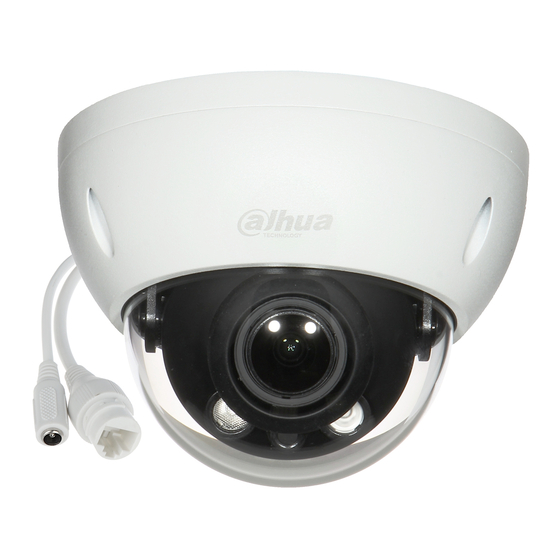

- Page 1 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Version 1.0.1 Zhejiang Dahua Vision Technology CO., LTD...
- Page 2 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Welcome Thank you for purchasing our network cameras. This user’s manual is designed to be a reference tool for using your product. Please read the following safeguards and warnings carefully before you use this series product.
- Page 3 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Do not directly touch the heat dissipation component of the device to avoid scald. Do not dismantle the device because there is no component that can be fixed by users themselves.
- Page 4 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Disclaimer This manual is for reference only. Please refer to the actual product for more details. Minor differences might be found in user interface, and there might be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable.
- Page 5 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Please refer to the disk for more details, check and download the corresponding user’s manual and tool. Before installation, please open the package and check all the components are included.
-
Page 6: Table Of Contents
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Table of Contents Device Structure ........................1 Device External Cable ....................1 Framework and Dimension ..................2 Device Installation ........................4 Install SD Card (Optional) ................... 4 Fix Device ........................4 Connect Device Cable .................... -
Page 7: Device Structure
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide 1 Device Structure 1.1 Device External Cable Note The following figures are for reference only, which are used to know each structure component and cable port functions. There are differences about wire structure for some product models, please refer to the actual object for more details. -
Page 8: Framework And Dimension
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Port Port Name Note Connect to DC 12V, please be sure to power the device according to the instruction of device label. Caution Power input port It may cause damage to the device if it fails to... - Page 9 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Figure 1-2 Figure 1-3...
-
Page 10: Device Installation
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide 2 Device Installation 2.1 Install SD Card (Optional) Note Please install SD card if the device is equipped with SD card slot and it needs to use SD card. -
Page 11: Connect Device Cable
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Figure 2-2 Step 1 Take out installation position map and stick it on the mounting surface according to monitoring area. Step 2 Dig expansion bolt bottom holes according to the hole sites with cross mark on the installation position map, insert the expansion bolts into the mounting holes and lock them firmly. - Page 12 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Connect network cable to corresponding network port of the device cable according to “Install Waterproof Connector (Optional)”. Connect Alarm Input/output Port Note Some models do not support alarm function, which cannot be applied to this chapter.
- Page 13 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Figure 2-4 Figure 2-5 Step 3 Log in WEB interface, make corresponding settings upon alarm input and output on the interface of alarm setup. Alarm input of WEB is corresponding to the alarm input of I/O port cable. It is to set corresponding NO, NC input according to the high and low level signal generated when alarm happens for alarm input device.
-
Page 14: Adjust Device Angle
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Pull the network cable without crystal head through main body of waterproof connector, fixing rubber ring and waterproof locking cover, make the crystal head of network cable, and then insert it into the network cable. -
Page 15: Fix Outer Cover
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Note For motorized vari-focal lens, it needs no adjustment during installation, but it needs to confirm monitoring range during installation, it is better to confirm result via mutual switch between W and T. -
Page 16: Network Configuration
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide 3 Network Configuration You can initialize the device and modify IP address via "Quick Configuration Tool"; you can also initialize device and modify IP address on the WEB interface. Please refer to the WEB Operation Manual in the disk for more details. -
Page 17: Modify Ip Address
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Figure 3-1 Step 5 Set new password and confirm password, select Email Address and input email address. Note The password can be set as 8 to 32 characters; it can be a combination of number(s), letter(s) and symbol(s) with at least two kinds of them (excluding “'”,“"”,“;”,“:”,“&”). -
Page 18: Login Web Interface
Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Select the devices whose IP addresses need to be modified, and then click . The system will display the dialog box of Modify IP Address, which is shown in Figure 3-2. - Page 19 Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide Figure 3-3 Zhejiang Dahua Vision Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com Website: www.dahuasecurity.com...
