Step 1
Slightly loosen the adjusting screw E and push the adjust screw E to make it swing. Adjust the lens
focus to the proper position according to the displayed video.
Step 2
Slightly loosen the adjusting screw F and push the adjust screw F to make it swing. Adjust the lens to
get the clear video and then fix the adjusting screw firmly.
Step 3
When you are securing the adjusting screw F, you can see the video may become blur. Please push
the adjusting screw E to adjust the video slightly. Please secure the adjust screw E if you get a clear
video.

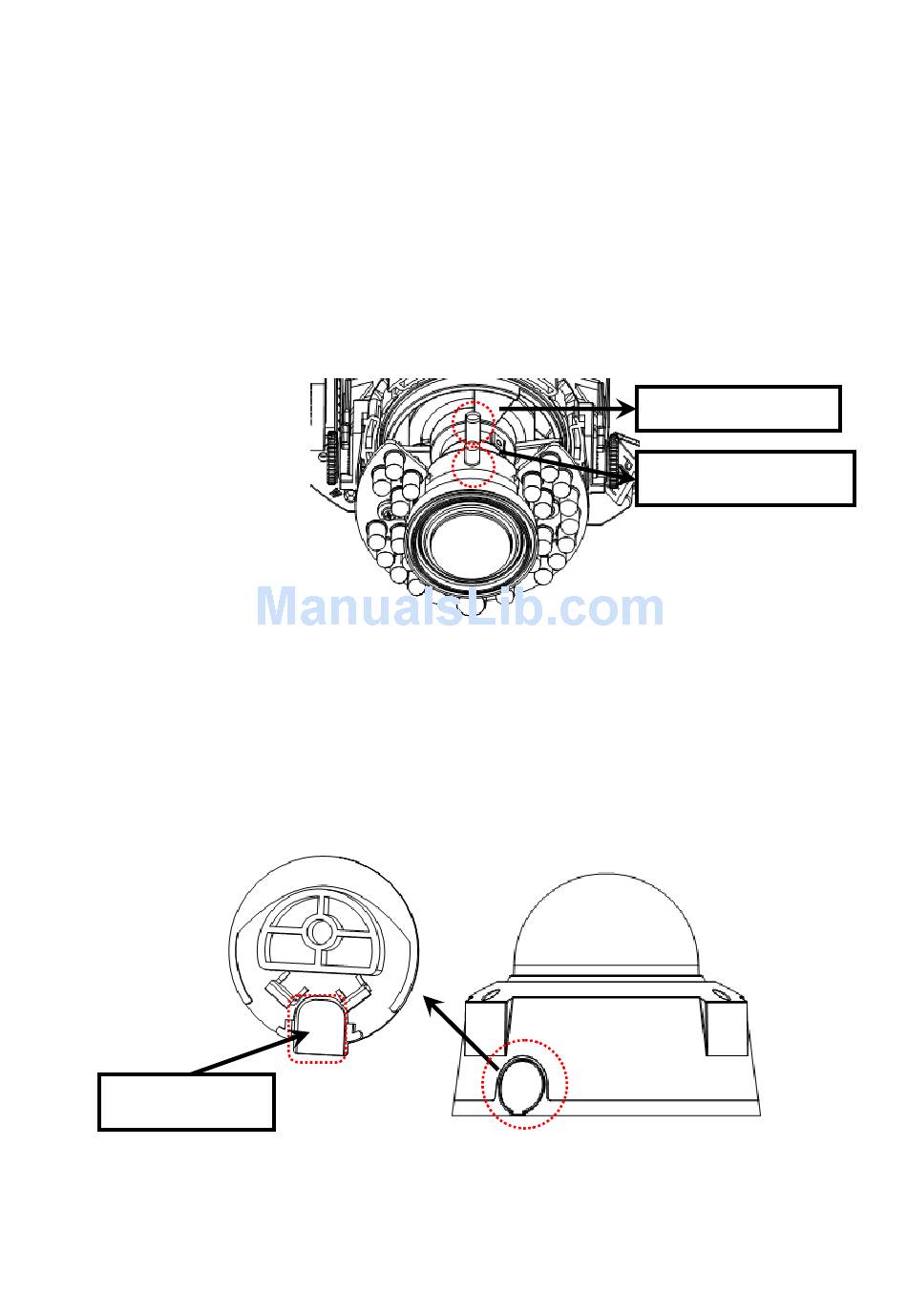

2.2.3 Side Cable Exit

If you adopt side cable exit when you are installing the device, you need to remove the plastic
decoration plug from the side of the chassis. Use the proper tool to dig through the part specified in
Figure 2-10 to form a cable exit. Put the plastic decoration plug back to the chassis and then pull the
cable through the side panel of the chassis.
Dig through here
For some special user, he may need the metal protection tube to protect when he pulls through the
cable from the side cable. There is PG11screw thread port when you pull through the cable from the
Figure 2-9
Figure 2-10
Adjusting Screw E
Adjusting Screw F
15
