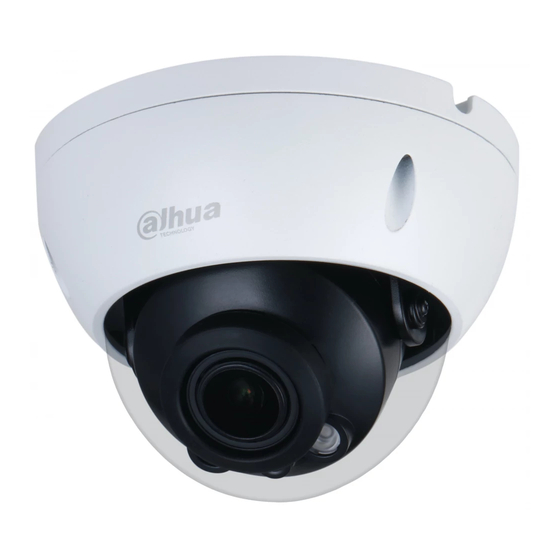

- Page 1 Vari-focal Dome Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. - Page 3 Quick Start Guide Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device. If there is any uncertainty or controversy, please refer to our final explanation. ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical safety All installation and operation should conform to your local electrical safety codes. The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited Power Source requirement according to IEC60950-1. - Page 5 Quick Start Guide It is recommended connect the grounding hole to the ground to enhance the reliability of the device. Do not touch the image sensor directly (CMOS). Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that moistened with alcohol. Device body can be cleaned with soft dry cloth, which can also be used to remove stubborn ...
-
Page 6: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 Cable ....................................... 1 Connecting Alarm Input/output ............................2 2 Network Configuration ..........................4 Initializing Device ..................................4 Modifying Device IP Address ..............................5 Logging in to Web Interface.............................. -
Page 7: Introduction
Quick Start Guide Introduction Cable Cable type might vary with different devices, and the actual product shall prevail. Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ manual. Figure 1-1 Cable list For more information about cable ports, see Table 1-1. -
Page 8: Connecting Alarm Input/Output
Quick Start Guide Table 1-2 Alarm information Port Port Name Function ALARM_OUT Outputs alarm signal to alarm device. Alarm I/O ALARM_IN Receives the switch signal of external alarm source. ALARM_GND Ground connection. Connecting Alarm Input/output Alarm input/output is available on select models. Step 1 Connect alarm input device to the alarm input end of the I/O port, see Figure 1-2. - Page 9 Quick Start Guide Figure 1-4 Mode B Step 3 Log in web interface, and configure alarm input and alarm output in alarm setting. The alarm input in the web interface is corresponding to the alarm input end of the I/O ...
-
Page 10: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP setting can be finished with the "ConfigTool" or in web interface. For more information, see the WEB operation manual. Device initialization is available on select models, and it is required at first use and after device is ... -
Page 11: Modifying Device Ip Address
Quick Start Guide The Device initialization interface is displayed. Select the devices that need initialization, and then click initialize. Step 6 The password setting interface is displayed. See Figure 2-2. Figure 2-2 Password setting interface Step 7 Set and confirm the password of the devices, and then enter a valid email address. Click Next. -
Page 12: Logging In To Web Interface
Quick Start Guide Select the devices which IP addresses need to be modified, and then click Modify IP. Step 3 The Modify IP Address interface is displayed. See Figure 2-3. Figure 2-3 Modify IP Address interface Select Static mode and enter start IP, subnet mask and gateway. Step 4 IP addresses of multiple devices will be set to the same if you select Same IP. - Page 13 Quick Start Guide Figure 2-4 Main interface...
-
Page 14: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the packing. The operation manual and related tool are contained in the disk or the QR code, and the actual ... -
Page 15: Installing Device
Quick Start Guide Model B (Unit: mm [in]) Installing Device 3.3.1 Installation Method Ceiling-mounted Hang-mounted... -
Page 16: Installing Sd Card (Optional)
Quick Start Guide Wall-mounted Pole-mounted 3.3.2 Installing SD Card (Optional) SD card slot is available on select models. Please disconnect the power from the device before installing the SD card. Short press reset button for 1~2s, press WPS button on the router and the device can be ... - Page 17 Quick Start Guide Cable going through the mounting surface Cable going through the side cable tray...
-
Page 18: Installing Waterproof Connector
Quick Start Guide 3.3.4 Installing Waterproof Connector This part is only needed when a waterproof connector comes with the device and the device is used outdoors. 3.3.5 Adjusting Angle It needs to loosen the screw slightly first during vertical adjustment; tighten the screw after adjustment is completed. -
Page 19: Adjusting Focal Length
Quick Start Guide 3.3.6 Adjusting Focal Length It doesn’t have to adjust focal length for motorized vari-focal lens. For manual vari-focal lens, first it has to adjust focusing lever and then the zoom lever. It needs to tighten the focusing lever after adjustment is completed. - Page 20 Quick Start Guide...
