1 Structure

1.1 Dimensions

You can refer to the following figures for
Figure 1-2.

1.2 Port Description

For the non-IR series product, the interface is shown as in Figure 1-3 and Figure 1-4.
Note：
Figure in this chapter are all for reference only, and please refer to model 1-a and 1-b
according to actual product.
dimension information. The Unit is mm.

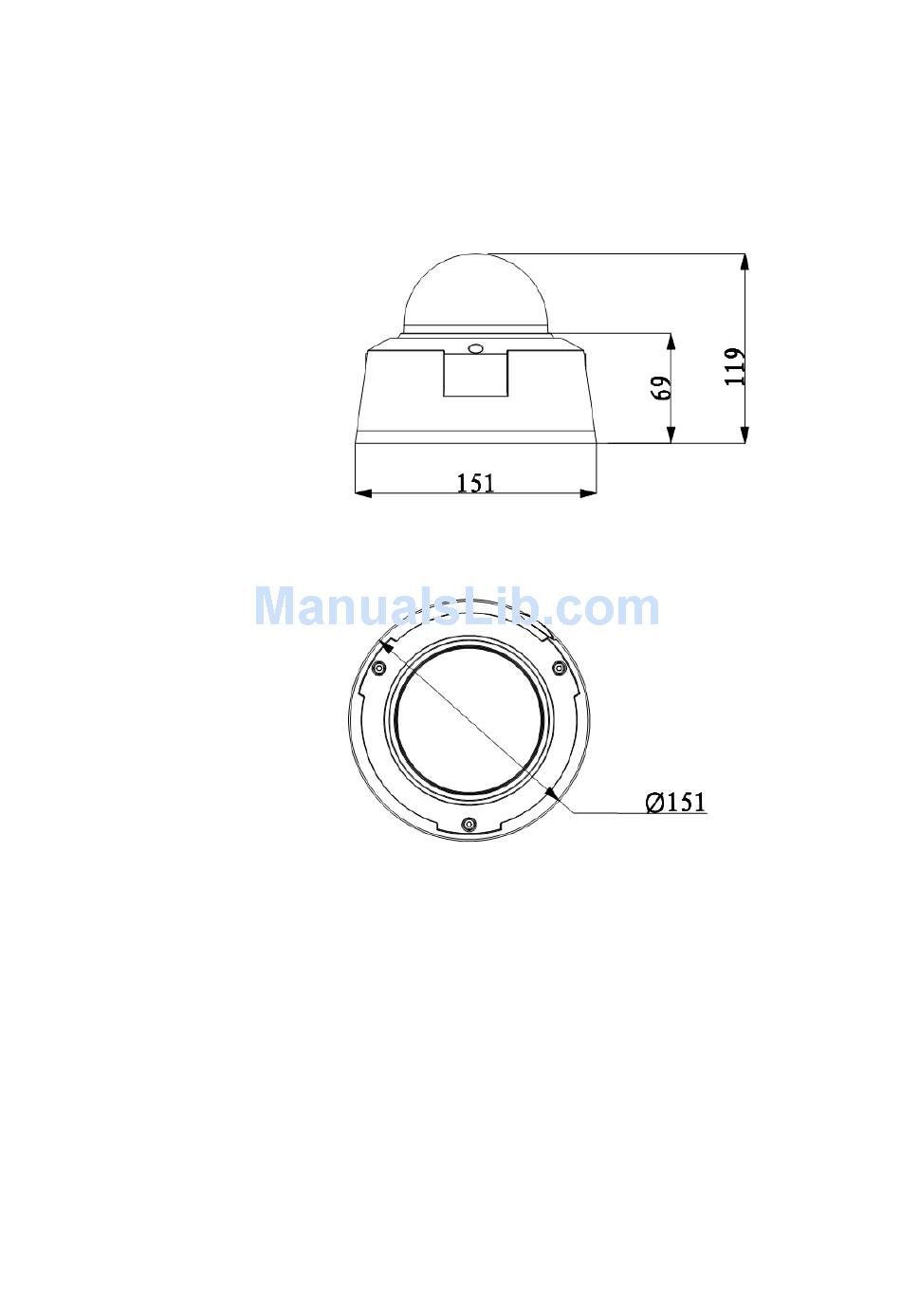

Figure 1-1 Dimension 1
Figure 1-2 Dimension 2
See Figure 1-1 and
1
