Lock screw B/C

Adjust lens tilt

rotation angle.

Step 5

Line up the dome camera protection enclosure to the cable exit on the side panel. Put the enclosure

back and then use the inner hex wrench to secure the 3 inner hex screws firmly. Now the installation is

complete.

Note

Usually we recommend, after the installation, please take the three white static protection gaskets from

the accessories bag and insert them to the screw holes of the protection enclosure. It is to enhance

device reliability.

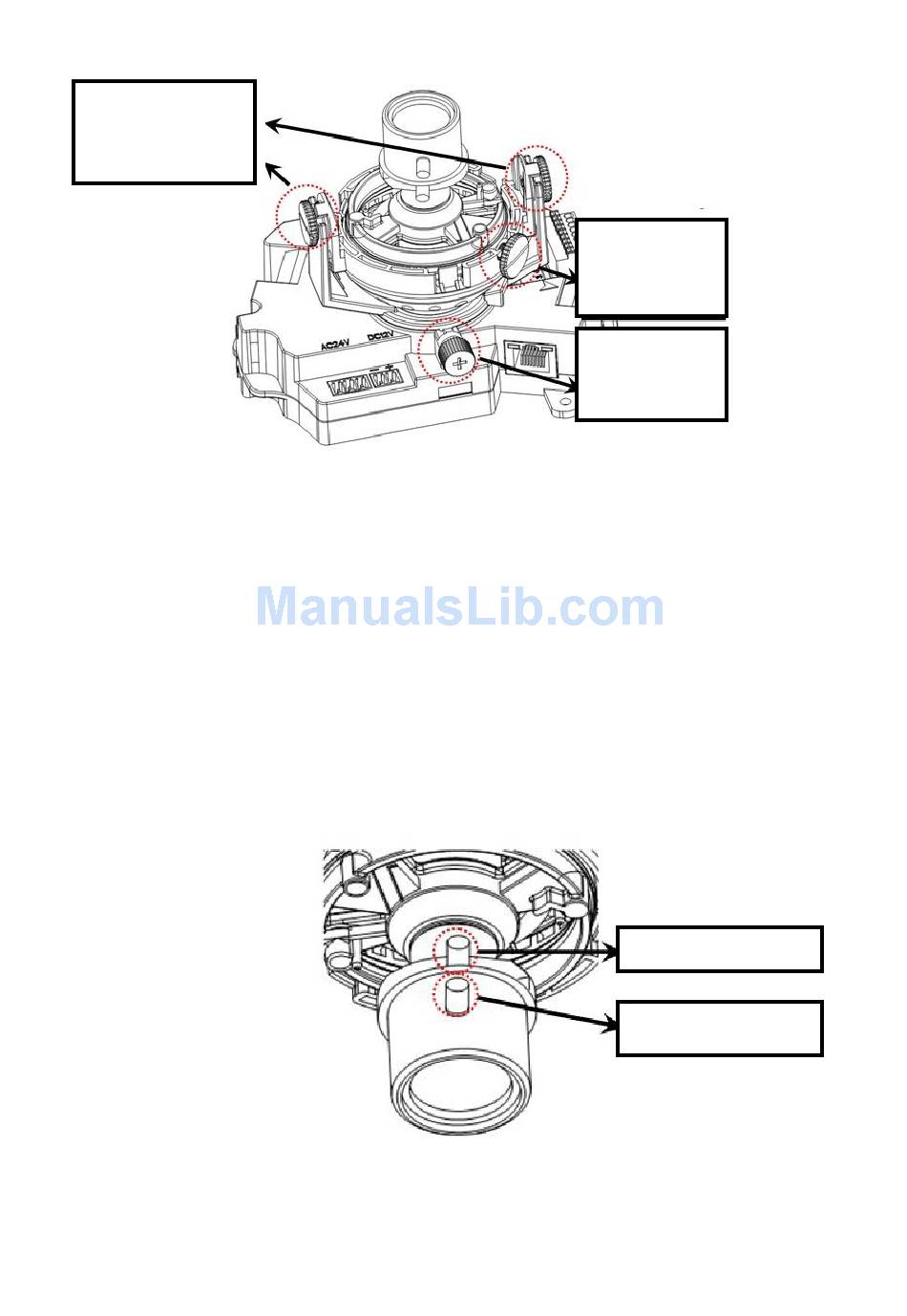

2.2.6 Manual Zoom Lens Focus Operation

The manual zoom lens focus interface is shown as in Figure 2-15.

Lock screw D

Adjust image

pan rotation

angle.

Lock screw A

Adjust lens

pan rotation

angle.

Figure 2-14

Figure 2-15

Adjusting Screw E

Adjusting Screw F
