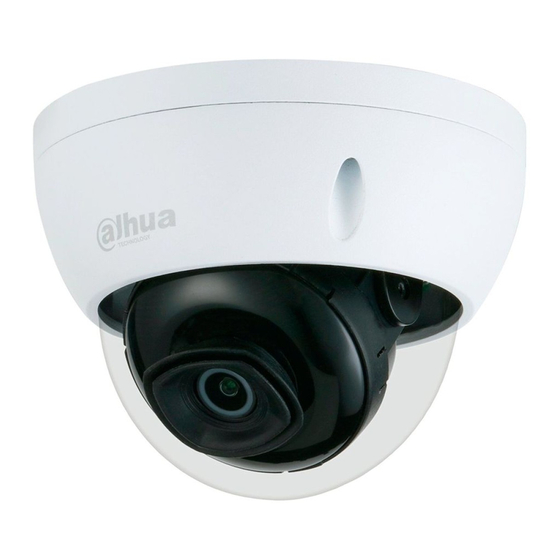

- Page 1 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Version 1.0.0 Zhejiang Dahua Vision Technology Co., LTD...
- Page 2 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Welcome Thank you for purchasing our network cameras. This user’s manual is designed to be a reference tool for using your product. Please read the following safeguards and warnings carefully before you use this series product.
- Page 3 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Do not directly touch the heat dissipation component of the device to avoid scald. Do not dismantle the device because there is no component that can be fixed by users themselves.
- Page 4 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Disclaimer This manual is for reference only. Please refer to the actual product for more details. Minor differences might be found in user interface, and there might be deviation between the actual ...
- Page 5 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Please refer to the disk for more details, check and download the corresponding user’s manual and tool. Before installation, please open the package and check all the components are included.
-
Page 6: Table Of Contents
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Table of Contents Device Structure........................1 Structure Components....................1 Framework and Dimension..................2 Device Installation........................3 Install SD Card (Optional)................... 3 Fix Device........................3 Connect Device Cable....................4 Adjust Device Angle..................... 6 Network Configuration...................... -
Page 7: Device Structure
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide 1 Device Structure 1.1 Structure Components Note The following figure is for reference only, which is used to know the components and cable port function. There are differences about structure components and cables between different models, please ... -
Page 8: Framework And Dimension
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Port Port Name Port Function Input DC 12V, please power the device according to the label instruction. Caution Power input port It may cause damage to the device if it fails to power the device according to the label instruction. -
Page 9: Device Installation
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide 2 Device Installation 2.1 Install SD Card (Optional) Note Please install SD card if the device is equipped with SD card slot and it needs to use SD card. -
Page 10: Connect Device Cable
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Figure 2- 2 Step 1 Take out installation position map; stick it on the mounting surface according to the monitoring area. Dig bottom holes on the hole sites with cross mark of the installation position map, and then knock the expansion bolts into the mounting holes and lock them firmly. - Page 11 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Connect Alarm Input/Output Port Note Some devices do not support alarm function, which cannot be applied to this chapter. Step 1 Connect alarm input device to the alarm input of I/O port cable.
-
Page 12: Adjust Device Angle
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Install Waterproof Connector The installation process of waterproof connector for network port is shown in Figure 2- 5. Note It needs to implement the operation when the device is equipped with waterproof connector and it is used outdoors. - Page 13 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Figure 2- 6 Step 1 Hold the bottom on both sides of the rotation bracket, rotate it horizontally along the axis, and adjust the lens horizontal direction to target location.
-
Page 14: Network Configuration
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide 3 Network Configuration You can initialize the device and modify IP address via "Quick Configuration Tool", for Wi-Fi network camera, it needs to connect to wired network to configure Wi-Fi parameters; You can also initialize device and modify IP address on the WEB interface. -
Page 15: Modify Ip Address
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Figure 3- 1 Step 5 Set new password and confirm password, select Email Address and input email address. Note The password can be set as 8 to 32 characters; it can be a combination of number(s), letter(s) and symbol(s) with at least two kinds of them (excluding “'”,“"”,“;”,“:”,“&”). -
Page 16: Login Web Interface
Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Select the devices whose IP addresses need to be modified, and then click . The system will display the dialog box of Modify IP Address, which is shown in Figure 3- 2. - Page 17 Dahua HD IR Vandal Proof Network Dome Camera Quick Start Guide Figure 3- 3 Zhejiang Dahua Vision Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com Website: www.dahuasecurity.com...
