Fitting The Fire-Box Surrond - Contura C 450T Installation Instruction

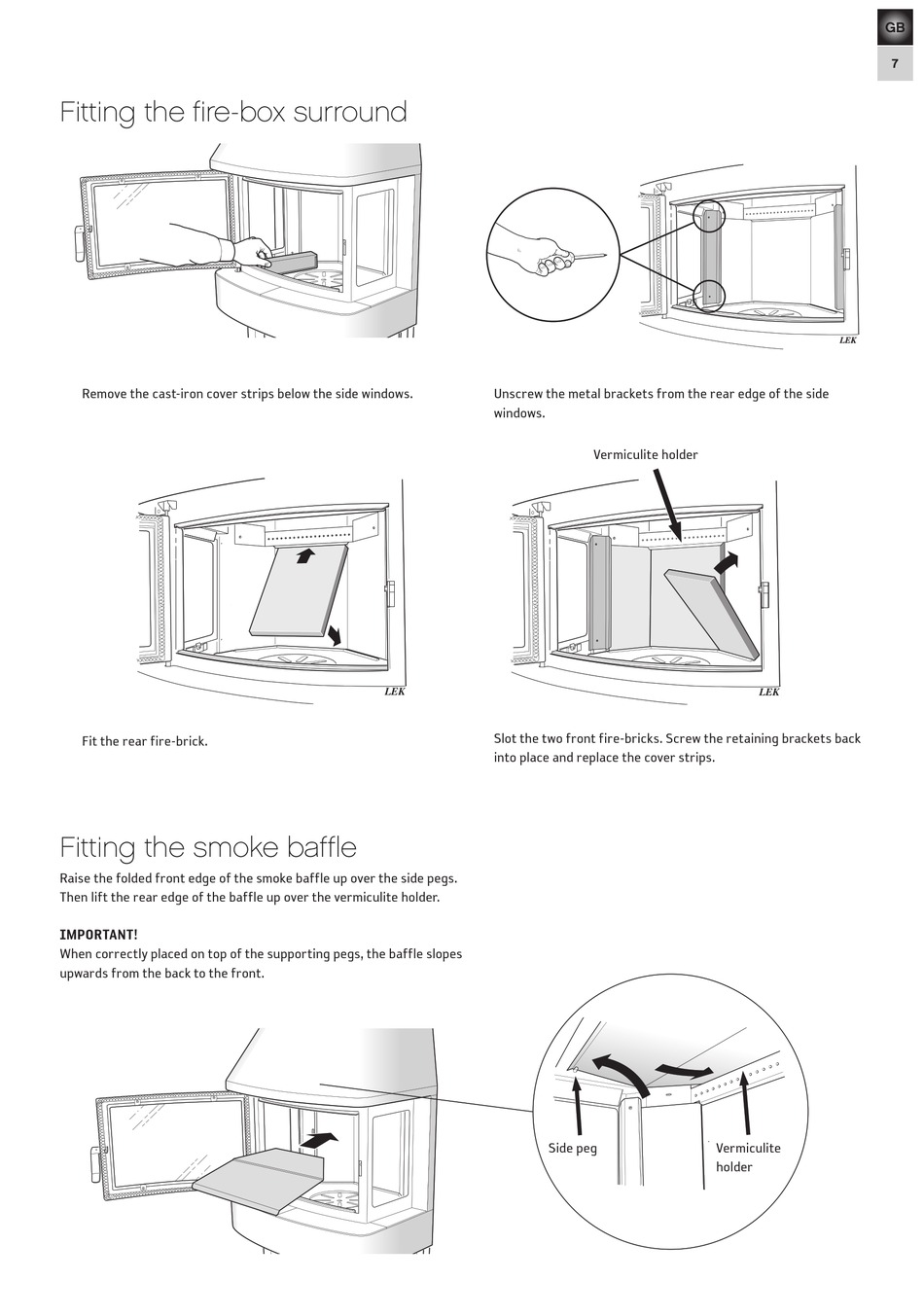

Fitting the fire-box surround
Remove the cast-iron cover strips below the side windows.
Fit the rear fire-brick.
Fitting the smoke baffle
Raise the folded front edge of the smoke baffle up over the side pegs.
Then lift the rear edge of the baffle up over the vermiculite holder.
IMPORTANT!
When correctly placed on top of the supporting pegs, the baffle slopes
upwards from the back to the front.
LEK
Unscrew the metal brackets from the rear edge of the side
windows.
LEK
Slot the two front fire-bricks. Screw the retaining brackets back
into place and replace the cover strips.
Stödtapp, sida
Side peg
LEK
Vermiculite holder Vermiculitehållare
LEK
Vermiculitehållare
Vermiculite
holder
GB
7
LEK
