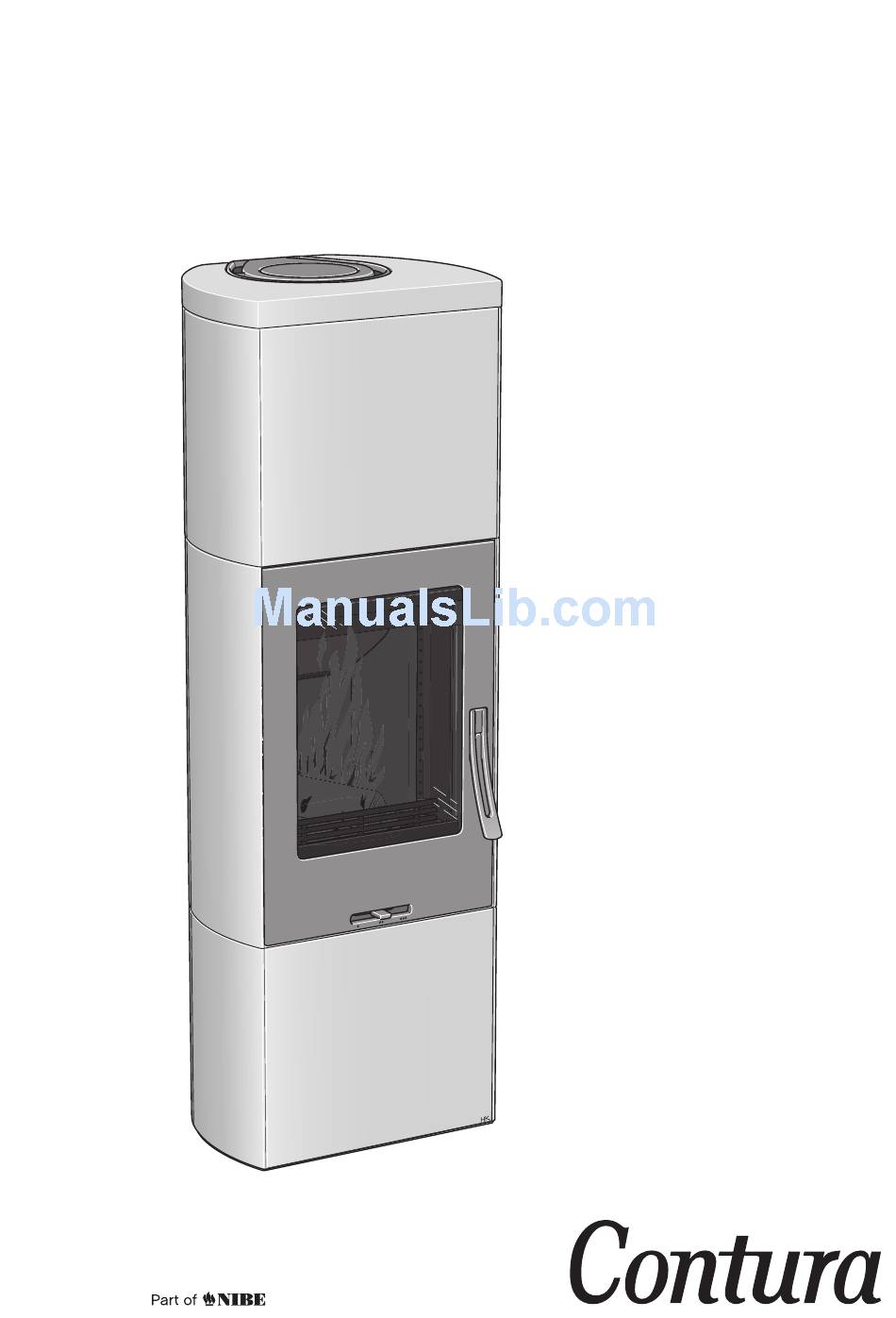

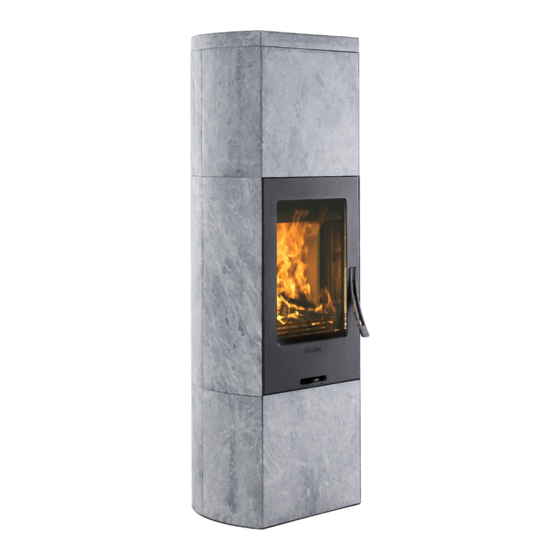

- Page 1 Installation instructions C 34T www.contura.eu...
- Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Effect 3-7 kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency enough to bear the weight of the stove This manual contains instructions on and chimney. -
Page 5: Installation Distance To Walls And Ceiling
INSTALLATION DISTANCES Installation distance to walls and ceiling C34T decoration must be at least 1 m. Place the stove on the hearth plate and check When top connecting a steel flue, please that the installation distances are not less than Combustible roof refer to the particular manufacturer's those that are given in the figures below. -
Page 6: Supply Of Combustion Air
SUPPLY AIR/ACCESSORY Supply of combustion air Combustion air can be provided directly via a duct from outside, or In hot areas, the duct has to be insulated with 30 mm mineral wool indirectly via a vent in the outer wall of the room where the stove covered with a moisture barrier (plastic). - Page 7 SUPPLY AIR/ACCESSORY Self-closing door The stove is equipped with a spring to close the door automati- cally. The spring is situated above the heat deflector. The clos- ing force of the hatch can be adjusted by moving the spring between the three notches on the lever. The angle of the stove also affects the closing force of the spring.
-
Page 8: Connection To Chimney
CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for flue gas temperatures of 350°C. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m. - Page 9 CHIMNEY Connection to chimney Top connection to the chimney The hot air grille must be installed before the chimney is con- nected to the top. Sweeping When sweeping, the smoke baffle must be removed; on the Con- tura 30 series this can be done by lifting the smoke baffle and removing the side piece.
-
Page 10: Installation Of Surround
INSTALLATION Installation of surround F 603496 (B 403976) The stones are numbered as illustrated above. We recommend F 603497 that the stones be installed in the order described on the fol- (B 403959) lowing pages. F 603499 Take care of the soapstones! They scratch easily and are (B 403961) F 603500 easily stained by grease. - Page 11 INSTALLATION Do not tighten the screws.
- Page 12 INSTALLATION 3 mm 3 mm Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
- Page 13 INSTALLATION 3 mm Attach the adjustment brackets to the upper concrete screws. Adjust the stone so it is aligned with the side stones along the top edge. Tighten the 4 concrete screws. Check that the distance between the door and top front stone If a fan is to be installed, it has is approx.
-
Page 14: Installation Of Accessories – Heat Reservoir
INSTALLATION Installation of accessories – Heat reservoir Heat reservoir to soapstone top... - Page 16 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811096 IAV SE-EX C34T-5 time without special notice. The current edition can be 2015-10-06 downloaded from www.contura.eu...
