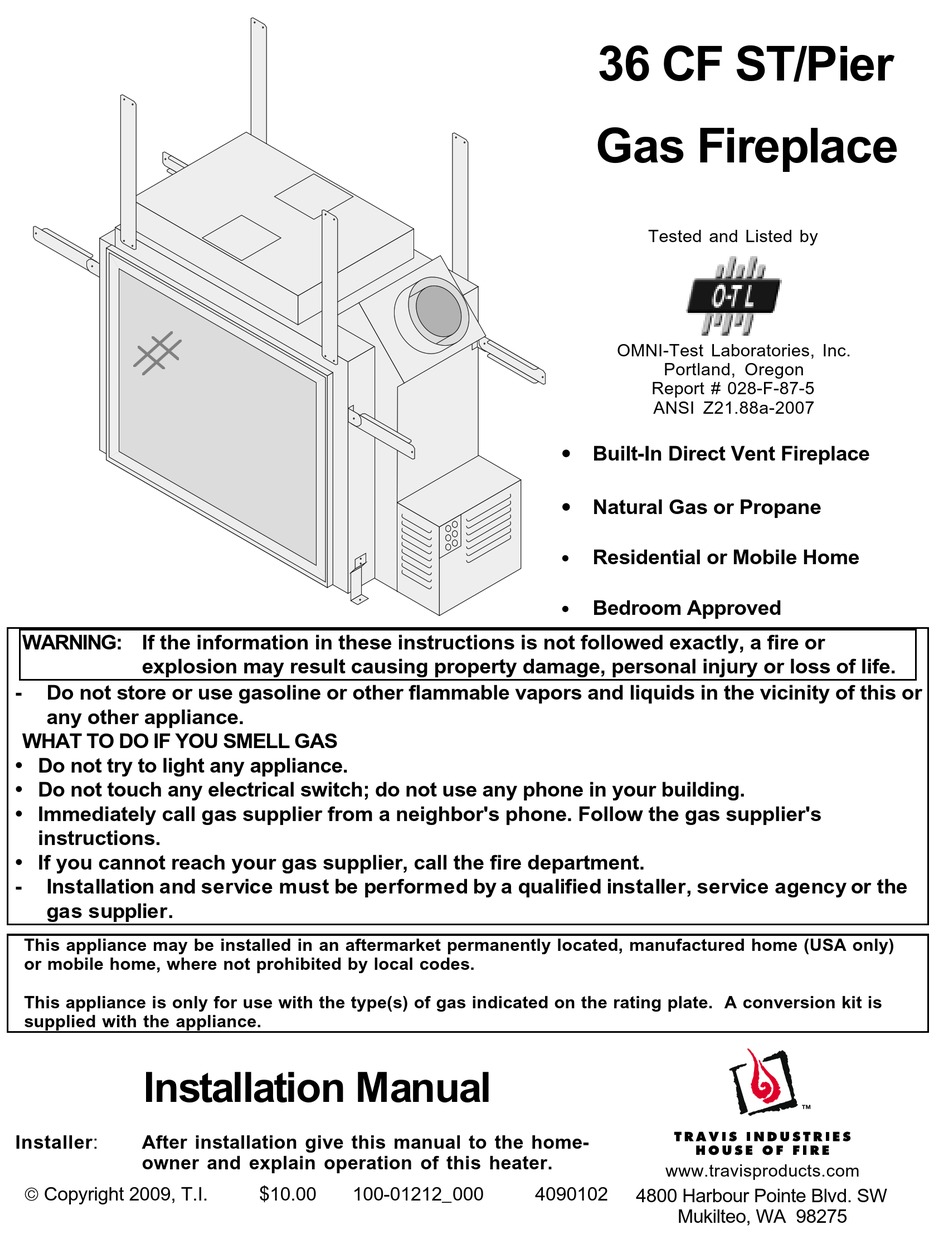

WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installation Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2009, T.I.
$10.00
100-01212_000
36 CF ST/Pier
Gas Fireplace
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028-F-87-5
ANSI Z21.88a-2007
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
•
Residential or Mobile Home
•
Bedroom Approved
www.travisproducts.com
4090102
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Advertisement
Table of Contents
Related Manuals for Travis Industries 36 CF ST/Pier
Summary of Contents for Travis Industries 36 CF ST/Pier
- Page 1 36 CF ST/Pier Gas Fireplace Tested and Listed by OMNI-Test Laboratories, Inc. Portland, Oregon Report # 028-F-87-5 ANSI Z21.88a-2007 • Built-In Direct Vent Fireplace • Natural Gas or Propane • Residential or Mobile Home • Bedroom Approved WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Overview
This manual details the installation requirements for the 36 CF ST and Pier fireplace. For operating and maintenance instructions, refer to the 36 CF ST/Pier Owner's Manual (part # 100-01213). Listing Details This appliance was listed by OMNI Test Labs to ANSI Z21.88 - report # 028-F-87-5. -
Page 3: Table Of Contents
Log Set Installation ..........39 Battery Installation ..........16 LP Conversion Instructions ........43 Remote Synchronization..........17 Power Heat Duct Installation........47 Gas Line Requirements..........18 Andiron Installation........... 47 Gas Line Connection ..........18 Gas Inlet Pressure ..........18 Index Index..............48 © Travis Industries 4090102 100-01212_000... -
Page 4: Safety Precautions
All other work must be done by a trained technician. Don't modify or replace orifices. • The viewing glass should be opened only for conducting service. • Any safety screen or guard removed for servicing must be replaced prior to operating the heater. © Travis Industries 4090102 100-01212_000... - Page 5 The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off. • Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).
-
Page 6: Features And Specifications
Minimum BTU Input on Low 27,000 27,000 Dimensions 56-1/2" * 8-5/8" Outside Diameter 33" * 22-1/2" 1" * See "Vent Location" for 38" details 62-1/2" 3/4" Weight: 270 Lbs. * Includes the 1" standoffs below the baseplate. Figure 2 © Travis Industries 4090102 100-01212_000... -
Page 7: Installation
Fiber Board Additional Items Required • Firebacks (SKU 96100177 or 96100178) • 1080/36 CF Direct Vent (available only from Travis Industries – see page 19 for part numbers) • Gas Line Equipment (shutoff valve, pipe, etc.) • Electrical Equipment Recommended Installation Procedure 1. -
Page 8: Massachusetts Requirements
See Gas Connection section for additional Commonwealth of Massachusetts requirements. © Travis Industries 4090102 100-01212_000... -
Page 9: Preparing The Fireplace Stand-Offs
Secure the stand-offs to the framing with screws or other fasteners. WARNING: Failure to correctly erect the stand-offs may lead to a serious fire-hazard and will void the listing and warranty of this fireplace. Figure 3 © Travis Industries 4090102 100-01212_000... -
Page 10: Fireplace Placement Requirements
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace and vent. Minimum 78” Fireplace Enclosure Height. Platform Optional Raised Hearth (see “Hearth Requirements” for details) Figure 4 © Travis Industries 4090102 100-01212_000... -
Page 11: Minimum Framing 36 Cf St (See Through)
As an alternative, you may omit the framing above one side and back of the fireplace until the fireplace is in position (shown in gray). 56-1/2" 42-1/4" 62-1/2" 22-1/2" Figure 5 © Travis Industries 4090102 100-01212_000... -
Page 12: Framing Dimensions - 36 Cf Pier
Minimum 78” Fireplace 15-5/8" Enclosure Height 18-1/4" NOTE: Do not build into this area - it must be left Glass clear to provide Centerline adequate clearance for the vent. 56-1/2” 49-3/8” 22-1/2” Figure 6 © Travis Industries 4090102 100-01212_000... -
Page 13: Attaching Stand-Offs To Framing
Installation (for qualified installers only) Attaching Stand-Offs to Framing Figure 7 © Travis Industries 4090102 100-01212_000... -
Page 14: Required Electrical Connection
Make sure to connect the ground wire to the grounding tab on the receptacle (this grounds the fireplace). Control Box Cover Plate Romex Connector Grounded 110V Power Supply Attach the electrical line, including the grounding wire, to this receptacle. © Travis Industries 4090102 100-01212_000... -
Page 15: Battery Pack / Learn Switch Installation
Battery Box Wire Wire Length = 12' Remove the Control Box to access the battery box wire. See the illustration on the following page for wiring details. Figure 8 © Travis Industries 4090102 100-01212_000... -
Page 16: Steps For Installing The Battery Box And Learn Switch
See the instructions on page 17 for details. Battery Installation This fireplace uses four AA batteries for operation during power outages. Place the batteries into the battery box. In addition, two AAA batteries are required for the transmitter. © Travis Industries 4090102 100-01212_000... -
Page 17: Remote Synchronization
To do this, hold down the LEARN button for approximately 10 seconds until the receiver beeps 3 times. This indicates the receiver has been re-set and can be synchronized using the instructions above. © Travis Industries 4090102 100-01212_000... -
Page 18: Gas Line Requirements
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure. © Travis Industries 4090102 100-01212_000... -
Page 19: Vent Requirements
If it does not, apply high temperature sealant to the joints of the affected sections. • Horizontal sections require a 1/4" rise every 12" of travel • Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape) © Travis Industries 4090102 100-01212_000... -
Page 20: Vent Clearances
45° elbow that directs the vent upwards. For vent 56" configuration purposes this is considered a top vent and the 90° and 45° elbow is considered a single 45° elbow. © Travis Industries 4090102 100-01212_000... -
Page 21: Approved Vent Configurations: Exhaust Restrictor Adjustment
(see Figure 11). Position # 2 Position # 3 Position # 4 The fireplace ships in restrictor position # 1. Position # 5 Figure 11 © Travis Industries 4090102 100-01212_000... -
Page 22: Rear Vent, Horz. Term. (1 45° Elbow)
Approved Vent Configuration – Rear Vent, Horz. Term. (1 45 ° Elbow) • The vent must not exceed 5 feet (see chart below). • Use Exhaust Restrictor Position # 1. • Horizontal sections require a 1/4" rise every 12" of travel Figure 12 © Travis Industries 4090102 100-01212_000... -
Page 23: Rear Vent, Horz. Term. (1 45°, 2 90° Elbows)
Exhaust Restrictor # 3 25 feet 25 feet Exhaust Restrictor # 2 20 feet 20 feet 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 13 © Travis Industries 4090102 100-01212_000... -
Page 24: Rear Vent, Horz. Term. (1 45°, 4 90° Elbows)
Exhaust Restrictor # 3 Exhaust Restrictor # 2 25 feet 25 feet 20 feet 20 feet 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 14 © Travis Industries 4090102 100-01212_000... -
Page 25: Rear Vent, Vert. Term. (1 45°, 3 90° Elbows)
Exhaust Restrictor # 3 25 feet 25 feet Exhaust Restrictor # 2 20 feet 20 feet 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 15 © Travis Industries 4090102 100-01212_000... -
Page 26: Top Vent, Horz. Term. (1 45°, 1 90° Elbow)
Exhaust Restrictor # 3 25 feet 25 feet 20 feet 20 feet Exhaust Restrictor # 2 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 16 © Travis Industries 4090102 100-01212_000... -
Page 27: Top Vent, Horz. Term. (1 45°, 3 90° Elbows)
Exhaust Restrictor # 3 25 feet 25 feet Exhaust Restrictor # 2 20 feet 20 feet 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 17 © Travis Industries 4090102 100-01212_000... -
Page 28: Top Vent, Vert. Term. (1, 3, Or 5 45° Elbows)
Exhaust Restrictor # 3 25 feet 25 feet Exhaust Restrictor # 2 20 feet 20 feet 15 feet 15 feet Exhaust Restrictor # 1 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 18 © Travis Industries 4090102 100-01212_000... -
Page 29: Top Vent, Vert. Term. (1 45°, 2 90° Elbows)
30 feet Exhaust Restrictor # 3 25 feet 25 feet 20 feet 20 feet Exhaust Restrictor # 2 15 feet 15 feet 10 feet 10 feet 5 feet 5 feet 0 feet 0 feet Figure 19 © Travis Industries 4090102 100-01212_000... -
Page 30: Termination Requirements
NOTE: Measure clearances to the nearest edge of the exhaust hood. • Use the vinyl siding standoff when installing on an exterior with vinyl siding. • Vent termination must not be located where it will become plugged by snow or other material © Travis Industries 4090102 100-01212_000... -
Page 31: Hearth Requirements
NOTE: Do not build a hearth more than the 1” maximum above the Fireplace (granite, concrete, etc.) base of the fireplace (it must fit under the glass frame). 1” Fireplace Marble Plywood (OSB, etc.) 1” Framing Sub-Floor Figure 20 © Travis Industries 4090102 100-01212_000... -
Page 32: Hearth Requirements - Recessed Hearth
If using tile, you may wish to (carpet, etc.) Framing make the platform a suitable height for un-cut tile. For example, if using 12” tile, make the platform 11” tall (10-1/2” Carpet Sub-Floor section of framing + 1/2” plywood). Figure 21 © Travis Industries 4090102 100-01212_000... -
Page 33: Facing Requirements
Flanges are provided on the fireplace board to the fireplace. for the screws to attach to. Fiber Board (or other non-combustible) is required from the glass frame edge to the side framing (13”). Figure 22 © Travis Industries 4090102 100-01212_000... -
Page 34: Non-Combustible Facing
4” (see “Mantel Requirements” on the following page for more details). • The maximum depth for non-combustible facing is 6” (includes the fiber board). Combustible Material (drywall, etc.) Fiber Board (required) 16-1/2”” Min. Non-Combustible Facing (tile, rock, marble, etc.) Fireplace Glass Frame Figure 23 © Travis Industries 4090102 100-01212_000... -
Page 35: Mantel Requirements
(12” from the glass frame). Non-combustible mantel columns do not have a minimum clearance. Base of the Fireplace Mantel (combustible or non-combustible) Max. 12” Max. 12” PIER Min. 49-1/2” Base of the Fireplace Figure 24 © Travis Industries 4090102 100-01212_000... -
Page 36: Finalizing The Installation
5. Replace the glass. Start the pilot. 6. Start the main burner. Leak test all gas joints again (the gas control valve and connections are located on the exterior of the fireplace on the left side. © Travis Industries 4090102 100-01212_000... -
Page 37: Air Shutter Adjustment
Travis dealer for a remedy. 9. Give this manual to the home owner for future reference and fully explain operation of this heater. For comprehensive operating and maintenance instructions, refer to the Owner's Manual. © Travis Industries 4090102 100-01212_000... -
Page 38: Glass Frame Removal And Installation
Once the latches are free, aligned, the frame will push straight in pivot the frame out and lift it off the brackets at the bottom of the glass and drop into place. frame. Figure 25 © Travis Industries 4090102 100-01212_000... -
Page 39: Log Set Installation
Use a stiff brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause sooting or other adverse conditions. © Travis Industries 4090102 100-01212_000... - Page 40 NOTE: The logs are a mirror-image (same logs fit on left and right side). Both the 36 CF See Through (ST) and Pier use the same log set. See the pictures below for log placement Bottom 3 logs. Middle 2 logs. © Travis Industries 4090102 100-01212_000...
- Page 41 Finalizing the Installation (for qualified installers only) Top 2 logs (last 2 logs) Picture from opposite side © Travis Industries 4090102 100-01212_000...
- Page 42 Finalizing the Installation (for qualified installers only) Picture from end (Pier only) © Travis Industries 4090102 100-01212_000...
-
Page 43: Lp Conversion Instructions
Remove the two shelves on the side of the orifice cover (2 screws hold each one in place). Remove the orifice cover (the plate over the air shutter levers – 2 screws hold it in place). © Travis Industries 4090102... - Page 44 Finalizing the Installation (for qualified installers only) Remove both side burners (4 screws hold each one in place). Remove the center burner (2 screws hold it in place). © Travis Industries 4090102 100-01212_000...
- Page 45 NOTE: The sliding portion of the pilot orifice may be positioned differently. Instead of pulling it towards you, you may push it away. Either way – when the hole appears near the tab, the orifice is in the LP position. 10 Remove the cover over the gas control valve. © Travis Industries 4090102 100-01212_000...
- Page 46 15 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-test all gas connections and the gas control valve (see Gas Line Requirements on page 18 for details). Check the pilot and adjust if necessary. © Travis Industries 4090102 100-01212_000...
-
Page 47: Power Heat Duct Installation
Remove the screw and attach the clip. NOTE: the firebacks are not pictured in the pictures. Secure the andiron to the clip with the bolts included with the andirons. We recommend you pre-thread the andirons to ease installation. © Travis Industries 4090102 100-01212_000... -
Page 48: Index
Specifications ............6 Gas Line Connection...........18 Termination Requirements ........30 Gas Line Requirements ........18 Vent Clearances..........20 Glass Frame Removal and Installation ....38 Vent Installation ..........19 Hearth Requirements – Recessed Hearth ....32 Vent Requirements ..........19 Hearth Requirements ..........31 © Travis Industries 4090102 100-01212_000...
