Compatibility
•
33 DVI Insert (with no media – 98400097)
•
Cypress Stove
•
DVL NB with Dancing-Fyre Burner
Packing List
•
Rear Log
•
Left Log
•
Right Log
•
Left Twig
•
Right Twig
Installation
WARNING:
•
The logs are fragile, especially after being exposed to heat.
•
Make sure the gas control valve is "OFF" and the heater is cool prior to conducting service.
•
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
•
The burner must be correctly positioned before installing the logs. Make sure the burner is fully seated
and the pilot is properly aligned. See the owner's manual for details on burner removal.
•
Make sure the pilot shield and log plate are in place before installing the log set. It is shipped with
the burner.
HINT: If using propane (LP), convert the appliance before installing the log set.

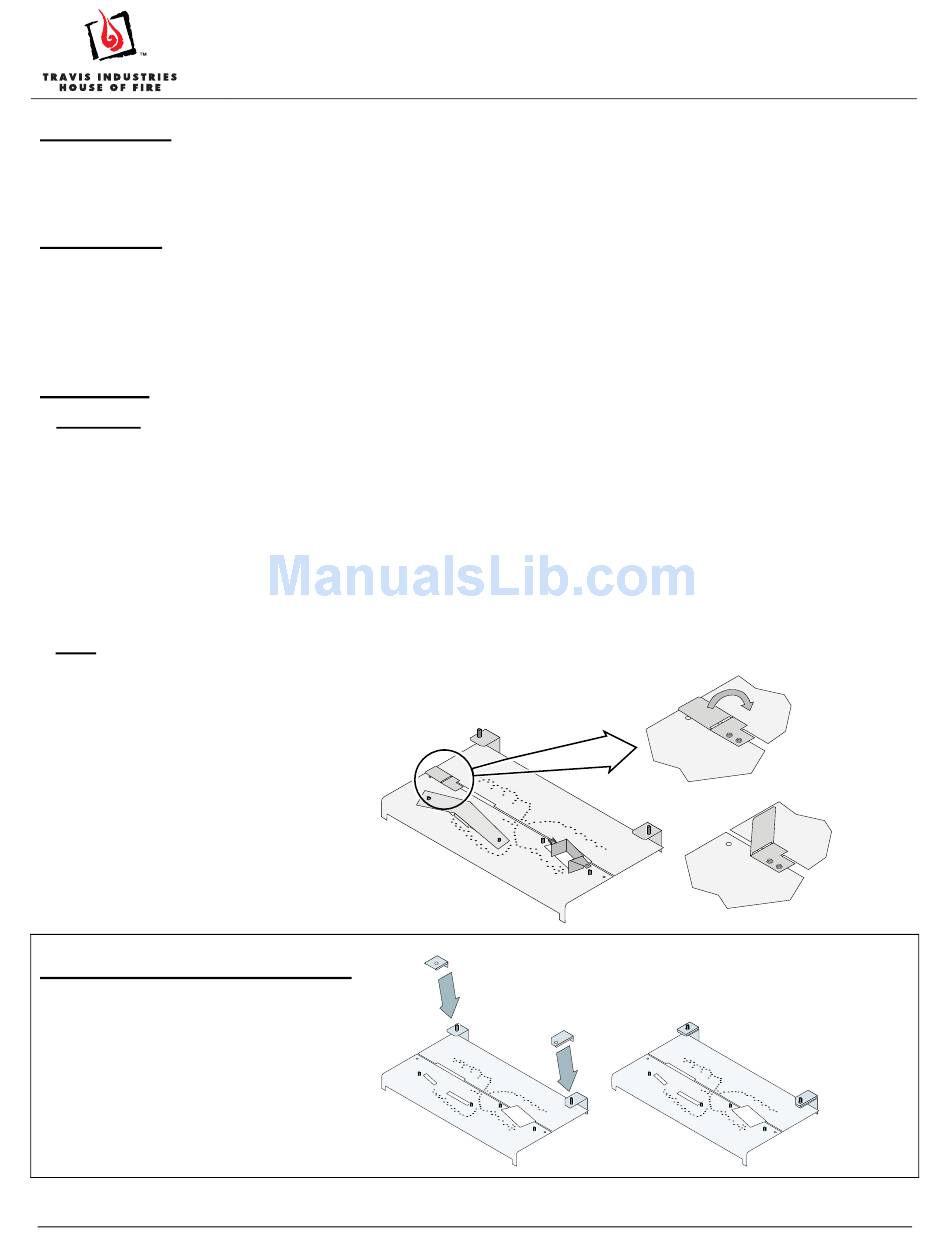

Burner Air Deflector
Before placing the logs, make
sure the burner air deflector is
in the vertical position (see
illustration to the right).
CYPRESS WITH LP (PROPANE)
Rear Log Spacers
If using LP (propane), place the
rear log spacers (included with
the Cypress in the LP
conversion kit) as shown to the
right.
Page 1 of 6
33 DVI, Cypress, DVL NB Log Set
Installation Instructions
17601628 - 12/2/13
(sku 94500561)
•
(2) Log Chunks
•
Rockwool
•
(2) 4 oz. Bags of Embers
© Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries 33 DVI Cypress
Summary of Contents for Travis Industries 33 DVI Cypress
-
Page 1: Installation Instructions
CYPRESS WITH LP (PROPANE) Rear Log Spacers If using LP (propane), place the rear log spacers (included with the Cypress in the LP conversion kit) as shown to the right. Page 1 of 6 17601628 - 12/2/13 © Travis Industries, Inc. - Page 2 IMPORTANT: Make sure the log plate and the pilot shield are in place. The rear log has two holes on the bottom that fit over the two pins on the burner as shown above. Page 2 of 6 17601628 - 12/2/13 © Travis Industries, Inc.
- Page 3 Make sure both components are in place before placing the logs. The left log has two holes in the bottom that fit over the pins on the burner as shown above. Page 3 of 6 17601628 - 7/12/12 © Travis Industries, Inc.
- Page 4 The left twig has a single hole on the bottom that fits over the pin on the rear log. Place the twig as shown in the photos, noting how the twig points inwards. Page 4 of 6 17601628 - 12/2/13 © Travis Industries, Inc.
- Page 5 There are two log chunks that are identical. Place them at the front of the burner as shown in the photos. Make sure to not cover any burner holes. Page 5 of 6 17601628 - 12/2/13 © Travis Industries, Inc.
- Page 6 See the photo to the right. 33DVI - Use one (1) bag of embers Cypress - Use two (2) bags of embers The completed log installation is shown below. Page 6 of 6 17601628 - 12/2/13 © Travis Industries, Inc.
