Packing List
•
Log Set
•
Platinum Crushed Glass (in 2-portion bag)
•
Bronze Crushed Glass (in 2-portion bag)
•
Cobalt Crushed Glass (in 2-portion bag)
Installation Warnings
•
The logs are fragile, especially after being exposed to heat.
•
Make sure the gas control valve is "OFF" and the heater is cool prior to conducting service.
•
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
•
The burner must be correctly positioned before installing the log set. Make sure the burner is fully seated
and the pilot is properly aligned. See owner's manual for details on burner removal.
HINT: If using propane (LP), convert the appliance before installing the log set.
HINT: If using optional firebacks, first make the modifications to the burner (see below). After modifying the
burner install the firebacks then the log set.
Preparing the Burner for Log Set Installation

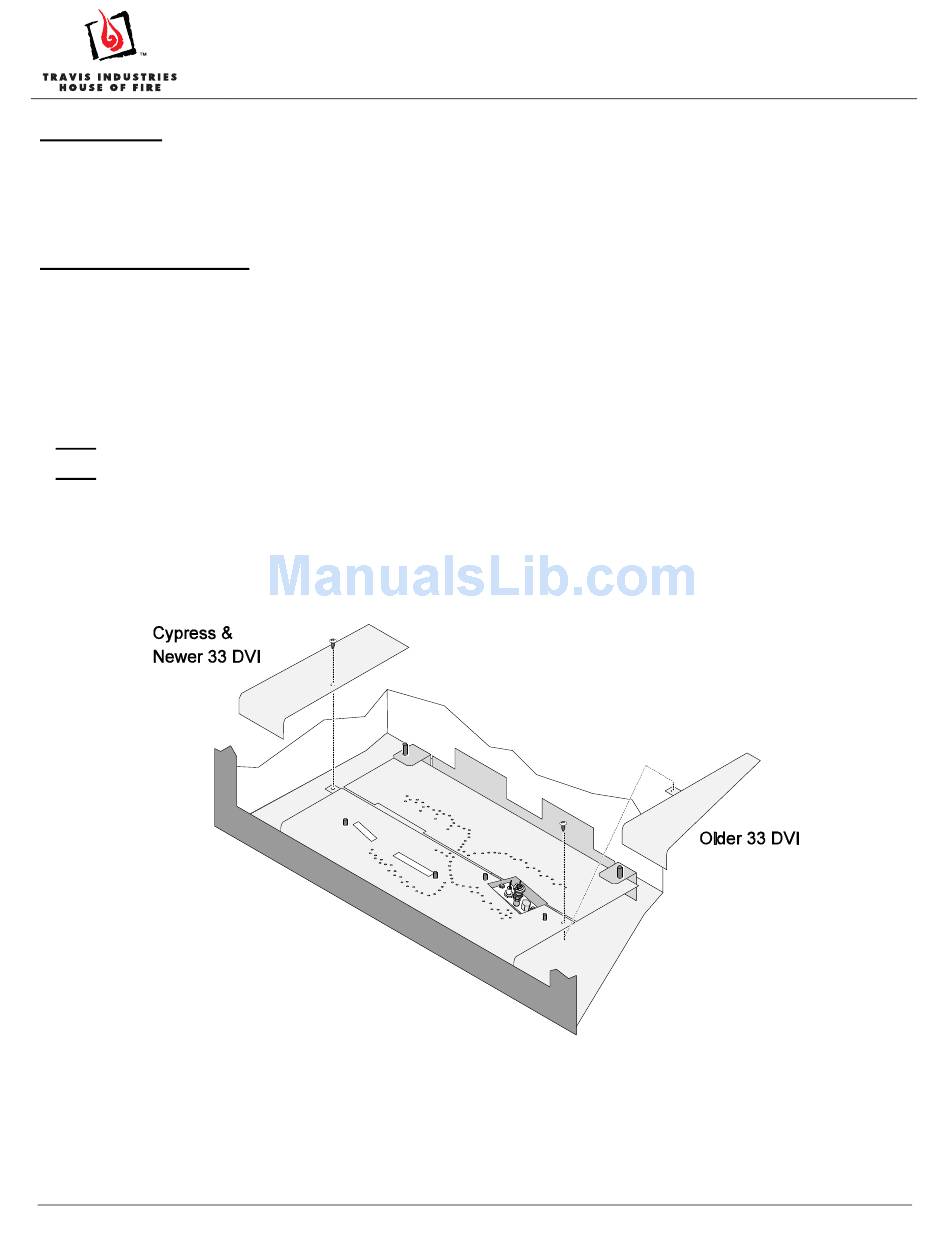

The log set requires the burner to be modified. Remove the two screws holding the ember trays in place (see
below). Remove the ember trays.
Page 1 of 9
33 DVI / Cypress Driftwood Log Set
Installation Instructions
17601633 - 11/16/10
(sku 94500562)
© Travis Industries, Inc.
Advertisement
Related Manuals for Travis Industries 33 DVI Log Set
Summary of Contents for Travis Industries 33 DVI Log Set
- Page 1 Preparing the Burner for Log Set Installation The log set requires the burner to be modified. Remove the two screws holding the ember trays in place (see below). Remove the ember trays. Page 1 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
-
Page 2: Installation Instructions
Remove and discard the side air deflector. Replace the screws. NOTE: On older burners the deflector is riveted in place. Simply bend the extension repeatedly until it snaps off. Page 2 of 9 17601633 - 11/16/10 © Travis Industries, Inc. - Page 3 Install the air-deflector bracket and perforated rear air deflector as shown below (make sure perforated air deflector has painted side facing forward). These parts are included with the Cypress. Page 3 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
- Page 4 The left log installs on a steel plate on the Cypress stove (the 33 does not have this plate). Make sure the plate is in place as shown below. Page 4 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
-
Page 5: Log Set Installation
Place the left front log as shown below. Note how the two pins on the burner insert into the holes on the log. Make sure the log is pushed all the way back. Page 5 of 9 17601633 - 11/16/10 © Travis Industries, Inc. - Page 6 Be careful to not damage the log or press too firmly. When in place, the log should be spaced approximately 3/8” above the burner surface (see photo below). Make sure the pilot is visible and is able to light the burner. Page 6 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
- Page 7 Place the left twig as shown below. Note how the hole on the twig inserts over the pin on the left front log and rests on the left ember tray. Page 7 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
- Page 8 33 DVI / Cypress Driftwood Log Set Installation Instructions (sku 94500562) Place the ember chunk on the burner as shown below. Make sure the ember chunk does not cover any of the burner holes. Page 8 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
-
Page 9: Crushed Glass Installation
WARNING: Make sure the pilot is not obscured with glass. Clear away glass, if necessary, to insure the pilot flame lights the burner quickly. Page 9 of 9 17601633 - 11/16/10 © Travis Industries, Inc.
