Ground Drive Belt - Model MB

1. To remove the ground drive belt:
a. Raise the spring-loaded idler to relax belt.
2. Reverse the procedure to install the ground
drive belt.
SERVICE INSTRUCTIONS

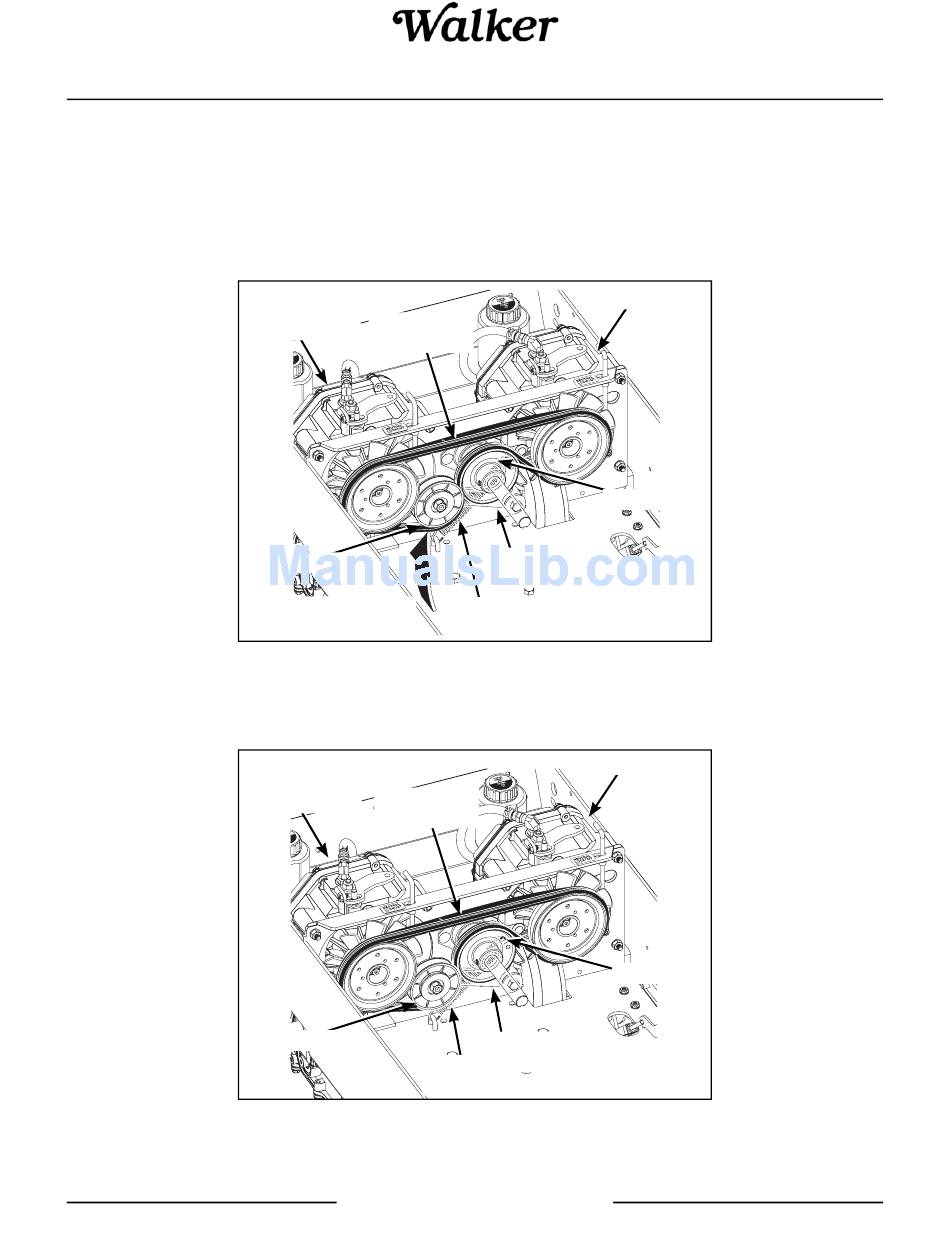

LH Hydro-Gear Ground Drive
Belt
Idler Pulley
Raise Idler Pulley to
Relax Belt
Ground Drive Belt Assembly (Disengaged)
Ground Drive
LH Hydro-Gear
Belt
Idler Pulley
Ground Drive Belt Assembly (Engaged)
WALKER MANUFACTURING COMPANY
July 2006
b. Slide belt off pulleys, then release the idler.
RH Hydro-Gear
Drive Pulley
Hydro Idler
Arm
Tension
Spring
RH Hydro-Gear
Hydro Idler
Arm
Tension
Spring
Page: 4-22
Drive Pulley
