Walker MT Detailed Instructions page 130

Clips
Knob
Cartridge
Pre-Cleaner
and Cartridge
Foam
Pre-Cleaner

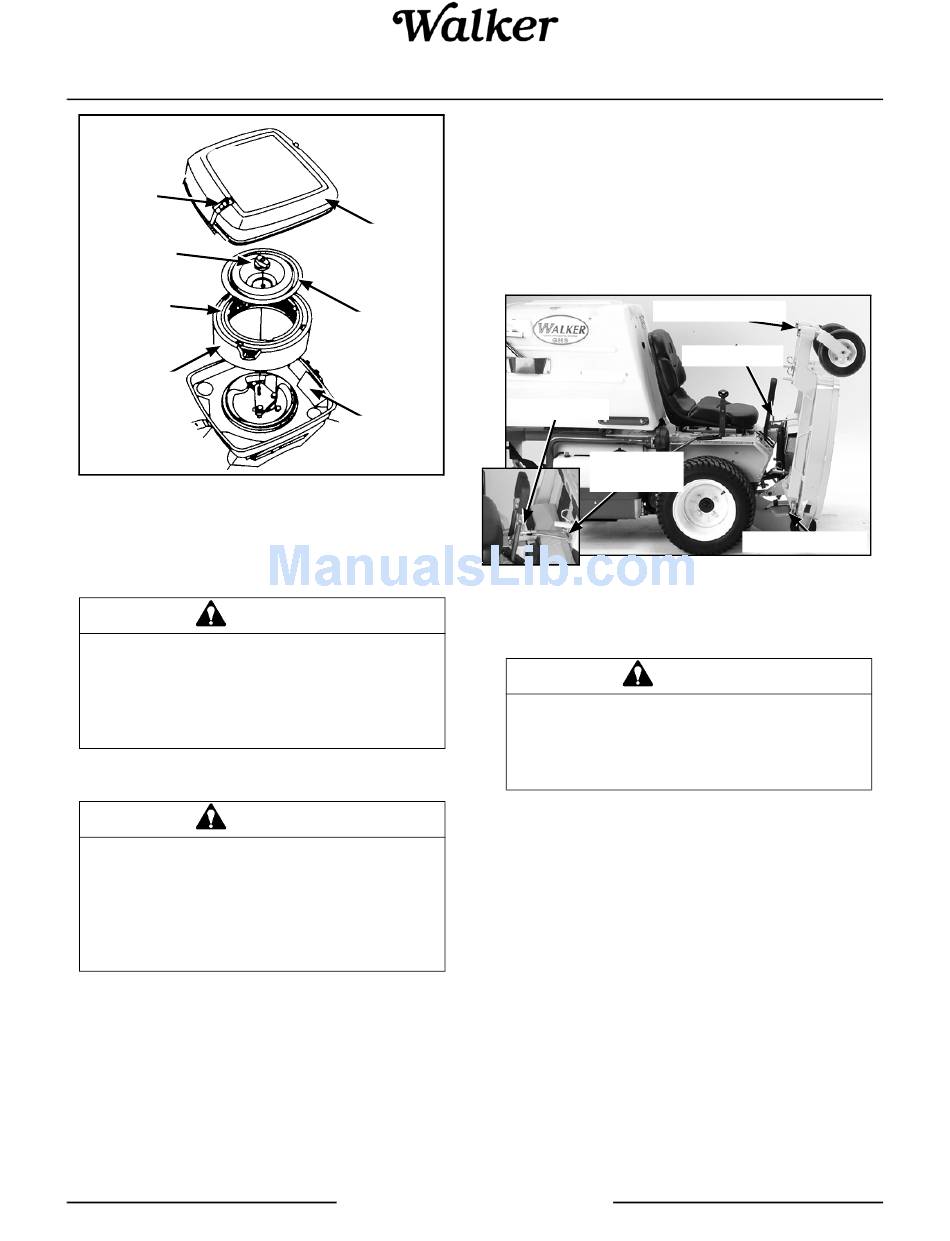

Air Cleaner Components
Grass Buildup in Mower Housing - All Models
Model MS, MW, MB, MC, MT
DANGER
Before raising or removing the mower
deck for cleaning, stop the engine, re-
move the ignition key, and disconnect the
spark plug wire(s).
Model MD
DANGER
Before raising or removing the mower
deck for cleaning, stop the engine, re-
move the ignition key, and disconnect the
electrical plug on the fuel shut-off sole-
noid.
SERVICE INSTRUCTIONS
July 2006
All Models
1.
2.
Cover
Plate
Tilt-Up Latch
Body
Deck Secured in TILT-UP Position - Model MS, MB,
3.
4.
WALKER MANUFACTURING COMPANY
Page: 3-28
Raise the deck lock lever handle on each side of
the carrier frame and pull out to release carrier
frame for tilting action.
Using the carrier frame lift handle, raise deck to the
TILT-UP position and insert the deck hook into the
tilt-up latch on the tractor body.
Tilt-Up Lift Handle
Tilt-Up Latch
Tilt-Up Hook
on Deck
MC, MD, MT (Model MC shown)
DANGER
Do not operate the mower with deck in tilt-
up position. Do not move the tractor with
the deck in the tilt-up position.
Clean grass buildup underneath the deck using a
pressure washer (and scraper if required).
NOTE: If the buildup is severe, it may be easier to
clean the deck by removing the deck assembly from
the tractor and standing the deck assembly on its
"nose".
NOTE: While some degree of material buildup in
the mower deck housing can be tolerated, a point is
finally reached where cutting quality deteriorates
and clogging begins to occur because of too
much buildup on the baffling and housing.
Lower the deck to the normal operating position
and re-engage the deck lock levers.
Deck Lock Lever
