Azalea®

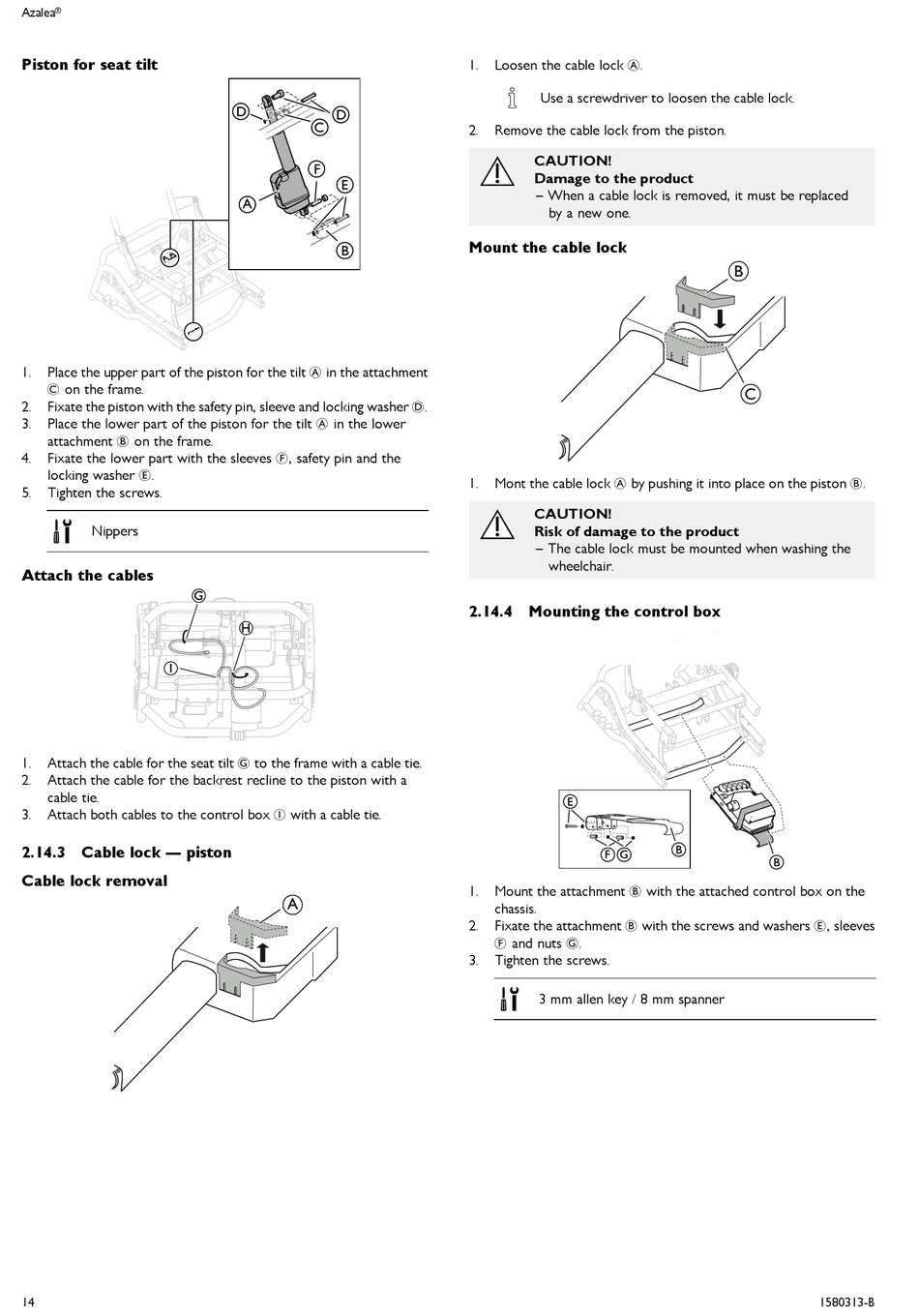

Piston for seat tilt
1. Place the upper part of the piston for the tilt A in the attachment
C on the frame.
2. Fixate the piston with the safety pin, sleeve and locking washer D.
Place the lower part of the piston for the tilt A in the lower
3.
attachment B on the frame.
Fixate the lower part with the sleeves F, safety pin and the
4.
locking washer E.
5. Tighten the screws.
Nippers
Attach the cables
Attach the cable for the seat tilt G to the frame with a cable tie.
1.
2. Attach the cable for the backrest recline to the piston with a
cable tie.
Attach both cables to the control box I with a cable tie.
3.
2.14.3 Cable lock — piston
Cable lock removal
14
D
D
C
F
E
A
B
A
Loosen the cable lock A.
1.
Use a screwdriver to loosen the cable lock.
2. Remove the cable lock from the piston.
CAUTION!
Damage to the product
– When a cable lock is removed, it must be replaced
by a new one.
Mount the cable lock
Mont the cable lock A by pushing it into place on the piston B.
1.
CAUTION!
Risk of damage to the product
– The cable lock must be mounted when washing the
wheelchair.

2.14.4 Mounting the control box

1. Mount the attachment B with the attached control box on the
chassis.
2. Fixate the attachment B with the screws and washers E, sleeves
F and nuts G.
3. Tighten the screws.
3 mm allen key / 8 mm spanner
1580313-B
