Drum Brake 22-24" Wheels - Invacare Azalea Assist Service Manual

C
Mount the lever for the assistant maneuvered drum brake A on
the push handle and attach the screws B.
The distance between the handle and the lever for the
assistant maneuvered drum brake must be 10 — 15 mm
C.
Torx driver T20
2.
Seat height 450 mm
a. Mount the wire hook
from the brake handle C
in the wire holder on the
brake D.
Mount the wire E in the
b.
attachment washer F.
c. Mount the wire on the
brake D and tighten the
nut G.
d. Mount the screw for the
attachment washer H on
the chassis.
e. Mount the wheel with
the brake on the chassis
and tighten the nuts.
3.
1580313-B
B
A
Seat height 400 mm
S H 4 5 0
a. Mount the wire hook
from the brake handle C
in the wire holder on the
brake D.
Mount the wire E in the
b.
attachment washer F.
c. Mount the wire on the
brake D and tighten the
nut G.
d. Place the height
attachment L between
the attachment washer
H and the chassis.
e. Mount the attachment
washer H together with
the height attachment
plate on the chassis.
f. Mount the wheel with
the brake on the chassis
and tighten the nuts.
Backrest plate
a. Thread the brake wire
I on the inside of the
backrest attachment J.
b. Place the brake wire I in
the clips on the backrest
tubes.

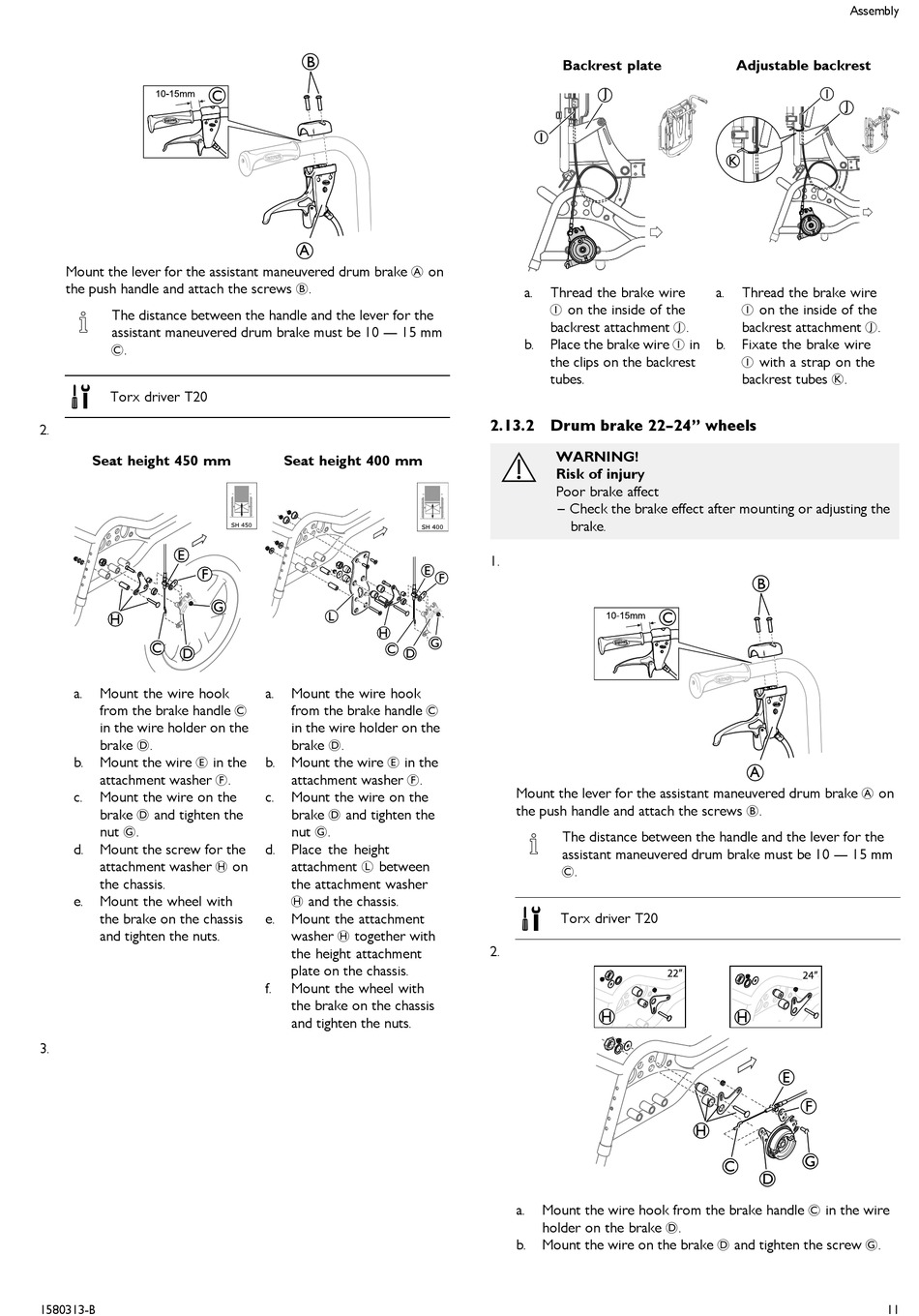

2.13.2 Drum brake 22–24" wheels
WARNING!
Risk of injury
Poor brake affect
– Check the brake effect after mounting or adjusting the
brake.
S H 4 0 0
1.
Mount the lever for the assistant maneuvered drum brake A on
the push handle and attach the screws B.
The distance between the handle and the lever for the
assistant maneuvered drum brake must be 10 — 15 mm
C.
Torx driver T20
2.
Mount the wire hook from the brake handle C in the wire
a.
holder on the brake D.
Mount the wire on the brake D and tighten the screw G.
b.
Adjustable backrest
a. Thread the brake wire
I on the inside of the
backrest attachment J.
b. Fixate the brake wire
I with a strap on the
backrest tubes K.
B
C
A
Assembly
11
