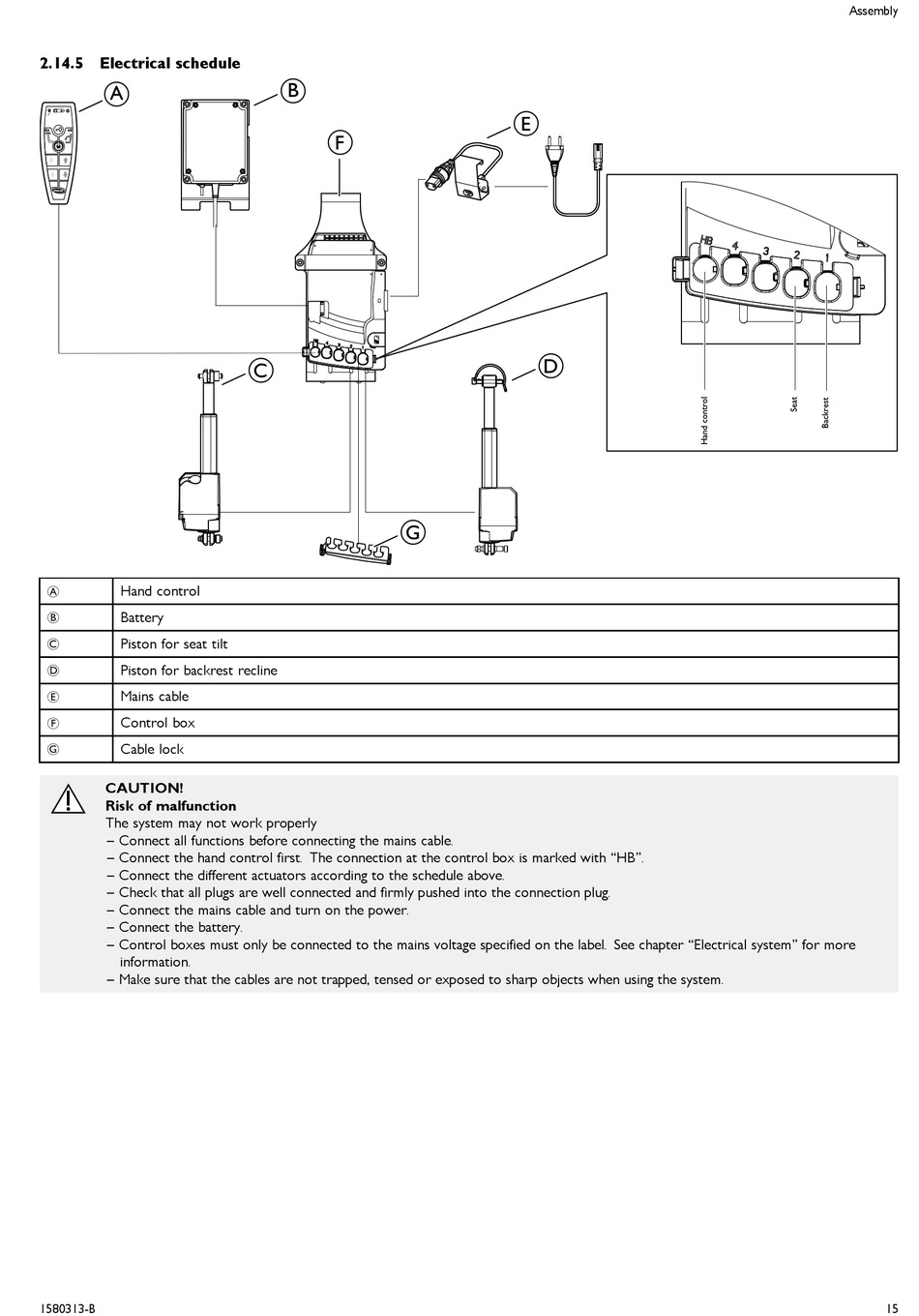

2.14.5 Electrical schedule

A
A
Hand control
B Battery
C Piston for seat tilt
D Piston for backrest recline
E Mains cable
F Control box
G
Cable lock
CAUTION!
Risk of malfunction
The system may not work properly
– Connect all functions before connecting the mains cable.
– Connect the hand control first. The connection at the control box is marked with "HB".
– Connect the different actuators according to the schedule above.
– Check that all plugs are well connected and firmly pushed into the connection plug.
– Connect the mains cable and turn on the power.
– Connect the battery.
– Control boxes must only be connected to the mains voltage specified on the label. See chapter "Electrical system" for more
information.
– Make sure that the cables are not trapped, tensed or exposed to sharp objects when using the system.
1580313-B
B
F
C
G
E
D
