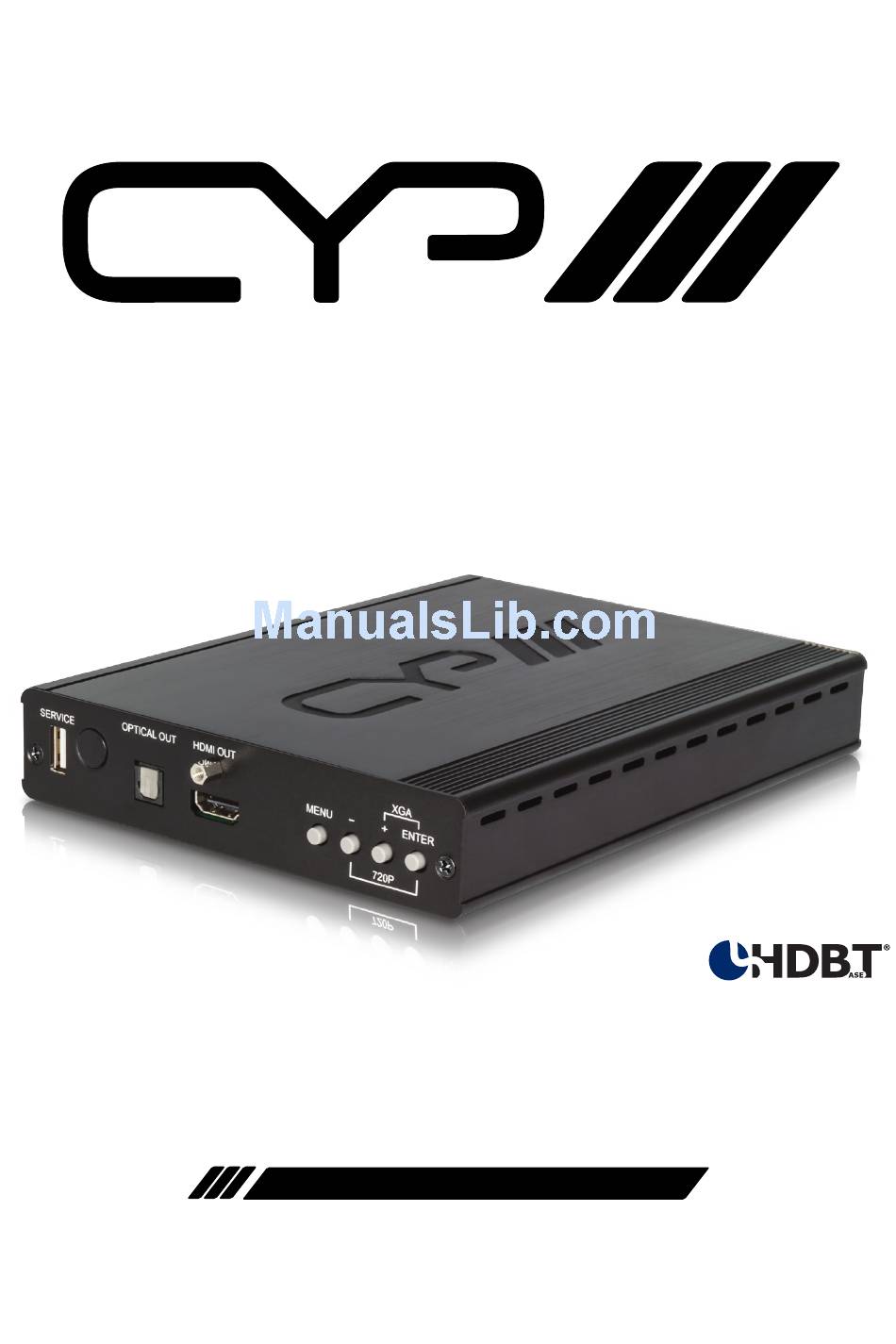

- Page 1 PU-507RX-SCD 5-Play™ HDBaseT™ Receiver with integrated video scaling & audio breakout (inc. PoE & single LAN, up to 100m) - stereo audio only OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment .......10 6.4 RS-232 Pin Definitions ......10 6.5 RS-232 Commands .........11 6.5 Remote Control ........12... -
Page 6: Introduction
1. INTRODUCTION The PU-507RX-SCD Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. With full 5-Play convergence, this solution features RS-232, 2-way IR control functionality, and LAN serving over the same CAT5e/6/7 cable for transmission distances up to 100m. -
Page 7: Features
5. FEATURES Supports all v1.3 HDMI resolutions Supports uncompressed video/audio up to 10.2Gbps Video scaling ensuring maximum compatibility and optimum video resolution support. Supports Audio breakout via Optical output: Note: This device supports stereo audio input/output only. Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24;... -
Page 8: Operation Controls And Functions

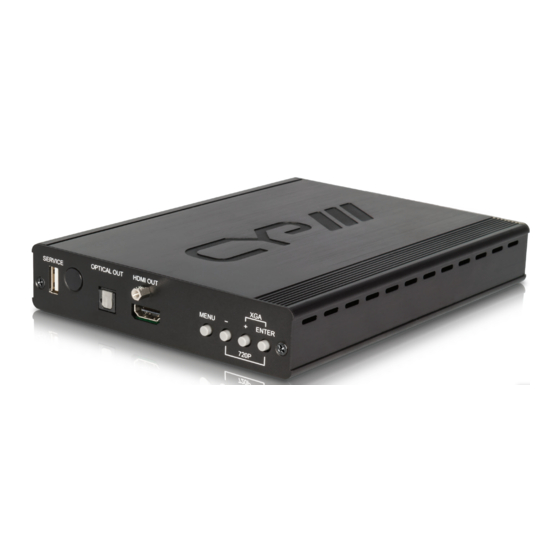

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OUT HDMI OUT SERVICE MENU ENTER 720P SERVICE: Reserved for manufacturer use only. IR Receiver window: Receives only the IR signal from the supplied remote control. OPTICAL OUT: Connect to an amplifier or active speakers with an optical cable. -
Page 9: Rear Panel
6.2 Rear Panel DC 24V RS232 OUT CAT5e/6 IN Blaster Extender POWER MODE LINK Power LED: This LED will illuminate when the device is connected to an active power supply. DC 24V: Connect the 24 V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground 6.4 RS-232 Pin Definitions Define TX / RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 Commands
6.5 RS-232 Commands COMMAND DESCRIPTION S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50 10=1400×1050 24=1080p@50 11=1680×1050 25=1080i@50 R OUTPUT Reports the numerical equivalent for the OUTPUT setting (as listed above) S SIZE 0~6 0=OVERSCAN 4=LETTER BOX... - Page 12 COMMAND DESCRIPTION S SATURATION 0~60 Sets the numerical value for the SATURATION setting (0~60) R SATURATION Reports the numerical value for the SATURATION setting (0~60) S SHARPNESS 0~30 Sets the numerical value for the SHARPNESS setting (0~30) R SHARPNESS Reports the numerical value for the SHARPNESS setting (0~30) S NR 0~3 0=OFF...
-
Page 13: Remote Control
6.5 Remote Control INPUT: Not functional EXIT: Press this button to exit the menu or escape the current selection under OSD. MENU:Press this button to exit the INPUT menu or the current selection in the on-screen menu. EXIT MENU RESET: Press this button to return the device to the factory default settings. -
Page 14: Osd Menu
6.6 OSD Menu Layer layer Layer DISPLAY OUTPUT Native 640x480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720x480P 60 1280x720P 60 1920x1080I 60 1920x1080P 60 720x576P 50 1280x720P 50... - Page 15 Layer layer Layer INFO COLOR MODE INFO (Continued) COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~60 MIDDLE HIGH AUDIO VOLUME 0~100 DELAY 40mS 110mS 150mS SOUND MUTE SETUP FACTORY RESET KEY LOCK...
-
Page 16: Output Resolution Support
Layer layer Layer INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the default setting. 6.7 Output Resolution Support INPUT RESOLUTION HDMI 480i/576i 480p/576p 720p@50/60 Hz 1080i@50/60 Hz 1080p@50/60 Hz VGA@60/72/75 Hz SVGA@56/60/72/75 Hz ... -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM Router with internet connection DVD Player RS-232 Control System 1.5m 60° RS-232 60° IR Extender IR Blaster Compatible RS-232 In Transmitter HDMI In Transmitter HDMI to CAT5e/6 with LAN/IR/RS232 CAT 5e/6/7 Up to 100m RS-232 Device DC 24V RS232 OUT CAT5e/6 IN Blaster... -
Page 18: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Ethernet Speed 100 Mbps Input Video Bandwidth 300MHz / 10.2Gbps Output Video bandwidth 165MHz / 1.65Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster, 1×Optical ,1×RS-232, 1×LAN CAT5e/6/7 Output Cable Up to 100 Meters Distance HDMI output Resolution HD: Up to 1080p@60Hz... -
Page 19: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Pixel clock Video Data Cable Type Range Supported Video rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data (HD Video) rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
