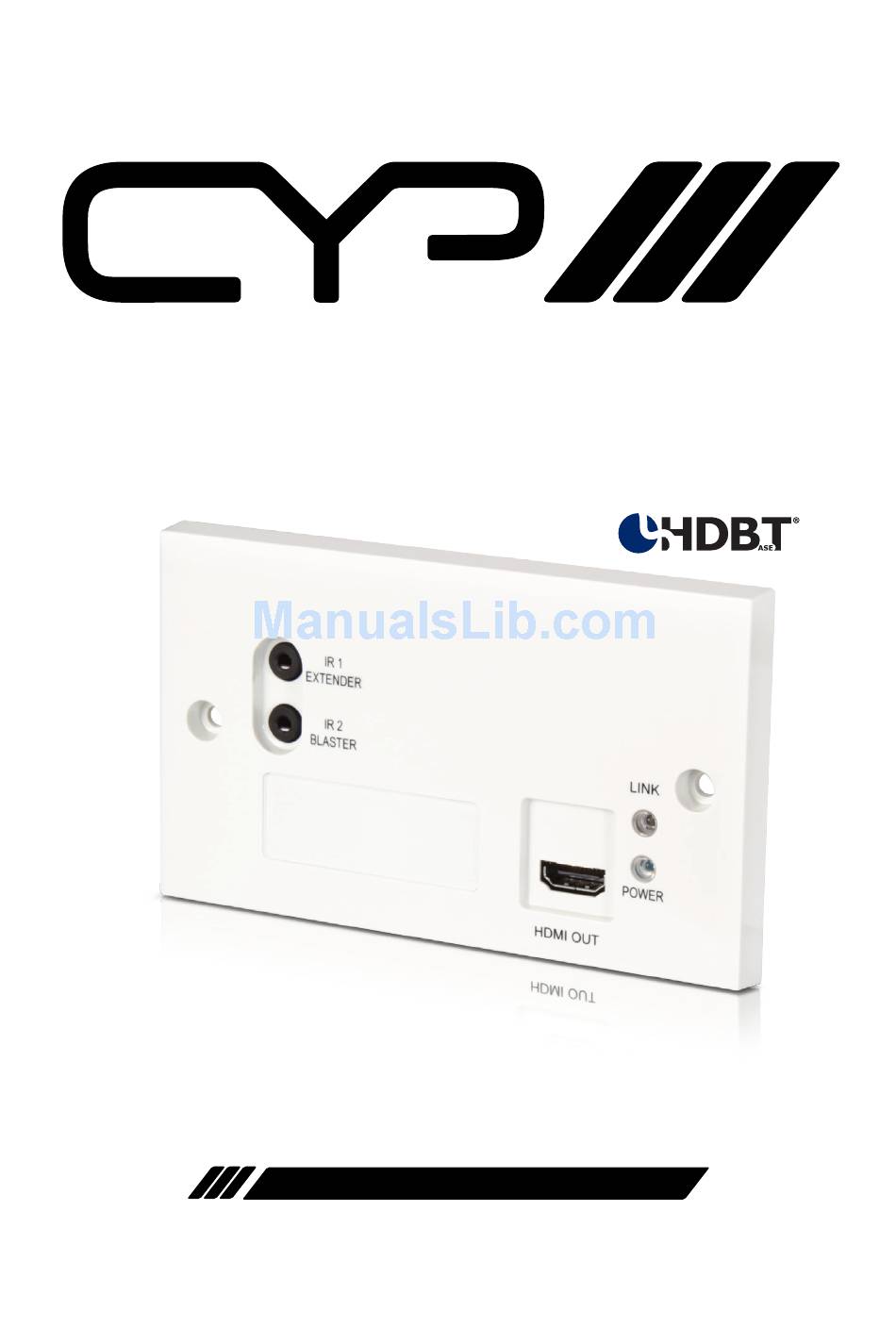

- Page 1 PU-515PL-WPRX HDBaseT™ LITE Wall Plate Receiver with PoC & 2-Way IR (up to 60m) OPERATION MANUAL...
-
Page 2: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver Front Panel ......... 8 6.2 Receiver Rear Panel ........9 6.3 IR Cable Pin Assignment ......9 7. -
Page 5: Introduction
1. INTRODUCTION The PU-515PL-WPRX allows uncompressed HDMI signals, control and power to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC) and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. -
Page 6: Features
5. FEATURES HDCP 2.2 Compliant Supports all v1.4 HDMI resolutions plus 4K Supports uncompressed video/audio up to 10.2Gbps Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings HDMI, HDCP, &... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front Panel IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted to the transmitter unit. Ensure that the remote being used is within the direct line-of-sight of the IR Extender. -
Page 8: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Option 1: Point to Point DVD/Blu-ray Player 1.5m 60° HDMI 60° Input IR Blaster IR Extender Power Supply IR2 Extender Compatible HDMI In RS232 In IR1 Blaster Transmitter unit with DC 24V Power Link Lite CAT 5e /6 Out Single Note: The receiver is CAT5e/6/7... -
Page 10: Option 2: Matrix System
Option 2: Matrix System TV/Display Extender HDMI 1.5m Output 60° IR Blaster 60° IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT Single Internet CAT5e/6/7 Router Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/10.2 Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) IR Frequency 30~50 kHz Dimensions 145 .7mm (W)×85.7 mm(D)×36.5 mm(H)/Jacks Excluded 145 .7mm (W)×85.7 mm(D)×39.5 mm(H)/Jacks Included... -
Page 12: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel Clock Video Supported Video Type Rate Data Rate CAT5e/6/7 60 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, 36-bit 3D (HD Video) (Data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). 35 m >225 MHz >5.3 Gbps...
