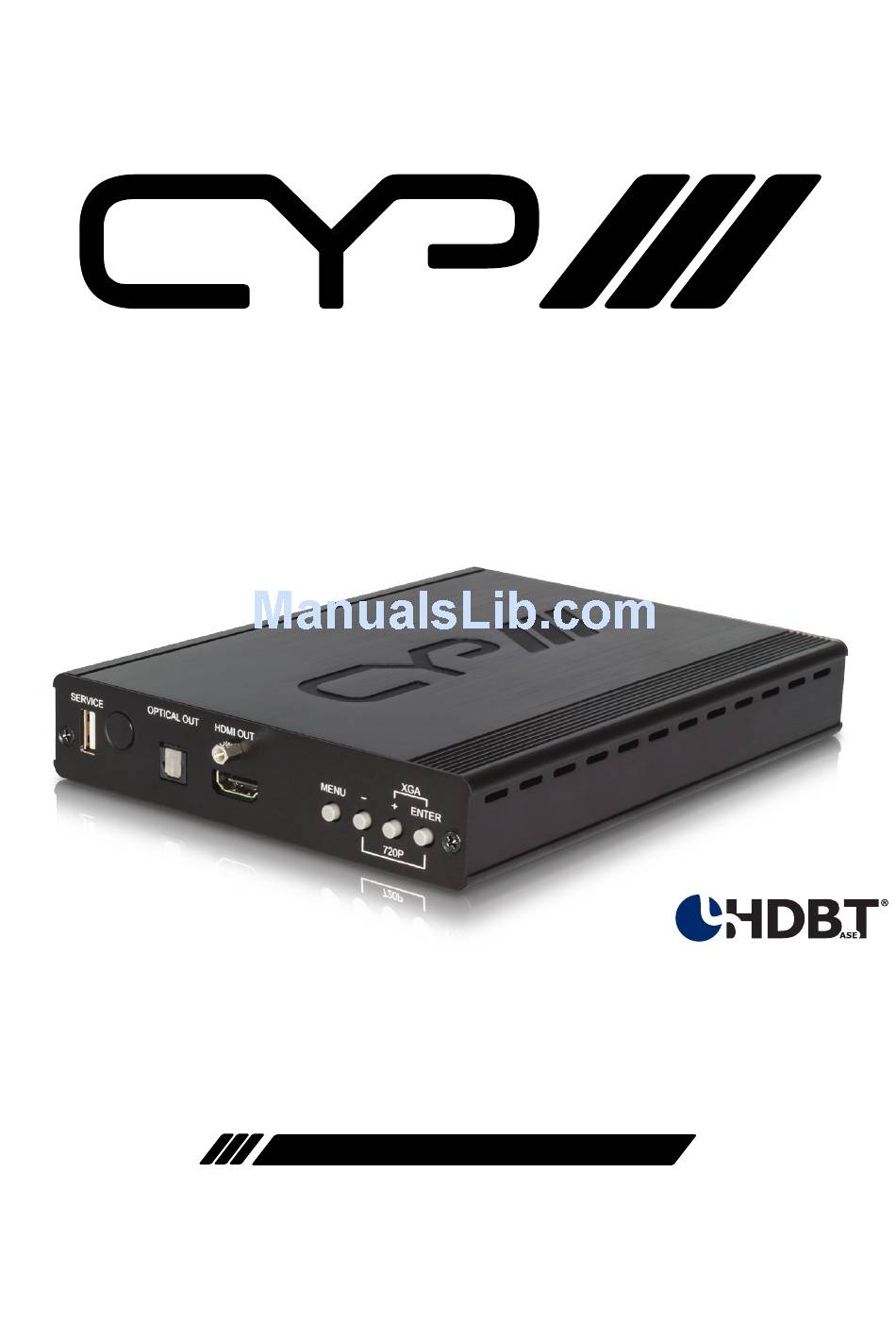

PU-507RX-SCD
5-Play™ HDBaseT™ Receiver with Integrated Video Scaling
& Audio Breakout (inc. PoE & single LAN, up to 100m) -
Stereo Audio only
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-507RX-SCD and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PU-507RX-SCD

Summary of Contents for CYP PU-507RX-SCD

  • Page 1 PU-507RX-SCD 5-Play™ HDBaseT™ Receiver with Integrated Video Scaling & Audio Breakout (inc. PoE & single LAN, up to 100m) - Stereo Audio only OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment .......10 6.4 D-Sub 9 Pin Definitions ......10 6.5 Remote Control ........11 6.6 OSD Menu ..........12...

  • Page 6: Introduction

    1. INTRODUCTION The PU-507RX-SCD Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. With full 5-Play convergence, this solution features RS-232, 2-way IR control functionality, and LAN serving over the same CAT5e/6/7 cable for transmission distances up to 100m.

  • Page 7: Features

    5. FEATURES Supports all v1.3 HDMI resolutions Supports uncompressed video/audio up to 10.2Gbps Video scaling ensuring maximum compatibility and optimum video resolution support. Supports Audio breakout via Optical output: Note: This device supports stereo audio input/output only. Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24;...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OUT HDMI OUT SERVICE MENU ENTER 720P SERVICE: Reserved for manufacturer use only. IR Receiver window: Receives only the IR signal from the supplied remote control. OPTICAL OUT: Connect to an amplifier or active speaker with an optical cable.

  • Page 9: Rear Panel

    6.2 Rear Panel DC 24V RS232 OUT CAT5e/6 IN Blaster Extender POWER MODE LINK Power LED: This LED will illuminate when the device is connected to an active power supply. DC 24V: Connect the 24 V DC power supply to the unit and plug the adaptor into an AC outlet.

  • Page 10: Ir Cable Pin Assignment

    6.3 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground 6.4 D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD...

  • Page 11: Remote Control

    6.5 Remote Control INPUT INPUT: Not functional EXIT:Press this button to exit the EXIT MENU menu or escape the current selection under OSD. ENTER MENU:Press this button to exit the menu or the current selection in the on-screen menu. RESET AUTO ADJUST RESET: Press this button to return the...

  • Page 12: Osd Menu

    6.6 OSD Menu Layer layer Layer DISPLAY Native 640x480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 OUTPUT 1600x1200 60 1920x1080 60 1920x1200 60 720x480p 60 1280x720p 60 1920x1080i 60 1920x1080p 60 720x576p50 1280x720p 50...
  • Page 13 Layer layer Layer OVER SCAN FULL ASPECT RATIO SIZE PAN SCAN LETTER BOX UNDER 2 UNDER 1 INFO MODE INFO COLOUR COLOUR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~60 MIDDLE HIGH...
  • Page 14 Layer layer Layer VOLUME 0~100 40mS DELAY AUDIO 110mS 150mS SOUND MUTE SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the default setting.

  • Page 15: Connection Diagram

    7. CONNECTION DIAGRAM Router with internet connection DVD Player RS-232 Control System 1.5m 60° RS-232 60° IR Extender IR Blaster Compatible RS-232 In Transmitter HDMI In Transmitter HDMI to CAT5e/6 with LAN/IR/RS232 CAT 5e/6/7 Up to 100m RS-232 Device DC 24V RS232 OUT CAT5e/6 IN Blaster...

  • Page 16: Specifications

    8. SPECIFICATIONS Ethernet Speed 100 Mbps Input Video Bandwidth 300 MHz /10.2 Gbps Output Video bandwidth 165 MHz /1.65 Gbps Input Ports 1×CAT5e/6, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster, 1×Optical , 1×RS-232, 1×LAN CAT5e/6 Output Cable Up to 100 Meters Distance HDMI output Resolution HD: Up to 1080p@60Hz...

  • Page 17: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking)
  • Page 18 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
