- Page 1 PU-607BD-RX HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-directional PoC Receiver (full 5Play™ & Single LAN up to 100m) OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver Front and Rear Panels .... 8 6.2 IR Cable Pin Assignment ......9 6.3 D-Sub 9 Pin Definitions ......9 7. -
Page 6: Introduction
1. INTRODUCTION The PU-607BD-RX Receiver can receive uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. -
Page 7: Features
5. FEATURES HDMI 1.x and DVI 1.0 compliant HDCP compliant Supports HDMI 3D and 4K x 2K features Supports HDCP repeater and CEC bypass Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz (YUV 4:4:4, 8-bit) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI... -
Page 8: Operation Controls And Functions

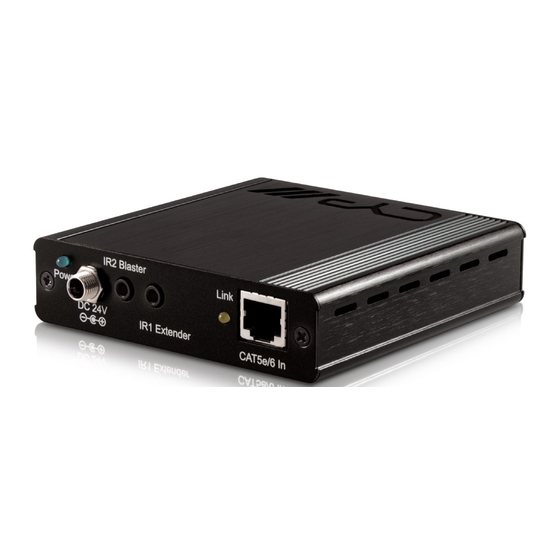

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power DC 24V IR1 Extender HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection. -
Page 9: Ir Cable Pin Assignment
6.2 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Ground 6.3 D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Internet Modem or Router DVD or Blu-ray Player RS-232 Equipped PC or Notebook HDMI Input Serving 1.5m 60° RS-232 Blaster Power Supply RS-232 In Transmitter HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster 60° Power DC 24V IR2 Extender Extender Single... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Ethernet Speed 100 Mbps Transmitter Input Ports × × HDMI, 1×LAN, 1 IR Extender,1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×LAN, 1× IR Blaster, 1×RS-232 IR Frequency 30 –... -
Page 12: Cable Specifications
8.2 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared Power over Cable... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
