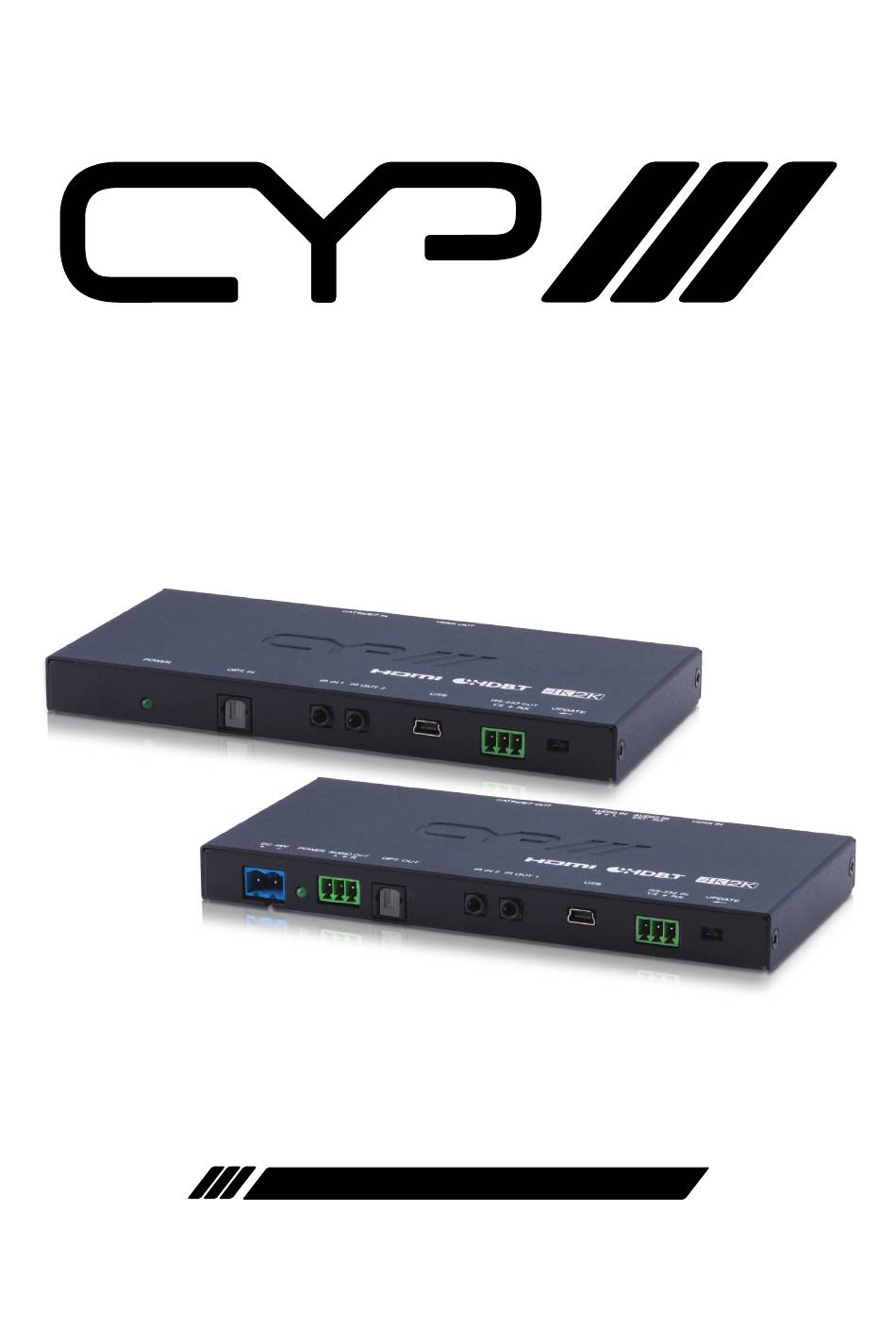

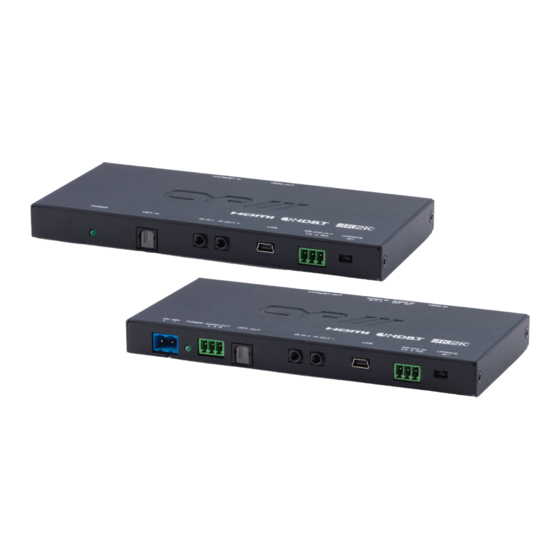

- Page 1 PUV-1230PL-KIT HDBaseT1 LITE Transmitter & Receiver Set with OAR & PoH OPERATION MANUAL...
- Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......2 5. Features ............. 2 6. Operation Controls and Functions ..3 6.1 Front Panel of Transmitter ......3 6.2 Rear Panel of Transmitter ......4 6.3 Right Side Panel of Transmitter ....4 6.4 Front Panel of Receiver ...... -
Page 6: Introduction
1. INTRODUCTION The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 metres . Multi- control interfaces are available which includes IR, RS-232 and USB connection. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS Input source equipment such as PS3/Blu-ray player and output HD TV/ display. 5. FEATURES HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant HDMI with 3D, 4K2K support and DVI Compliant 6G HDMI video (3840x2160 YUV444) input is supported Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m /196.8 ft at 1080p and 35m/115ft at 4K2K 4Play™... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel of Transmitter DC 48V POWER AUDIO OUT OPT. OUT IR IN 2 IR OUT 1 SERVICE RS-232 UPDATE DC 48V: Plug the 48V DC power supply into the unit. Please do follow the label on adapter to connect the black cable to ground pin of connector. -
Page 9: Rear Panel Of Transmitter
6.2 Rear Panel of Transmitter CAT5e/6/7 OUT AUDIO IN AUDIO IN HDMI IN EXT INT CAT5e/6/7 Out: Connects to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals includes power. Audio In: This phoenix connector allowing connect to analogue audio devices such as DVD players. - Page 10 Dipswitch Selection for EDID: Mode Number Dipswitch Number Internal Mode 0000 1000 0100 1100 0010 1010 User Mode 0110 1110 0001 1001 0101 1101 0011 1011 0111 Native Mode 1111 EDID Detail Information: 1) Internal Mode: 1.
- Page 12 4) EDID Upload Steps For User Mode 1. Connects PC USB to mini-USB service port of Transmitter 2. Arranging dipswitch to exactly mode to upload (mode 7 to 15 allows user to upload EDID) 3. Open EDID tool “CDPS 2016” and click “Search” button...
- Page 13 4. Move mouse courser and click left button at following position to generate another working window...
- Page 14 5. Following window will be generated, please click file icon...
- Page 15 6. Select EDID bin file to upload and EDID completes upload.
-
Page 16: Front Panel Of Receiver
6.4 Front Panel of Receiver POWER OPT. IN IR IN 1 IR OUT 2 RS-232 UPDATE Power LED: This power LED will illuminate when receiving the power from transmitter. OPT. In: Connects with optical audio source as optical audio return which allowing audio transmit to Transmitter. -
Page 17: Rear Panel Of Receiver
6.5 Rear Panel of Receiver CAT5e/6/7 IN HDMI OUT CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals and power. HDMI Out: Connects to HDMI sink equipment such as a display. 6.6 IR Cable Pin Assignment IR Blaster Power... -
Page 18: D-Sub 9 Pin Definitions
6.7 D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 19: Specifications
7. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Transmitter Input Ports 1 x HDMI 1 x Audio In slide switch 1 x Audio In connector 1 x IR In 2 Output Ports 1 x Optical Out 1 x Audio Out 1 x CAT5e/6/7 1 x IR Out 1 x IR Out 1 Other... - Page 20 HDMI Cable Distance In: 10m/1080p@8-bit or 12-bit and 5m@4K2K Out:10m/1080p@8-bit or 12-bit and 5m@4K2K CAT5e/6/7 Cable Up to 60m Distance RS232 Baud Rate Up to 115200 bps IR Frequency 30~50kHz ESD Protection Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (W×H×D) 78mm×16mm×163mm [Excluded jacks] 78mm×16mm×183mm [Included rack ears]...
-
Page 21: Cat5E/6/7 Cable Specification
7.1 CAT5e/6/7 Cable Specification Cable Type Range Supported Video CAT5e/6 60 meters Full HD formats: • Up to 1080,60Hz,36bpp CAT6a/7 70 meters • Data rates lower than 5.3 Gbps or below 225 CAT5e/6 35 meters Ultra HD video formats: • Deep colour:1080p,60Hz,48bpp CAT6a/7 40 meters •... -
Page 22: Hdbt Features
7.3 HDBT Features HDBase T Feature Support or Not Video & Audio Support Support RS232 Support Send power to Transmitter Send power to Receiver Support... -
Page 23: Connection And Installation
8. CONNECTION AND INSTALLATION Active Speakers Extender Blaster Analogue RS-232 Stereo 1.5m 60° Output 60° DVD/Blu-ray Player HDMI Input RS-232 CAT5e/6/7 Cable DVD/Blu-ray Player Amplifier Power Optical Digital Output Supply HDMI Digital Outputs RS-232 60° 60° 1.5m Blaster Extender RS-232 Controlled Device Smart TV with Optical Digital Output... -
Page 24: Acronyms
HDMI High-Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
