Summary of Contents for CYP PU-305BDA-TX

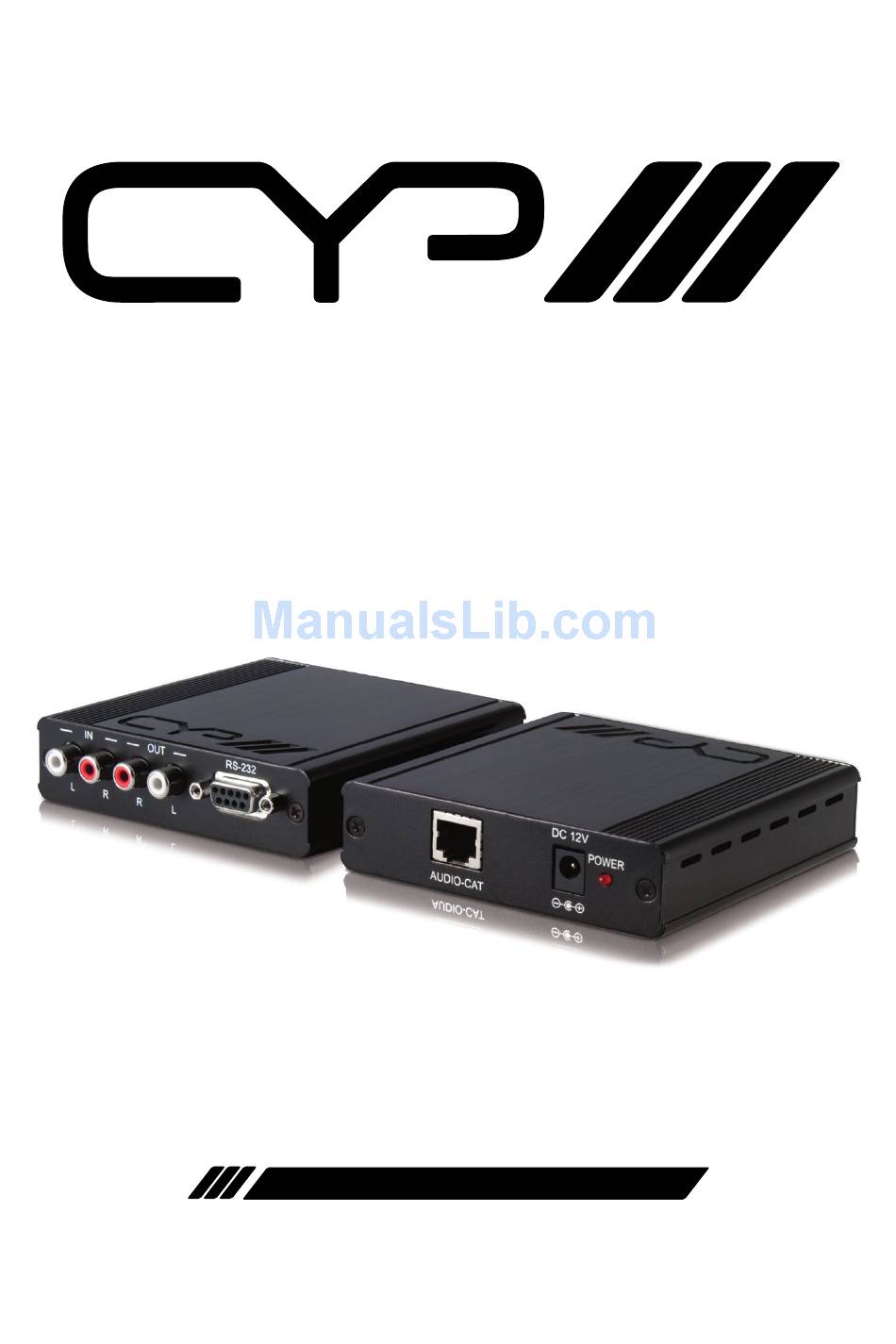

- Page 1 PU-305BDA-TX & RX Bi-Directional Analogue Audio over Single CAT Transmitter/Receiver OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel (TX/RX) ........7 6.2 Rear Panel (TX/RX) ........8 6.3 RS-232 Pin Definition ....... 8 7. -
Page 6: Introduction

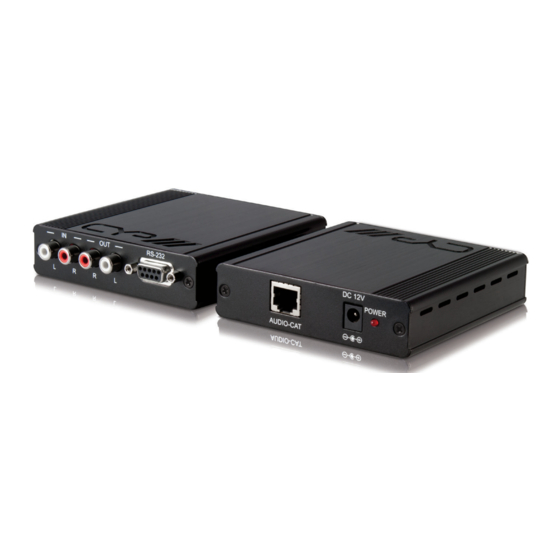

1. INTRODUCTION The PU-305BDA-TX/RX is an analogue Stereo over CAT5e/6/7 Transmitter and Receiver which can send and receive analogue audio signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the Power over Ethernet (PoE) function can power the receiver unit eliminating the need for a second power supply. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel (TX/RX) RS-232 L/R IN: Connect to analogue audio source such as DVD/Blu-ray player, Set-Top Box or game console. The audio will be output from the AUDIO OUT on the receiver unit. L/R OUT: Connect to an audio output device such as an amplifier with an analogue audio input or active speakers. -
Page 8: Rear Panel (Tx/Rx)
6.2 Rear Panel (TX/RX) DC 12V POWER AUDIO-CAT AUDIO-CAT: Connect the AUDIO-CAT output to the AUDIO-CAT input of the receiver unit using a single CAT5e/6/7 cable. DC 12V: Connect the unit to the supplied adaptor and plug into an AC wall outlet for power supply. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM... -
Page 10: Specifications
8. SPECIFICATIONS Transmitter 1 × Analogue Stereo (2-RCA), 1 × RS-232 Inputs 1 × Analogue Stereo (2-RCA), 1 × AUDIO-CAT Outputs Receiver 1 × Analogue Stereo (2-RCA), 1 × AUDIO-CAT Inputs 1 × Analogue Stereo (2-RCA), 1 × RS-232 Outputs Audio Formats Analog Stereo 2CH Output Level... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
