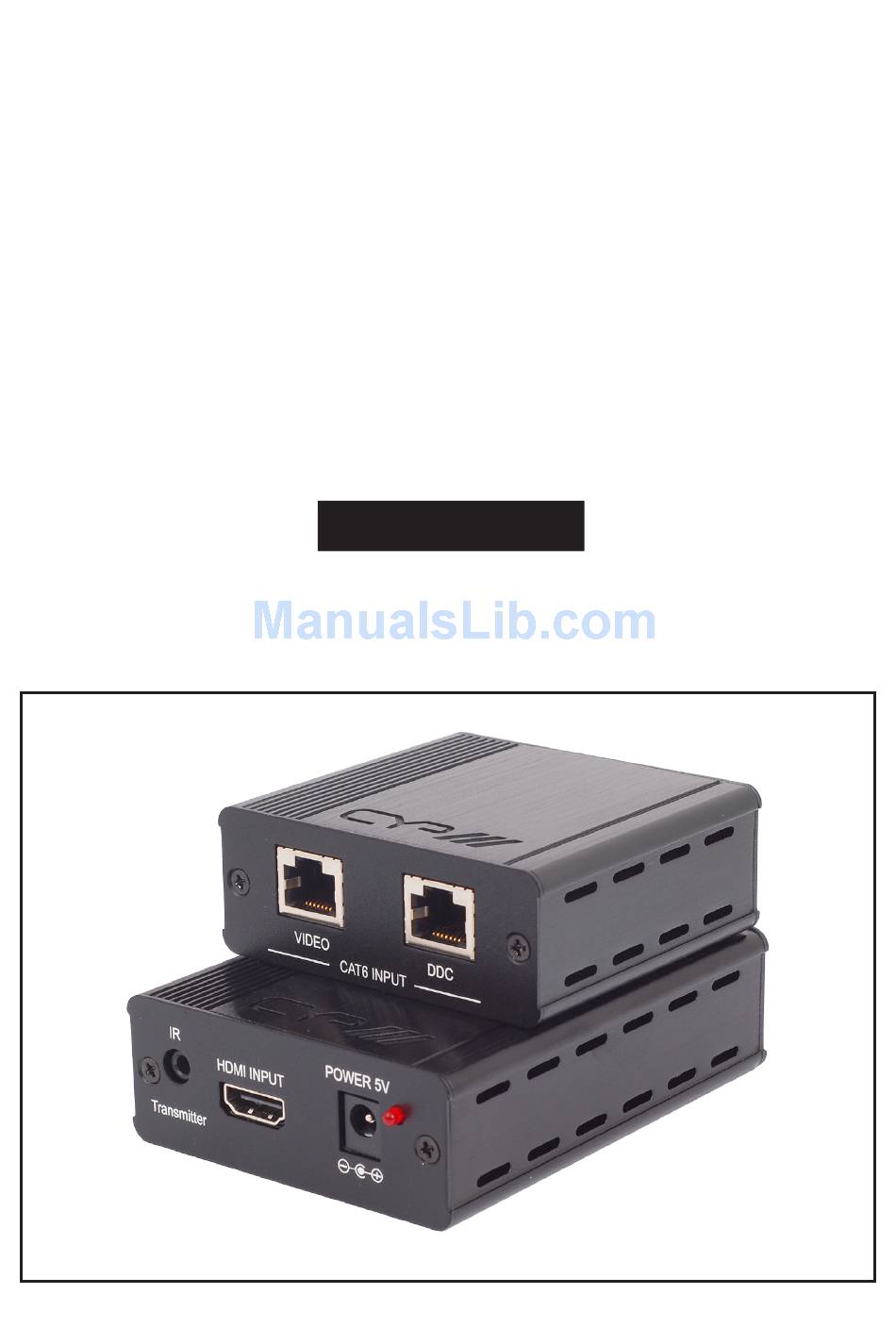

  • Page 1 PU-1106 HDMI v1.3 to CAT6 Transmitter & Receiver with IR return control Operation Manual PU-1106...
  • Page 2: Safety Precautions

    Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:  Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 3: Table Of Contents

    Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifi cations ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Pin Assignment ......……………..…..…..…... IR Cable Pin Assignment ............RJ-45 Pin Defi nitions ..............Connection and Installation ….…………………..…..…..…..
  • Page 4: Introduction

    1. Introduction The HDMI 1.3 transmitter and receiver over CAT6 is an extension tool for your long distance HDMI display needs. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can replace HDMI cables while performing the same functions like transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, at a bandwidth of up to 225MHz.
  • Page 5: Features

    5. Features Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards  Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/  color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio Supports CAT-6 cables for data/DDC transmission ...
  • Page 6: Specifi Cations

    6. Specifi cations Transmitter 1 x HDMI 1 x IR Blaster 1 x CAT-6 Output Video 1 x CAT-6 Output DDC Receiver 1 x HDMI 1 x Receiver 1 x CAT-6 Input for Video, 1 x CAT-6 Input for DDC HDMI Input Cable 1080p 8-bit (15M), 12-bit (15M) HDMI Output Cable...
  • Page 7: Operation Controls And Functions

    7. Operation Controls and Functions 7.1 Front Panel CH-1106TX CH-1106RX POWER 5V POWER 5V HDMI INPUT HDMI OUTPUT Receiver Transmitter ① ② ③ ④ ⑤ ① IR Transmitter: This slot is where you connect the IR blaster cable and place the IR eye in front of the source equipment(s) for sending the IR signal to the source equipment(s), The IR blaster accepts the frequency range from 20KHz to 60KHz.
  • Page 8: Rear Panel

    Example: CAT6 CAT6 PU-1106TX PU-1106RX CH-1106TX CH-1106RX VIDEO VIDEO HDMI HDMI HDMI HDMI Cable Cable Cable Cable CAT6 CAT6 Player Player CAT6 CAT6 CH-1106TX CH-1106RX PU-1106TX PU-1106RX VIDEO HDMI VIDEO HDMI Cable Cable CAT6 CAT6 HDMI LCD TV HDMI LCD TV ⑤...
  • Page 9: Pin Assignment

    8. Pin Assignment 8.1 IR Cable Pin Assignment IR Blaster IR Receiver ① Power 5V ① IR signal ② NC ② Power 5V ③ IR blaster signal ③ Grounding ① ② ③ ① ② ③ 8.2 RJ-45 Pin Defi nition Video TMDS2+ TMDS2-...
  • Page 10: Connection And Installation

    ° °...
