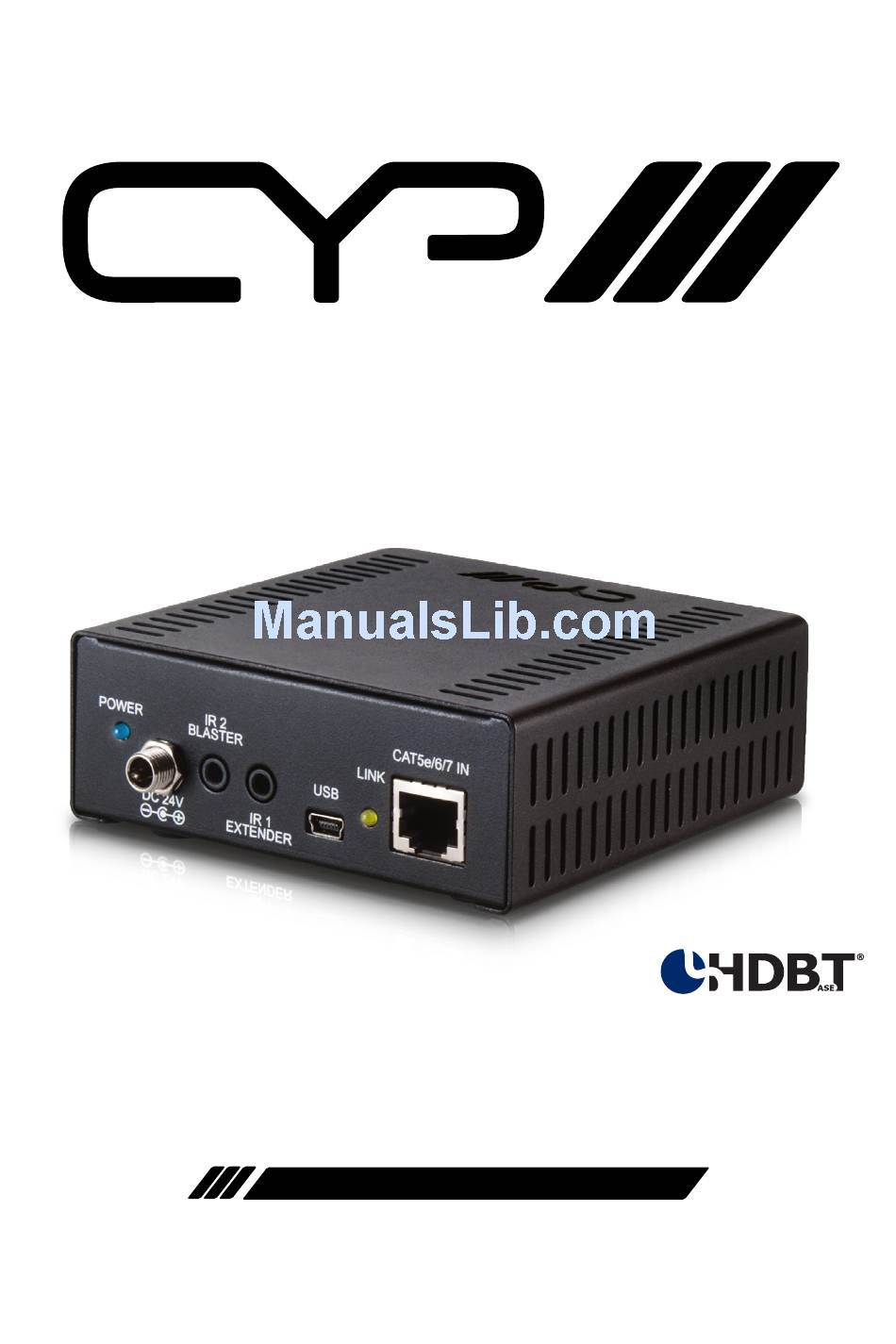

- Page 1 PU-507RX-2H 5-Play™ HDBaseT™ Receiver with dual HDMI outputs (inc. PoE & Single LAN, up to 100m) OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 D-Sub 9-Pin Definitions ......10 6.4 IR Cable Pin Assignment .......10 7. -
Page 6: Introduction
1. INTRODUCTION The PU-507RX-2H Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. -
Page 7: Features
5. FEATURES Supports all v1.4 HDMI resolutions plus 4k. Supports Dual HDMI Outputs Supports uncompressed video/audio up to 10.2Gbps ommon supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 OUT HDMI OUT 1 HDMI OUT 2 CAT5e/6 to HDMI with LAN/IR/RS232 Receiver HDMI OUT 1 & 2: Connect to HDMI displays for instant image display or cascade with another family type Transmitter. LAN: Connect to intra-net or internet service system for a total sharing rate of 100Mbps within the link of Receiver. -
Page 9: Rear Panel

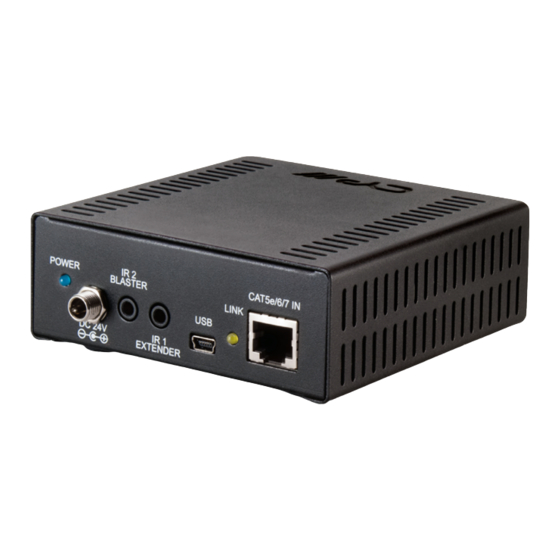

6.2 Rear Panel IR 2 POWER BLASTER LINK IR 1 DC 24V EXTENDER CAT5e/6 IN POWER LED: Once the power supply is connected the LED will illuminate. DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: D-Sub 9-Pin Definitions
6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x CAT5e/6/7, 1 x IR Extender, 1 x LAN, 1 x USB (Service only) CAT5e/6/7 Input Cable up to 100 Meters Distance Output port 2 x HDMI, 1 x RS-232, 1 x Blaster, HDMI Output Cable Distance Resolution... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840x2160 / 4096x2160 Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
