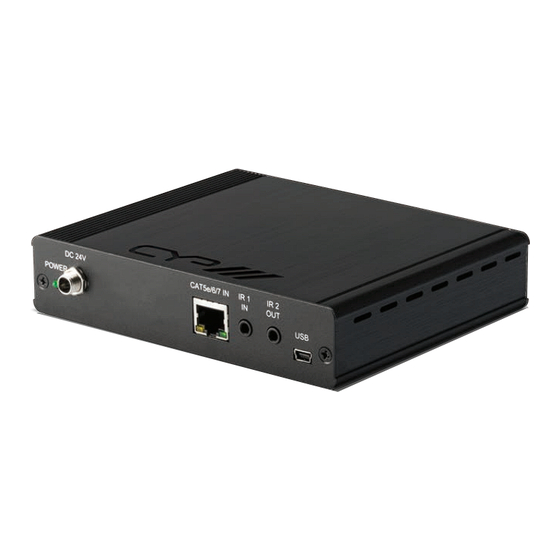

- Page 1 PU-515PLRX-2HCD HDBaseT™ LITE Receiver with dual HDMI output, Audio De-embedding, PoC, RS-232 & 2-way IR (up to 60m) OPERATION MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignments ....4 6.4 D-Sub 9 Pin Defi... -
Page 4: Introduction
1. INTRODUCTION The PU-515PLRX-2HCD Receiver allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Cable (PoC), RS-232 and 2- way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. - Page 5 5. FEATURES • HDCP 2.2 Compliant • HDMI, HDCP, & DVI compliant • Supports uncompressed video/audio up to 10.2Gbps • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings •...
-
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V CAT5e/6/7 IN IR 1 IR 2 POWER Power LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 7: Rear Panel
6.2 Rear Panel COAXIAL RS-232 HDMI OUT 1 HDMI OUT 2 Balanced Analog R/L OUT: Connect to an amplifi er or active speaker with 3.5mm terminal block jack for audio output. COAXIAL OUT: Connect to an amplifi er or active speaker with coaxial cable for audio output. -
Page 8: D-Sub 9 Pin Defi Nition
6.4 D-Sub 9 Pin Defi nition Defi ne TX/RX TxD / RxD RxD / TxD... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Compatible Transmitter IR2 Blaster Power IR1 Extender 1.5m 60° 60° DC 24V CAT5e/6/7 IN IR 1 IR 2 POWER COAXIAL RS-232 HDMI OUT 1 HDMI OUT 2 Digital Audio RS-232 Equipped Output (Optical) PC or Notebook Smart TV or Game Console... -
Page 10: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Input Ports 1x CAT5e/6/7, 1 x IR Extender Output Ports 2 x HDMI, 1 x Coaxial, 1 x Balanced Analog (R/L), 1×IR Blaster, 1 x RS-232 CAT5e/6/7 Output Cable Up to 60 Meters Distance HMDI Input/Output Up to 10 Meters@1080p or 5Meters@4K2K... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT 5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV2...
