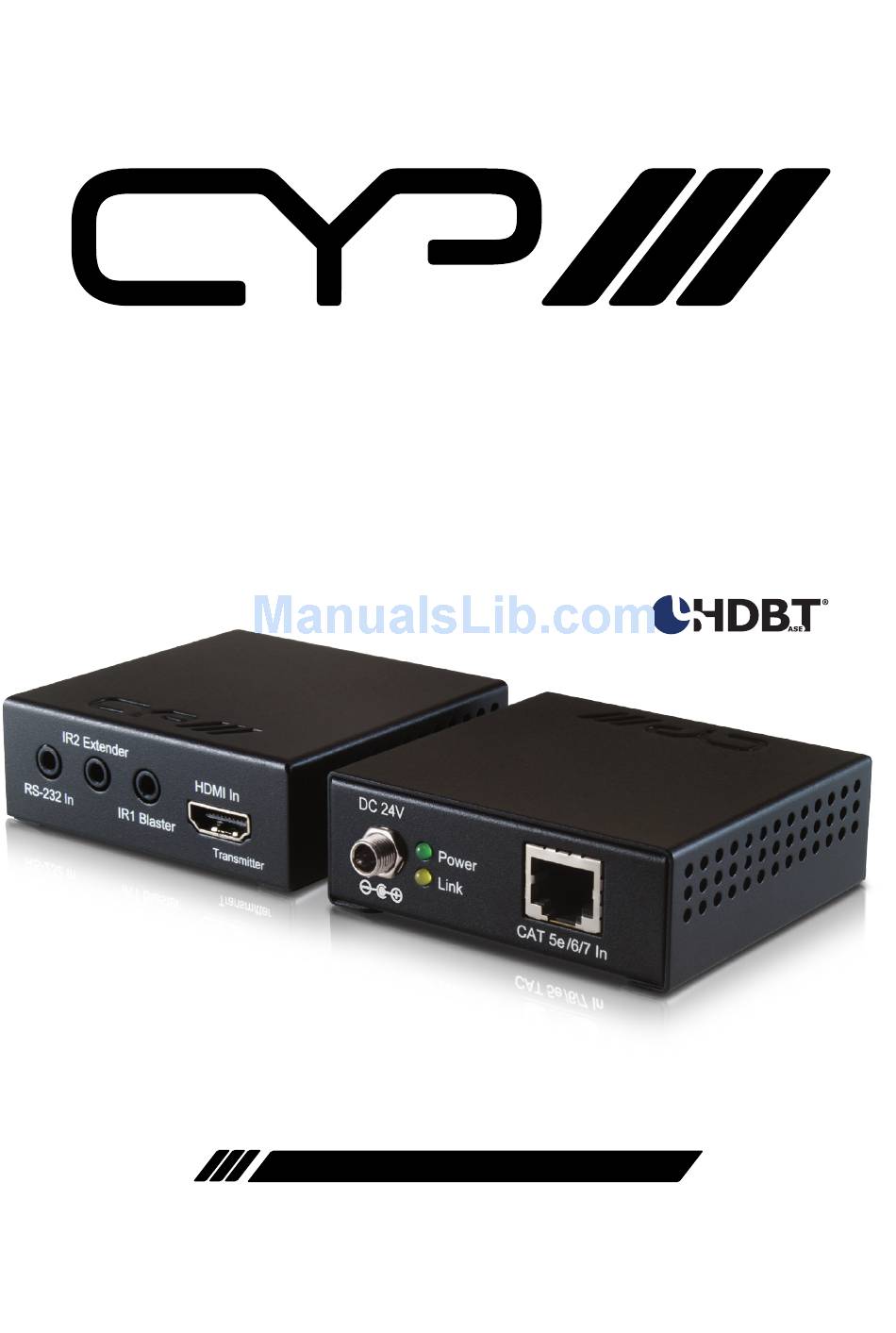

  • Page 1 PU-606PLBD-TX & RX HDBaseT™ LITE Receiver with Bi-directional PoE & 2-Way IR (up to 60m) OPERATION MANUAL...
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 IR Pin Assignment ........10 6.4 D-Sub 9 Pin Definitions ......10 7.
  • Page 6: Introduction

    1. INTRODUCTION The HDBaseT-Lite HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set gives you the fexibilty of powering at the most convenient point (transmitter or receiver) making your home or office set-up more efficient and easier to install.
  • Page 7: Features

    5. FEATURES Compatible with HDCP and DVI Supports HDMI 3D and 4K x 2K features Supports HDBaseT-Lite Technology Supports HD resolutions up to 1080p@60Hz/36-bit Supports distance up to 60 meters through CAT5e/6/7 cable Supports bidirectional IR and PoC HDMI input/output up to 15 meters with 8-bits resolution or 10 meters with 12-bits resolution S-232 with baud rate up to 115200/sec Supports wide range of IR frequency from 30~50kHz...
  • Page 8: Operation Controls And Functions

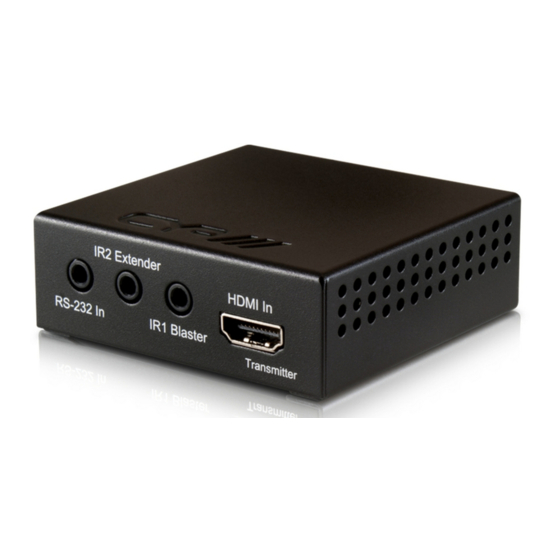

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 24V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster Lite CAT 5e /6 Out RS232 In: Plug the 3.5mm to D-Sub 9-pin female cable included in the package and connect to a PC or laptop for RS-232 commands transmission.
  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels Rear Front DC 24V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster Lite CAT 5e /6 In DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. Only 1 side of device require power supply when both Transmitter and Receiver obtain PoC function.
  • Page 10: Ir Pin Assignment

    6.3 IR Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Ground 6.4 D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD...
  • Page 11: Connection And Installation

    7. CONNECTION AND INSTALLATION DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS-232 In IR1 Blaster Transmitter Power Link CAT 5e /6/7 Out Single CAT5e/6 Cable...
  • Page 12: Specifications

    7. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340MHz/10.2Gbps Transmitter Inputs 1 x HDMI, 1 x IR Extender, 1 x RS-232 Outputs 1 x RJ45, 1 x IR Blaster Receiver Inputs 1 x RJ45, 1 x IR Extender Outputs 1 x HDMI, 1 x IR Blaster, 1 x RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge)
  • Page 13: Cat5E/6/7 Cable Specification

    8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock).
  • Page 14: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared...
