Summary of Contents for CYP CUSB-603

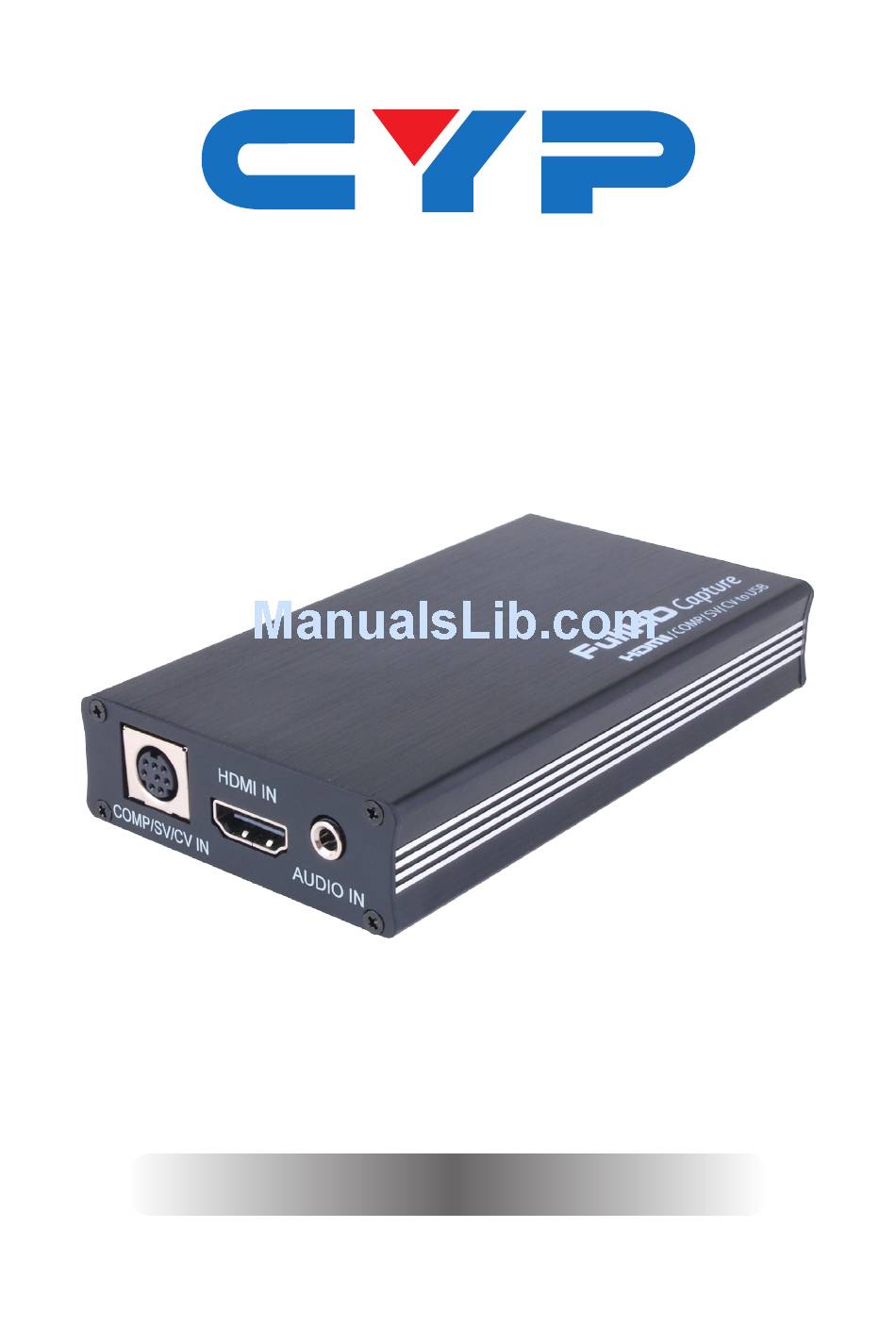

  • Page 1 CUSB-603 HDMI/COMP/SV/CV to USB FullHD Capture Operations Manual Operations Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ........... 1 2. Applications ..........1 3. Package Contents ........1 4. System Requirement ........1 5. Features ............2 6. Specifications ..........2 7. Operation Controls and Functions ....3 7.1 Front Panel ..........3 7.2 Rear Panel ..........4 8.
  • Page 5: Introduction

    1. INTRODUCTION CUSB-603 is High Definition capture box supports HDMI 1080p video/ component/SV/CVinput and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products.
  • Page 6: Features

    5. FEATURES • FullHD capture HDMI/COMP/SV/CV to USB • H.264/MPEG4-AVC High Definition encoder • Video input supports: 1920 x 1080i/p, 1280 x 720p, 576i/p, 720 x 480i/p • Supports MPEG-4 Advanced Audio Coding (AAC) • 48 KHz audio sampling frequencies •...
  • Page 7: Operation Controls And Functions

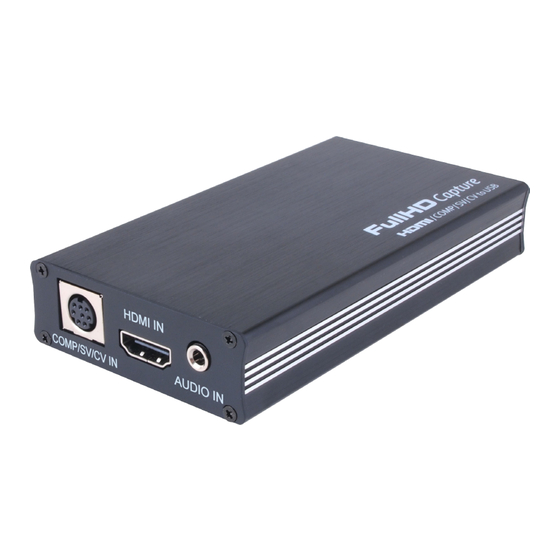

    7. OPERATION CONTROLS AND FUNCTIONS 7.1 Front Panel HDMI IN AUDIO IN COMP/SV/CV IN COMP/SV/CV IN This slot is to connect with Composite video/S-Video/Component video input source equipment such as Set-Top-Box or DVD with 8 pins cable. HDMI IN This slot is where you plug your input source equipment with HDMI cable for input signal sending.
  • Page 8: Rear Panel

    7.2 Rear Panel POWER This slot is where you plug the mini USB cable and connect it to the PC/NB for data upstream and power. Power LED This LED will illuminate when the device is connected. 8. INSTALLATION The following sections list the procedures to follow when installing the HDMI/COMP/SV/CV to USB Full HD Capture.
  • Page 9 A Wizard dialogue will appear, click” Yes”, and click “Next” to continue the installation. Insert the CD driver included in the package now and tick on “Install the software automatically” then click “Next”.
  • Page 10 Another dialogue will appear as below. Tick “Search” and click on “Next” to continuing the installation. Allowing the Wizard to search and find the proper installation file for a while and click “Finish” to complete the installation.
  • Page 11: Software Installation

    8.2 Software Installation Download “DivXInstaller.exe” from the website: http://www.divx.com/ en/software/divx-plus and click on the “FREE DOWNLOAD” to install it. Run and click the “AUTORUN.EXE” in your CD root directory and click on PL 330 to install. The setup dialogue of PL330 will appear, click “Next” to continue the setup.
  • Page 12 Allowing the setup to process for few moments and select a destination location for saving the PL 330’s folder. Users are free to set the destination location and it is recommended to save it under the easy finding place. Click “Install” to confirm the installation.
  • Page 13 Click “Finish” again to complete the PL330’s installation. Then click on Exit to finish the installation. Cypress PL330’s icon should appear on the desk.
  • Page 14 Double click on the Cypress PL330 to set the configuration of HDMI/ COMP/SV/CV to USB FullHD Capture. Select CUSB-603 and click on “OK”. Select your AV system of NTSC or PAL, language and Video type then click on “OK”.
  • Page 15: Dvr Panel's Functions

    A DVR player will appear on the screen. 9. DVR PANEL’S FUNCTIONS Power Click this button to exit the application. Minimize Click this button to minimize the control panel. Record Click this button to save the video file. Play Click this button to play the video file from the recorded file. Pause Click this button to pause the video.
  • Page 16 Vol down Click this button to volume down the sound. Source Click this button to select the source input from the HDMI/COMP/ CV/SV input connection. Video Setup Click this button to set the video and audio’s parameter. A dialogue will appear as below, please set the parameter accordingly.
  • Page 17: Connection Diagram

    Mute Click this button to mute the audio. Snapshot BMP Click this button to save the still image as the BMP or JPEG file. Help Click this button to enable the online help tool. 10. CONNECTION DIAGRAM HD Media Player Set-top box HD Camera HDMI/COMP/SV/CV Cable...
  • Page 18: Acronyms

    11. ACRONYMS ACRONYM COMPLETE TERM COMP Component Composite Video Dynamic Data Exchange HDMI High-Definition Multimedia Interface Universal Serial Bus...
  • Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
